Service and Repair Manual Product description
Technical description

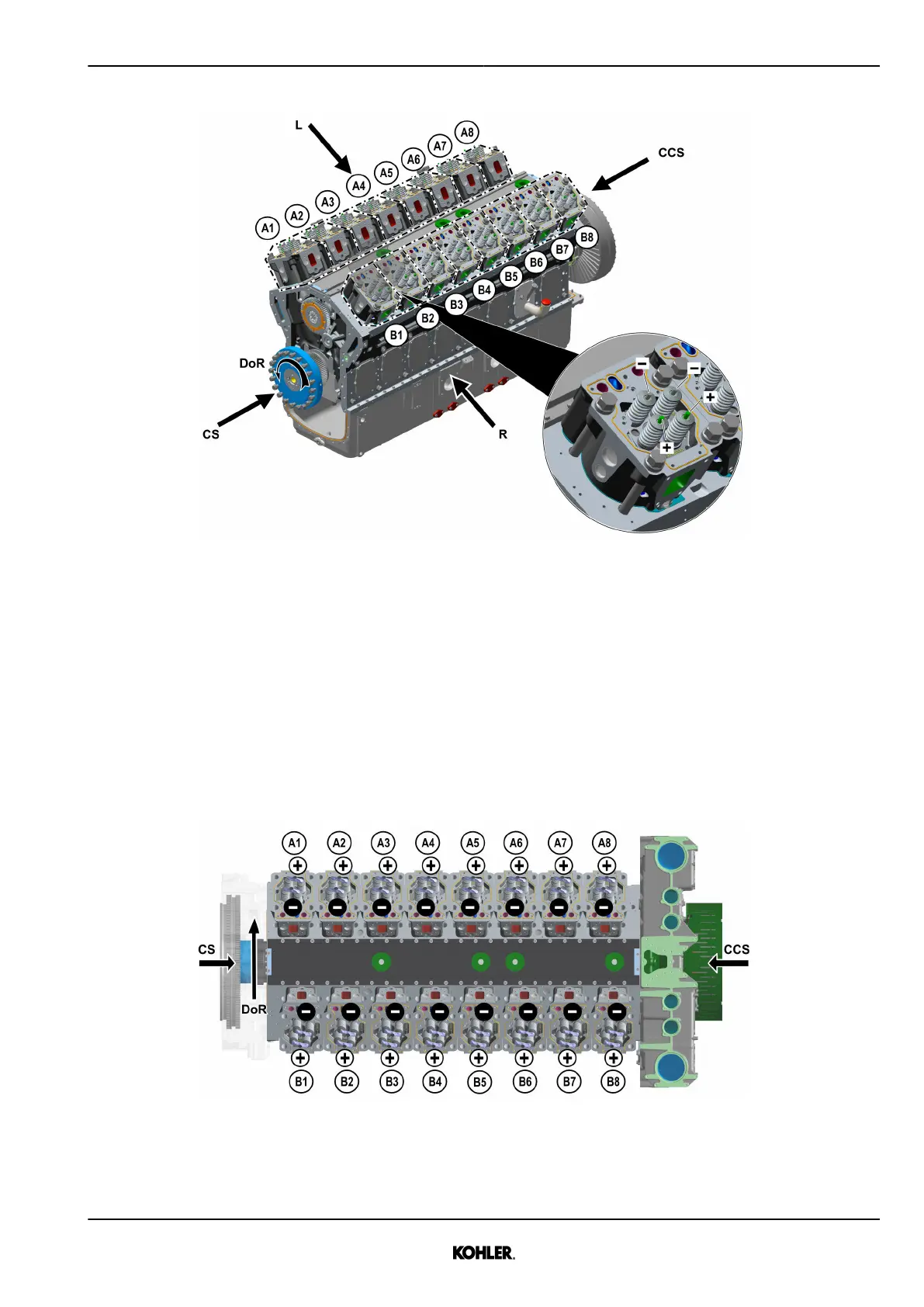

Fig. 4: Cylinder designation - direction of rotation according to ISO 1204
A1-A8 Series of cylinders – Bank A - Exhaust valves
B1-B8 Series of cylinders – Bank B + Inlet valves
CS Engine rear (coupling/flywheel side) L Left engine side
CCS Engine front (counter-coupling/damper
side)
R Right engine side
DoR Direction of rotation
Firing order
Cylinder B6 is located on the engine right opposite the flywheel side.
The rotational direction is on the left-hand side as viewed towards the flywheel.
Fig. 5: Cylinder valves order
KD83V16 33525088901_2_1 EN_US
2021-07
