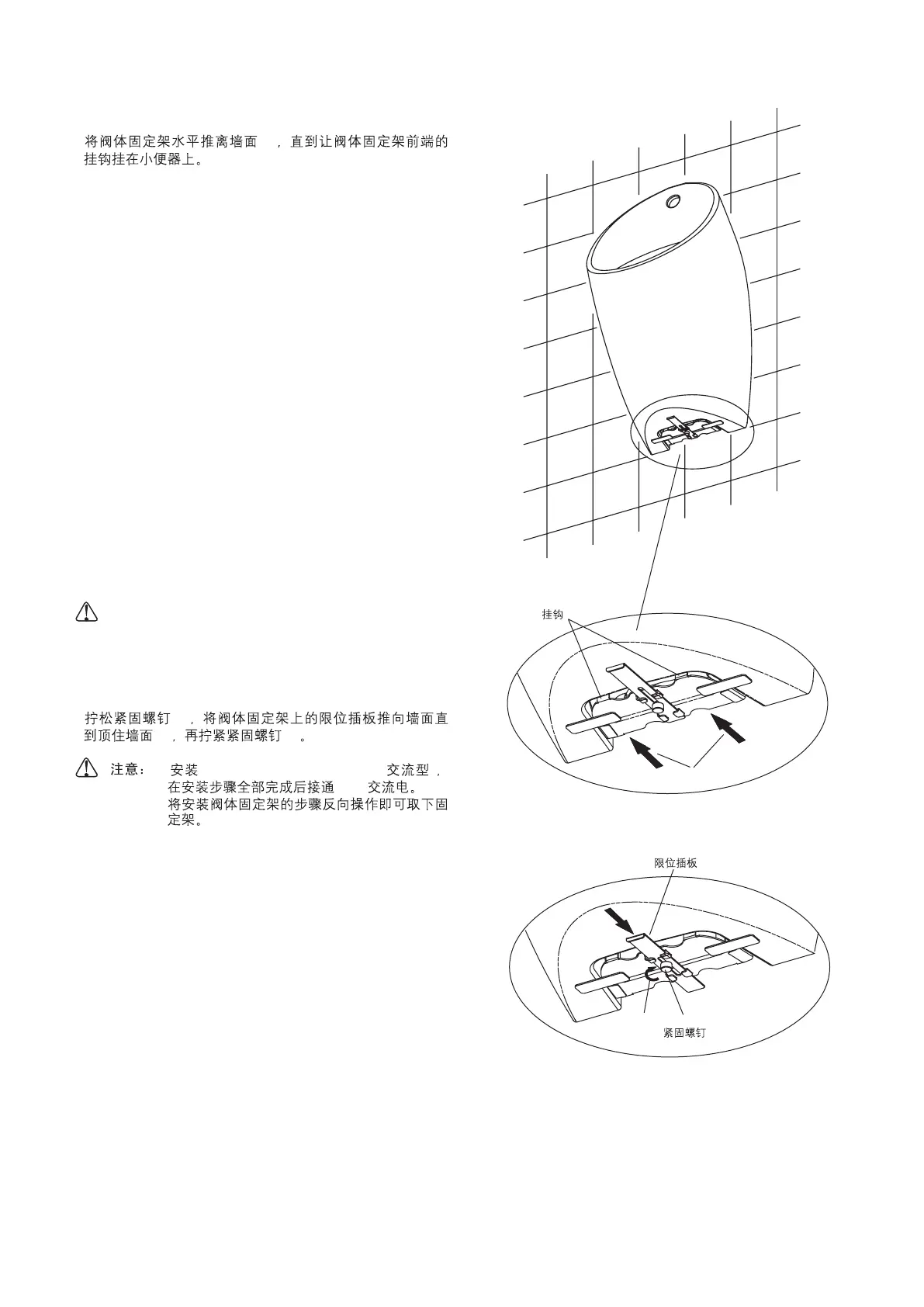

Push the bracket away from the wall(3), until the front hook
of the bracket hanging on the urinal.
(3)
D.
Note:
D.
Loose the tighten screw. Push the limited board to the
urinal withstanding the wall (4) and then tighten the tighten
screw (5).
a. When installing the 16320T-MC05/16321T-
MC05(AC), do not connect to power supply
until finish installation.
b. Taking out the bracket just need to athwort
the way of installations.
(5)
(4) (5)
a. 16320T-MC05/ ( )
220V
b.
16321T-MC05
Limited Board
(3)
(4)
(5)
Tighten Screw
Front Hook
