B
R
E
A
T
H
E
S
A
F
E
2
0
1
9
www.breathe-safe.com.au
Page
42
Issue date:
Controlled document:
Revision:
WA900-3EO

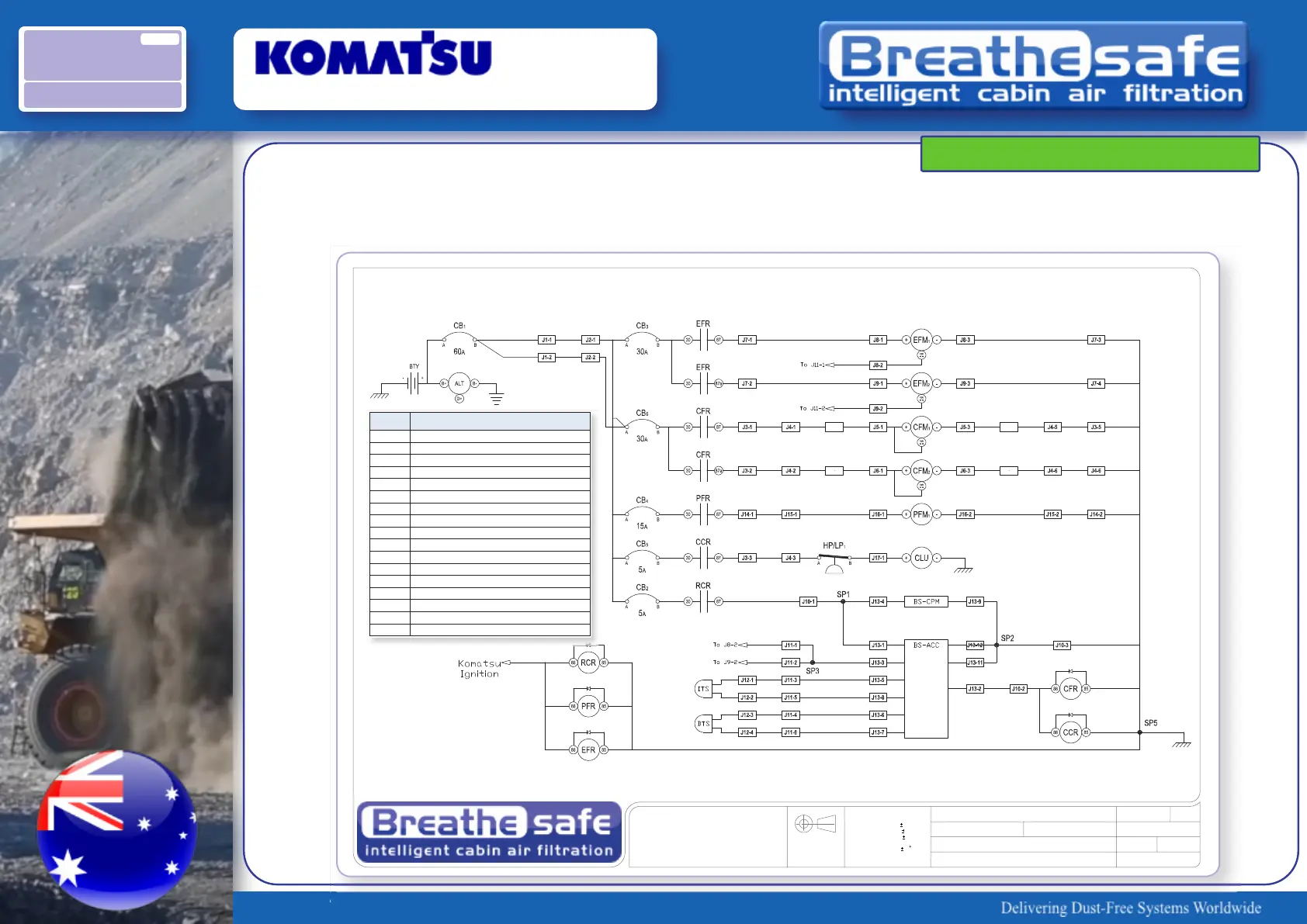

SYSTEM ELECTRICAL SCHEMATIC
SYMBOL DESCRIPTION
ALT ALTERNATOR
BS-ACC BreatheSafe - AIR CONDITIONING CONTROLLER
BS-CPM BreatheSafe - CAB PRESSURE MONITOR
BTY BATTERY
CCR COMPRESSOR CLUTCH RELAY
CFM CONDENSER FAN MOTOR
CFR CONDENSER FAN RELAY
CLU COMPRESSOR CLUTCH COIL
DTS DEFROST TEMPERATURE SENSOR
EFM EVAPORATOR FAN MOTOR
ERF EVAPORATOR FAN RELAY
HP/LP BINARY PRESSURE SWITCH
ITS INTERIOR TEMPERATURE SENSOR
PFM PRESSURIZER FAN MOTOR
PFR PRESSURIZER FAN RELAY
RCR RUN CONTROL RELAY
SP SPLICE POINT
FAULT DIAGNOSIS
