Connection
Hold
the tightening adapter part, and push body (2) straight un-
til sliding prevention ring (1) contacts contact surface (a) of the
hexagonal part at the male end.

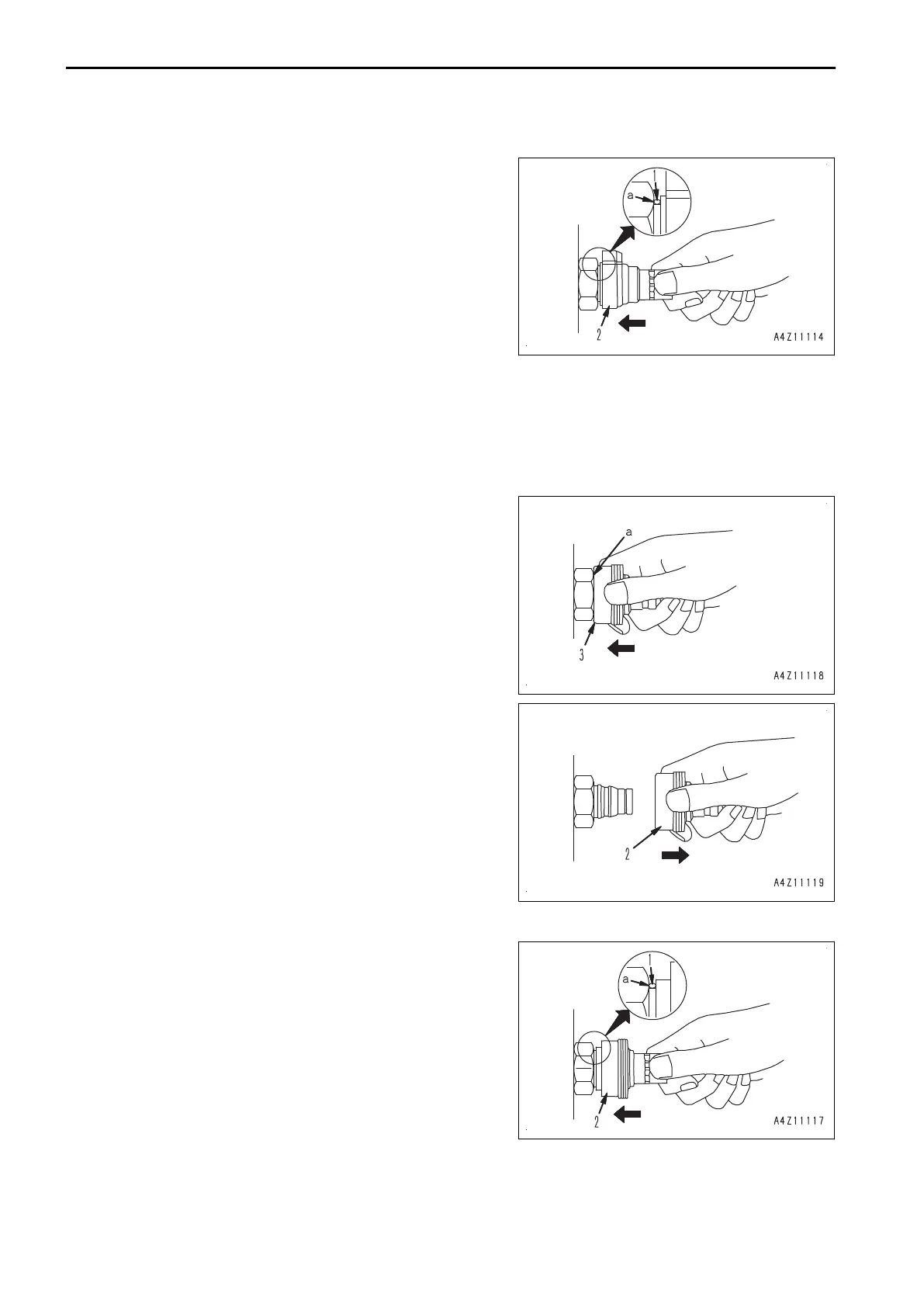

METHOD FOR DISCONNECTING AND CONNECTING TYPE 3 PUSH-PULL TYPE
COUPLER
Disconnection
1.
Hold the tightening adapter part and push body (2) straight until sliding prevention ring (1) contacts contact
surface (a) of the hexagonal part at the male end.
2.
While keeping the condition of step 1, push cover (3)
straight
until it contacts contact surface (b) of the hexago-
nal portion on the male side.
3.
While keeping the conditions of steps 1 and 2, pull out
whole body (2) to disconnect it.
REMARK
Provide
an container to receive a quantity of hydraulic oil
which may flow out.
Connection
Hold the tightening adapter part, and push body (2) straight un-
til sliding prevention ring (1) contacts contact surface (a) of the
hexagonal part at the male end.
DISCONNECT AND CONNECT PUSH-PULL TYPE COUPLER 00 INDEX AND FOREWORD
00-50 PC210LC-1
