METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK TYPE
CONNECT
OR

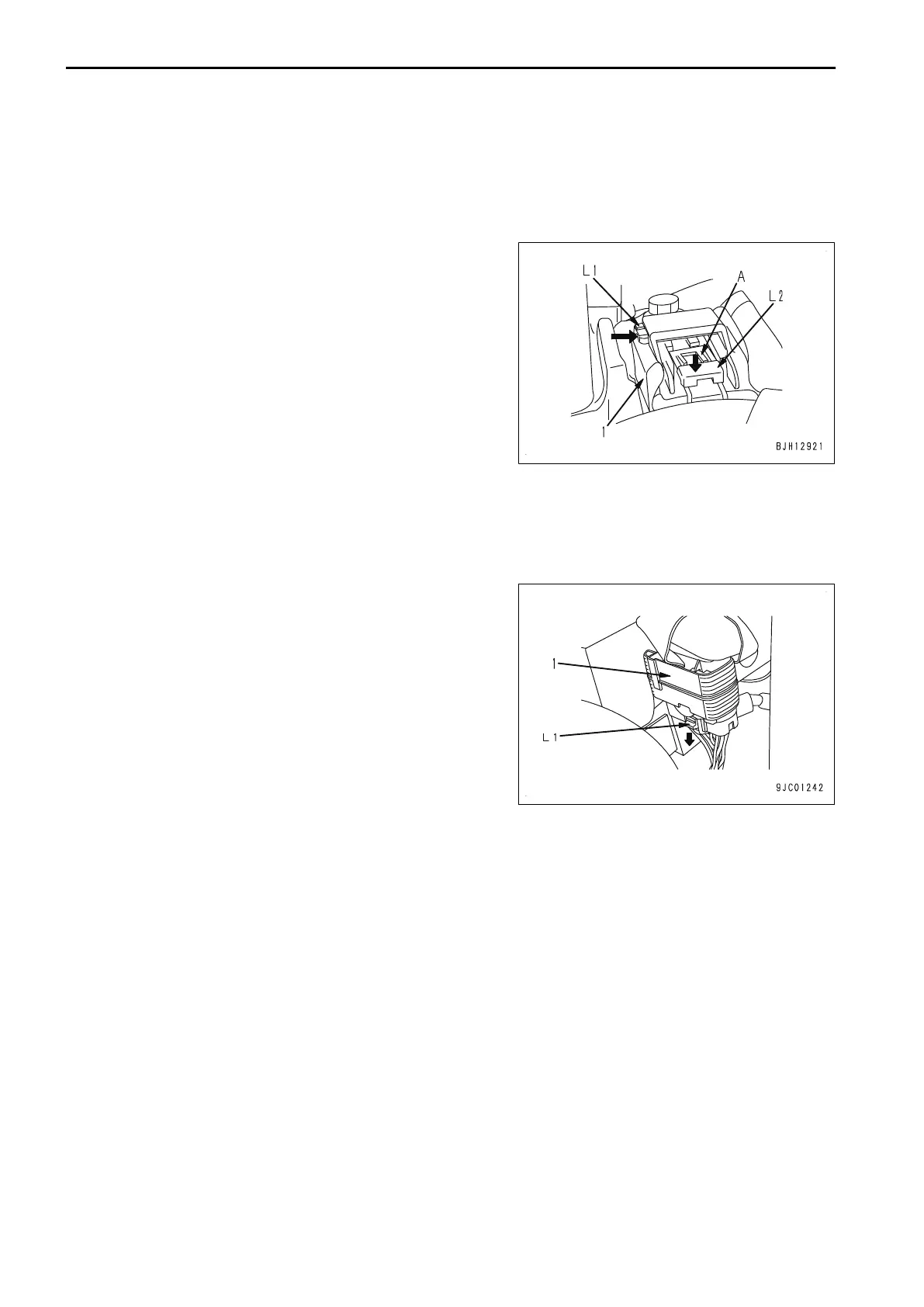

Method for disconnecting slide lock type connector (FRAMATOME-3, FRAMA-
TOME-2)
1.
Slide lock (L1) to the right.
2.
While pressing lock (L2), pull out connector (1) toward you.
REMARK
If
portion A does not float when lock (L2) is pressed, and if
connector (1) does not come out when it is pulled toward
you, push up portion A with a small flat-head screwdriver
while pressing lock (L2), and then pull out connector (1) to-
ward you.
Method for connecting slide lock type connector (FRAMATOME-3, FRAMA-
TOME-2)
Insert it straight until it clicks.
Method for disconnecting slide lock type connector (FRAMATOME-24)
1.
Slide down lock (red) (L1).
METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK
TYPE CONNECT
OR 00 INDEX AND FOREWORD
00-56 PC210LC-1
