METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH CONNEC-
T
OR

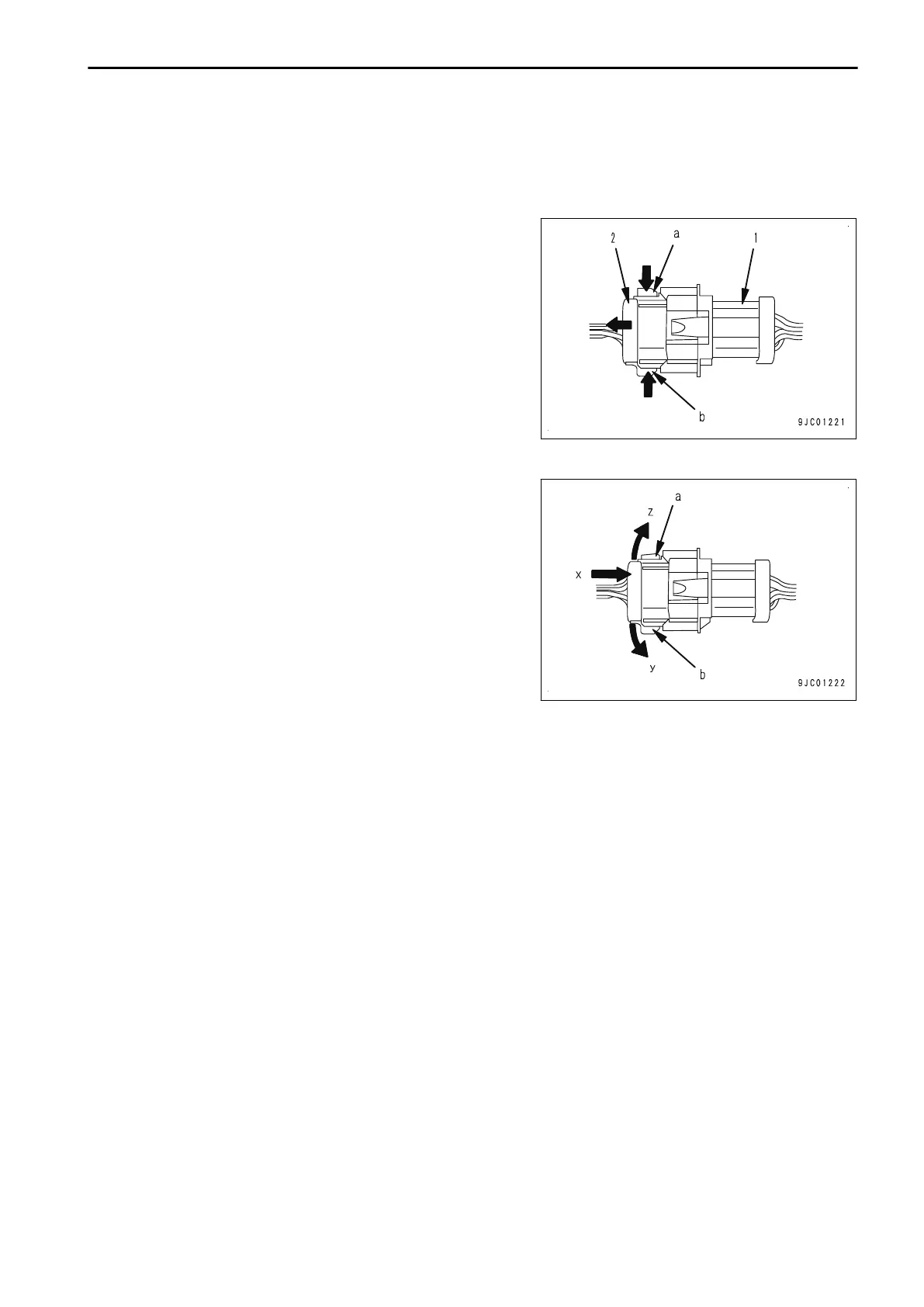

Method for disconnecting Deutsch connector
While pressing locks (a) and (b) from each side respectively,
pull out female connector (2).
Method for connecting Deutsch connector
1.
Push in female connector (2) horizontally, and insert it
straight until it clicks. (Arrow: x)
2.
In order to check whether locks (a) and (b) are completely
inserted,
insert female connector (2) by rocking it vertically
(in the arrow z direction). (Arrow: x, y, z)
REMARK
Lock (a) in the figure is pulled down (not set completely),
and lock (b) is set completely.
00 INDEX AND FOREWORD
METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH
CONNECT
OR
PC210LC-11 00-55
