4-6 bizhub C360i/C300i/C250i
Name of each component (main unit)
4
4.2
4.2 Name of each component (main unit)

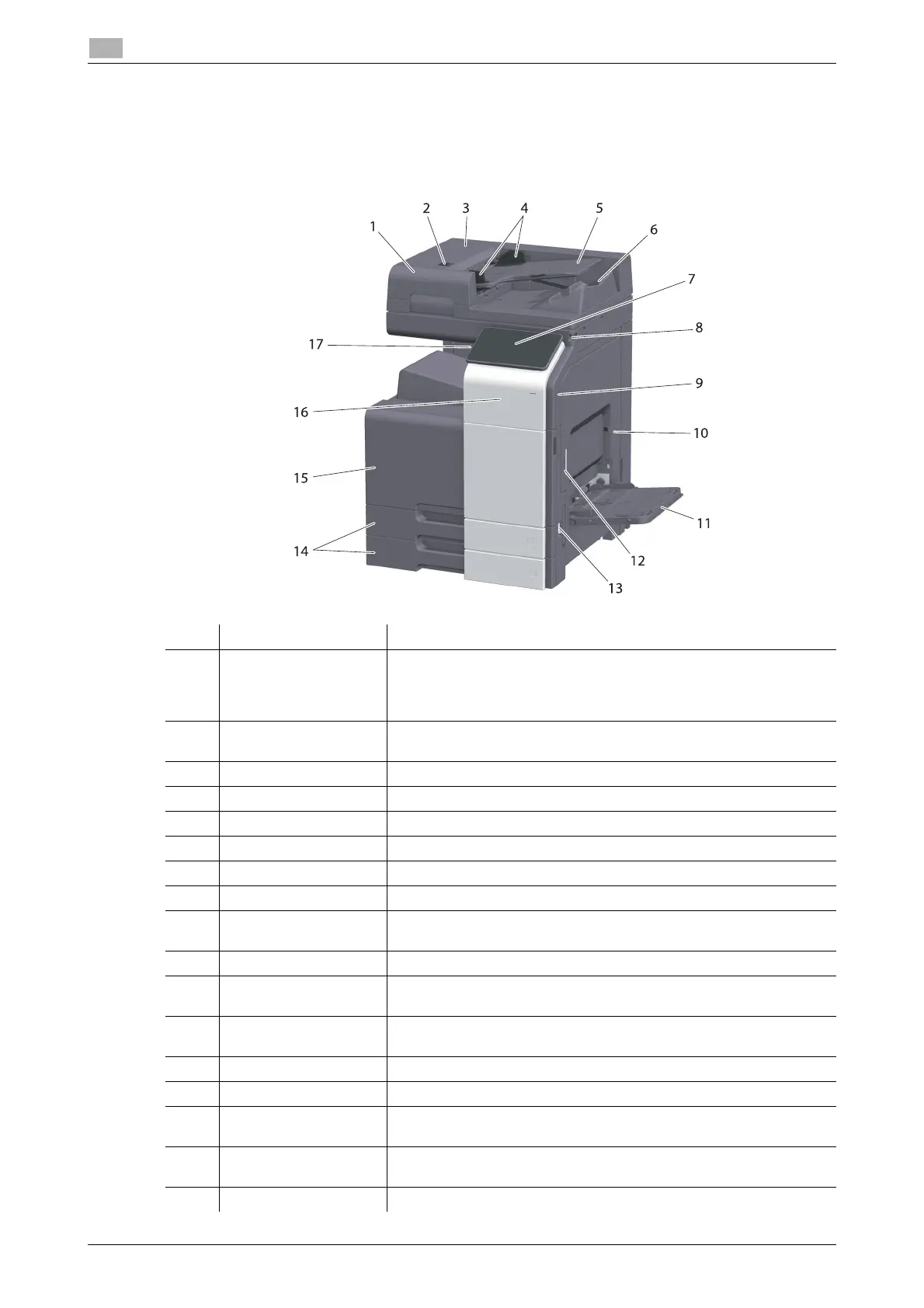

Front
This figure shows the main unit equipped with Reverse Automatic Document Feeder DF-714.
No. Name Description
1 Reverse Automatic
Document Feeder
Automatically feeds and scans originals by page. This unit scans a 2-
sided original by only requiring the paper be fed into the machine once
without reversing.
This unit is referred to as ADF in the manual.
2 Left Cover Release
Lever
Used to open the Left Cover.
3 Left Cover Open the Left Cover when clearing a paper jam.
4 Lateral Guide Adjust this guide along the width of the original.
5 Original Tray Load the original face up in this tray.
6 Original Output Tray The scanned original is fed out onto this tray.
7 Control Panel Used to configure various settings in this machine.
8 Stylus Pen Used to select a menu on the Touch Panel, or enter characters.
9 USB Port (Type A)
USB2.0/1.1
Used to connect an external memory unit (USB flash drive) to this ma-
chine.
10 Right Door Open this door to clear a paper jam.
11 Bypass Tray Used to print data on irregularly size paper, thick paper, transparen-
cies, postcards (4 e 6 (A6 Card)), envelopes, or label sheets.
12 Right Door Release
Lever
Used to lock the Right Door.
13 Main Power Switch Press this switch to turn the machine on or off.
14 Tray 1, Tray 2 Allows you to load up to 500 sheets of plain paper.
15 Front Door Open this door to replace the Toner Cartridge or Waste Toner Box,
and to clean the Print Head Glass.
16 Mobile Touch Area This area is used to associate this machine with an NFC-compatible
Android terminal or an iOS terminal compatible with Bluetooth LE.
17 Power key Switches this machine to the Power Save mode.
