RC-63DLN - Connecting the RC-63DLN Room Controller
4 Connecting the RC-63DLN Room Controller
Always switch off the power to each device before connecting it to your
RC-63DLN. After connecting your RC-63DLN, connect its power and then
switch on the power to each device.
To connect the RC-63DLN, as shown in the example in Figure 5, do the following:
1. Connect the RELAY terminal block connectors as follows:
 Connect REL 1 and COM to the screen
 Connect REL 2 (for example, to a lighting system, not shown in Figure 5)
2. Connect the IR port (IR and GND terminal blocks) to an IR emitter and
attach the emitter to an auxiliary device (for example, a DVD player).
3. Connect the RS-232 port (GND, Tx and Rx) to the projector (see Section 4.1).
4. Connect the K-NET ports to any RC devices with K-NET (for example, the
Kramer RC-74DL and SL-12), see Section 4.2.
Note that the RC-63DLN receives power over the K-NET port via the connected master
room controller.

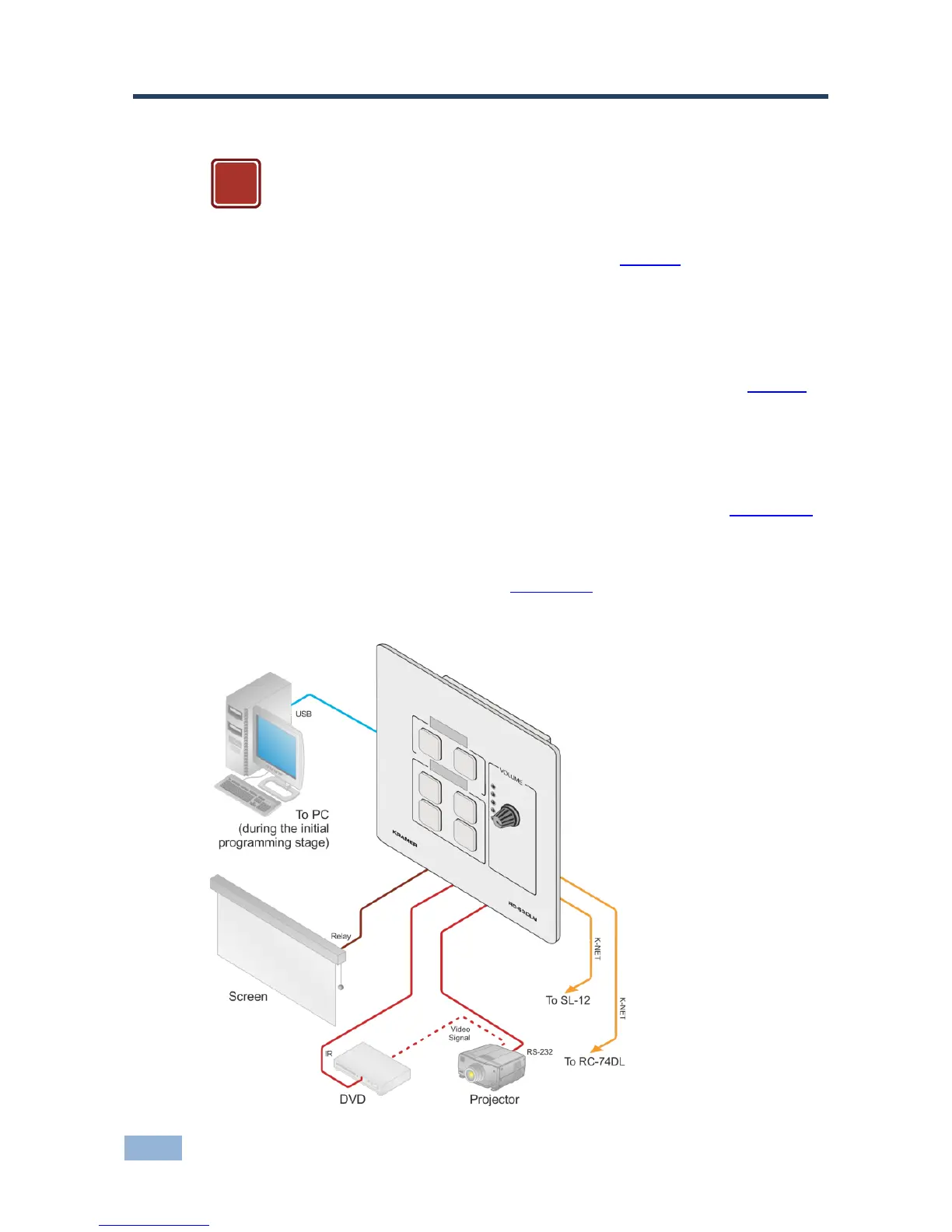

Figure 5: Connecting the RC-63DLN
!
