RC
-74DL - Co
nnecting the RC
-74DL
9

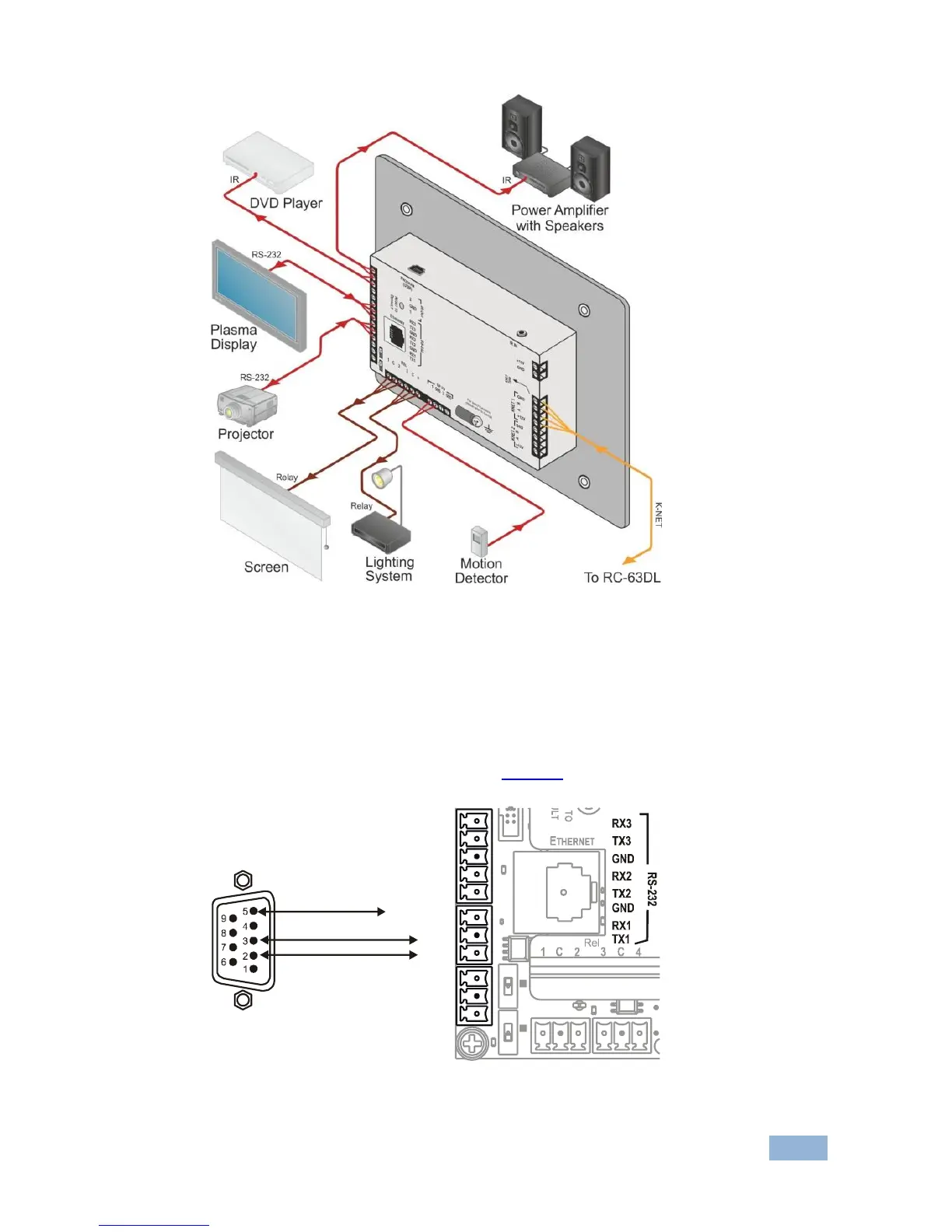

Figure 3: Conne
cting th
e
RC
-74DL
Master Room C
ontroller
4.1
Connecting
the RS-232
Interface
To connect
an AV devi
ce to the
RC
-74DL
using the RS-232 por
t, conn
ect the
RS
-232 9-pin D-sub por
t on your
AV device
to the RS-232 ter
minal b
lock on the
rear pan
el of the
RC
-74DL
as sho
wn in
Figure 4
.
Figure 4: RS
-232 Conne
ction
Grou
nd
RS-2
32
Device
Pi
n 5
Pi
n 3
Pi
n 2
Rx
Tx
10
12
Table of Contents
Default Chapter
1
User Manual
1
Table of Contents
2
1 Introduction
3
2 Getting Started
4
Achieving the Best Performance
4
Safety Instructions
5
Recycling Kramer Products
5
3 Overview
6
Defining the RC-74DL Master Room Controller
7
Figure 1: RC-74DL Master Room Controller - Front Panel
7
Figure 2: RC-74DL Master Room Controller - Rear
8
4 Connecting the RC-74DL
10
Connecting the RS-232 Interface
11
Figure 3: Connecting the RC-74DL Master Room Controller
11
Figure 4: RS-232 Connection
11
Connecting the Ethernet Port
12
Grounding the RC-74DL
12
Figure 5: Grounding Connection Components
12
5 Operating the RC-74DL
14
6 Front Panel Button Caps and Labels
15
Installing the Front Panel Button Caps, Labels
18
Figure 6: Button Cap Orientation
18
Figure 7: Button Cap Orientation with Label
18
Figure 8: Placing the Button Cap
18
7 Technical Specifications
20
