1 Insert a screwdri ver into the small hole and carefully rotate it. trimming the appropriate output level
This section explains how to connect your:
• VM-3AN Audio DA, see section 5.1
• VM-3SN s-Video DA, see section 5.2
• VM-3VN Video DA, see section 5.3
5 Connecting Your Distribution Amplifier
#
Feature Function
1 INPUTBNC Connector Connects to the composite video source
2 IN=7SD TERMPushbutton Terminates the input with 750
3 OUTBNC Connector Connects to the composite video acceptor (from 1 to 3)
4 12VOC + 12V DC connector for powering the unit
5
EQTrimmer Adjusts 1 the EO. (equalization)compensationlevelforthe composite
videooutputs
6 LEVEL Trimmer
Adjusts 1 signal level for the composite video outputs
7 ONLED Illuminates when receiving power
Figure 3: VM-3VN Video DA
Table 3: VM-3VN Video DA Features
VM-3VN 1:3VideoDA
EQ. LEvEL ON
(l) (l) 0
KRAM_R TOOl!.!!

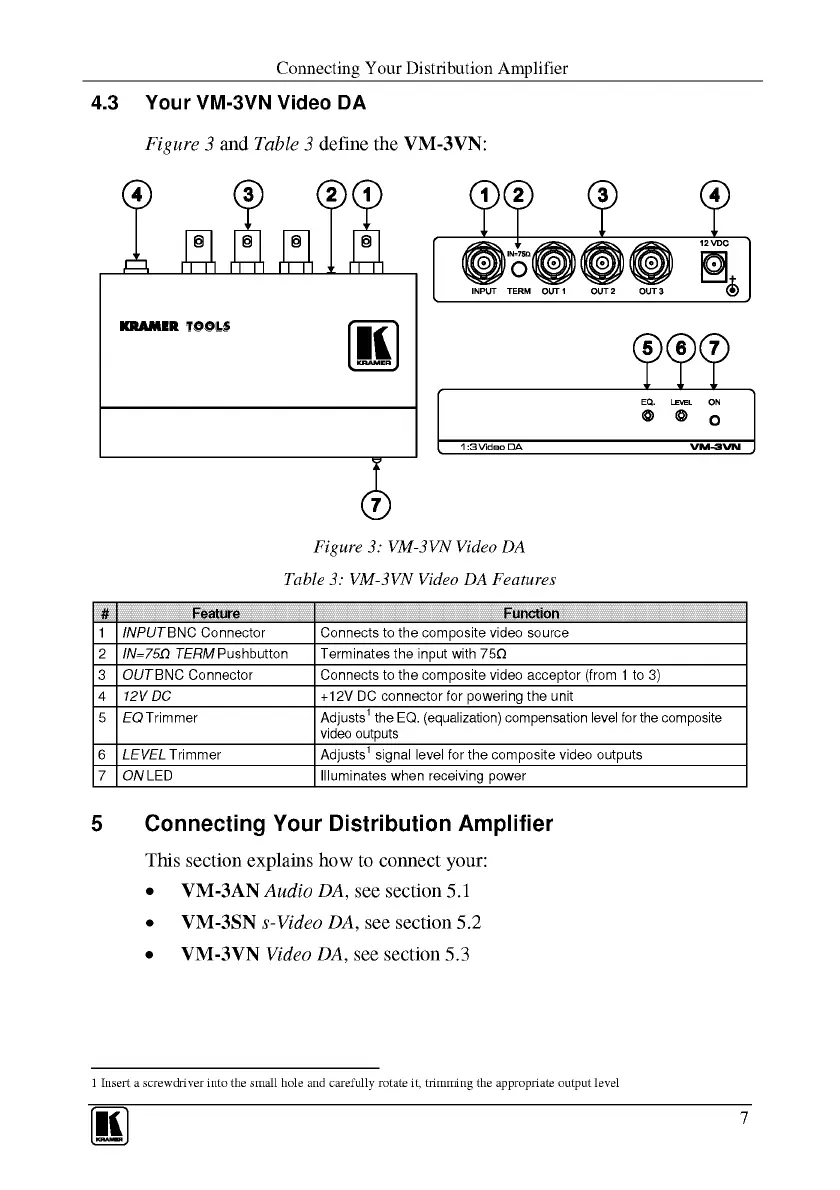

Figure 3 and Table 3 define the VM-3VN:
Connecting Your Distribution Amplifier
4.3 Your VM-3VN Video DA
