5.3 Installation Location

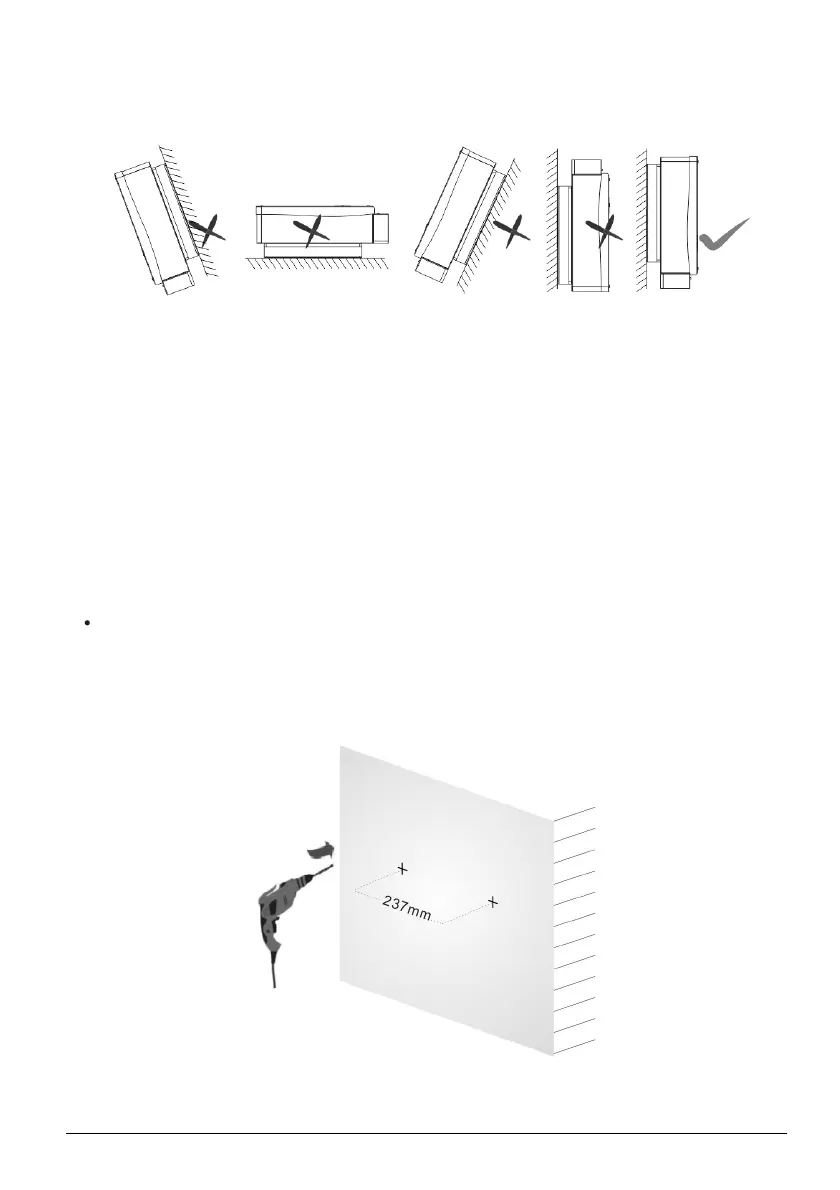

1. The inverter is suitable to be installed on vertical or backwards tilt
wall as shown above, the tilt angle should be less 15°.
2. Don’t install inverter on forward tilt wall.
3. Don’t install inverter on horizontal wall.
4. Mount the inverter at height same as eyesight for easy operation
and data reading.
5.4 Installation Procedure
1. Use Φ10 driller kit to drill installation holes as per below picture.
Please follow it exactly.
