KStar KSG-4K-DM User Manual

Installation and Operation Manual 17

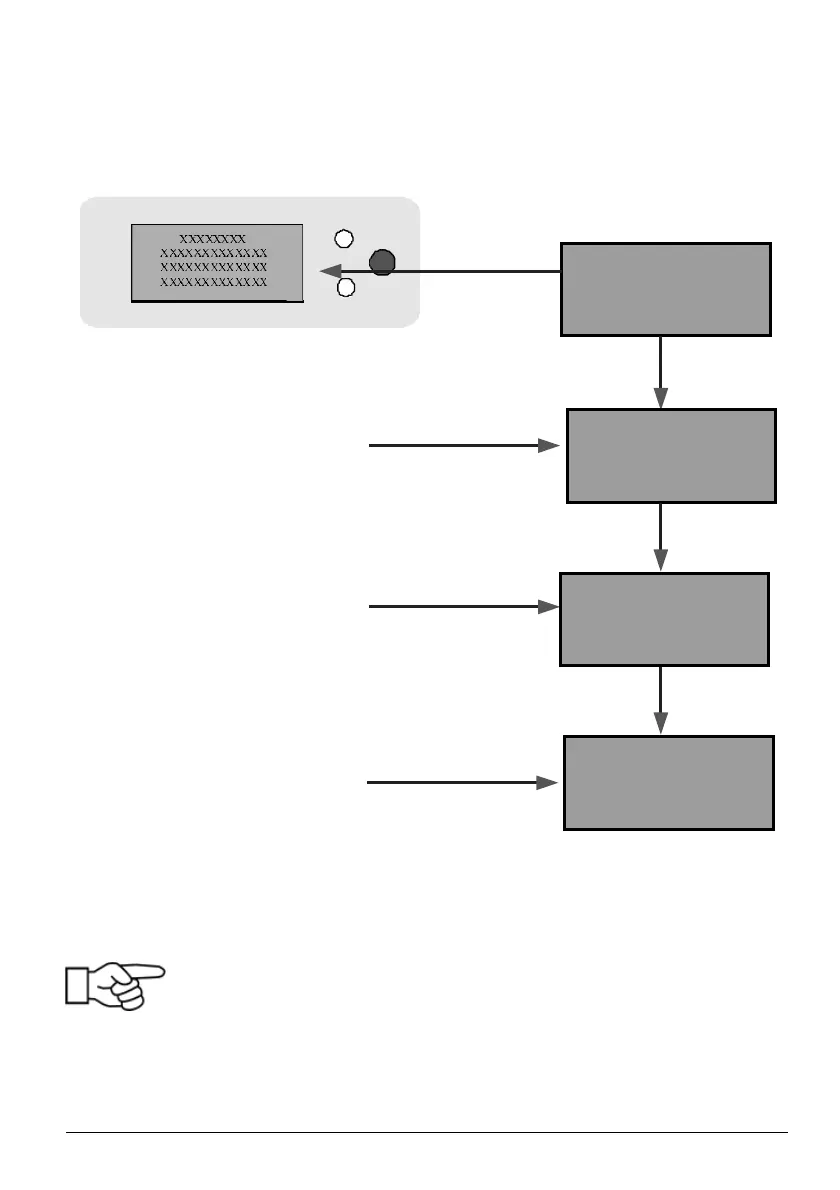

The following example shows the process when PV voltage is increased
from 120V:
Turn on the inverter, its model
and version will be displayed
first.
The input voltage is less
150V but higher than 120V,
the inverter will be in stand-
by status.
The input voltage is higher
than 150V, the inverter will
be in self-test status.
After self testing, the
inverter will be in normal
working status (the data
only for reference).
Attention: Before connecting to DC, please make sure
input positive (+) and negative (-) connections are correct,
otherwise the component of inverter will be damaged,
which may cause the inverter in abnormal operation status.
System Info
Model: XXXXXX
DSP: V1.0 ARM: V1.1
SN: XXXXXXXXXXXX
Standby
Checking........
RIyChk Remain: 60 S
Standby
Checking........
RIyChk Remain: 00 S
Normal
Power: 4993 W
APP Power: 5004 VA
