KTM 1190 Adventure 2014 User Manual

2 SETUP 3

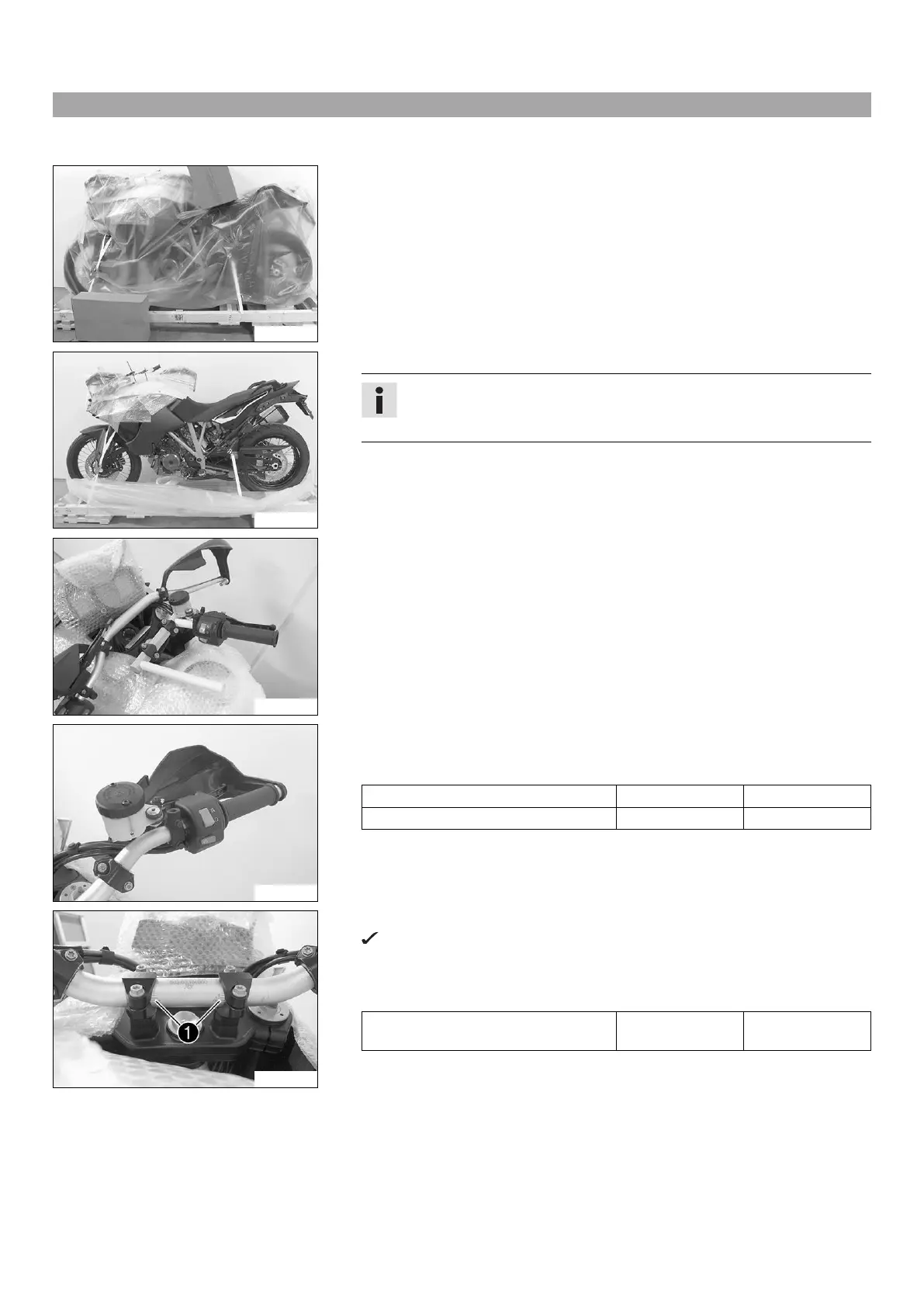

2.1 Unpacking and setting up the vehicle
Preparatory work
– Remove the box.
202178-10
Main work
– Remove the adhesive tape in the upper area of the motorcycle.
202179-10
– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking, leave the other films
on the vehicle until you have finished work on the vehicle.
– Remove the separate enclosure and unpack it. Check the separate enclosure for
completeness.
– Check the vehicle for transport damage.
202180-10
– Remove the controls from the transport holder. Remove the screws and handlebar
clamps. Remove the transport holder.
202181-10
– Remove the right hand guard.
– Position the controls on the right half of the handlebar. Tighten the screws.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
– Mount the right hand guard.
202182-10
– Position the handlebar.
The markings

of the scale of the handlebar are located centrally between
the handlebar clamps.
– Position the handlebar clamps. Tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
– Check the throttle grip for smooth operation.

KTM 1190 Adventure 2014 Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Torque	125 Nm @ 7500 rpm
Compression Ratio	12.5:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Suspension Travel Front	190 mm
Suspension Travel Rear	190 mm
Wheelbase	1560 mm
Ground Clearance	220 mm
Fuel Tank Capacity	23 liters
Dry Weight	217 kg
Engine Type	2-cylinder, 4-stroke, V 75-degree
Power	110 kW (150 hp) @ 9500 rpm
Clutch	hydraulically actuated
Rear Suspension	WP monoshock
Front Brake	Twin disc brake, diameter 320 mm
Rear Brake	Disc brake, diameter 267 mm
ABS	Bosch 9ME Combined-ABS
Seat Height	860 mm
