KTM 1190 Adventure 2014 User Manual

3 WORK 6

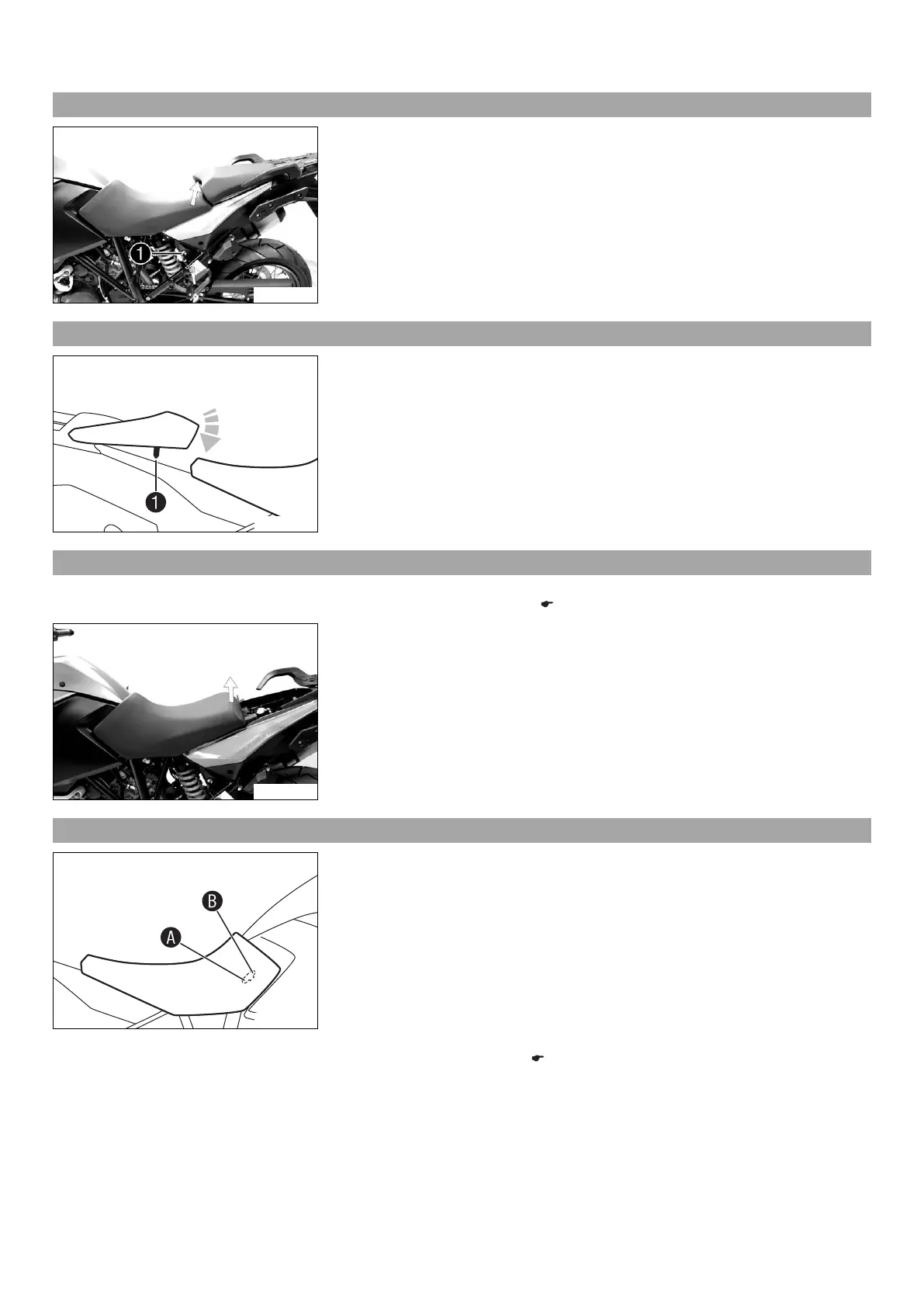

3.1 Removing the passenger seat
G00574-10
–
Insert the ignition key in seat lock

and turn it clockwise.
– Raise the front of the passenger seat, pull it toward the tank, and remove it
upward.
– Remove the ignition key.
3.2 Mounting the passenger seat
401680-10
– Attach the hooks on the passenger seat to the brackets on the subframe, and lower
at the front while pushing toward the rear.
–
Insert locking pin

into the lock housing and push down the front of the passen-
ger seat until the locking pin engages with a click.
– Check that the passenger seat is correctly mounted.
3.3 Removing the driver's seat
Preparatory work
– Remove the passenger seat. ( p. 6)
G00575-10
Main work
– Raise the rear of the driver's seat.
– Detach the front of the driver's seat and remove it.
3.4 Mounting the driver's seat
401704-10
Main work
– Attach the recesses on the driver's seat to the fuel tank at the desired seat posi-
tion

or

, and push the driver's seat forward while lowering it at the rear.
– Finally, check that the driver's seat is correctly mounted.
Finishing work
– Mount the passenger seat. ( p. 6)

KTM 1190 Adventure 2014 Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Torque	125 Nm @ 7500 rpm
Compression Ratio	12.5:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Suspension Travel Front	190 mm
Suspension Travel Rear	190 mm
Wheelbase	1560 mm
Ground Clearance	220 mm
Fuel Tank Capacity	23 liters
Dry Weight	217 kg
Engine Type	2-cylinder, 4-stroke, V 75-degree
Power	110 kW (150 hp) @ 9500 rpm
Clutch	hydraulically actuated
Rear Suspension	WP monoshock
Front Brake	Twin disc brake, diameter 320 mm
Rear Brake	Disc brake, diameter 267 mm
ABS	Bosch 9ME Combined-ABS
Seat Height	860 mm
