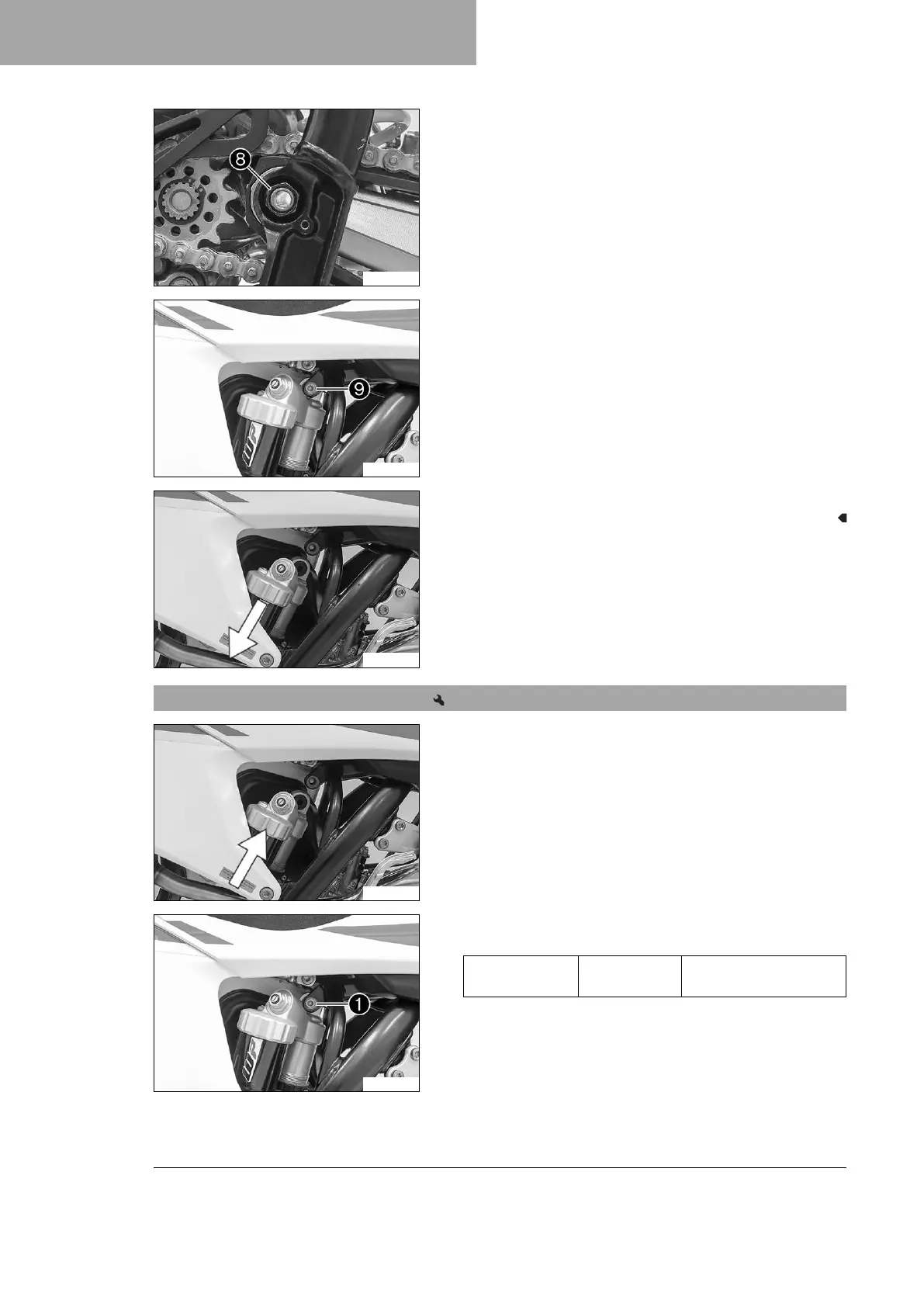

11 SERVICE WORK ON THE CHASSIS
56
K01138-10
Remove nut
8
and pull out the swingarm pivot.
Push the swingarm back and secure it against falling over.
K01139-10
Hold the shock absorber and remove screw
9
.
K01140-10
Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
K01140-11
Main work
Carefully position the shock absorber into the vehicle from the
bottom.
K01139-11
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
