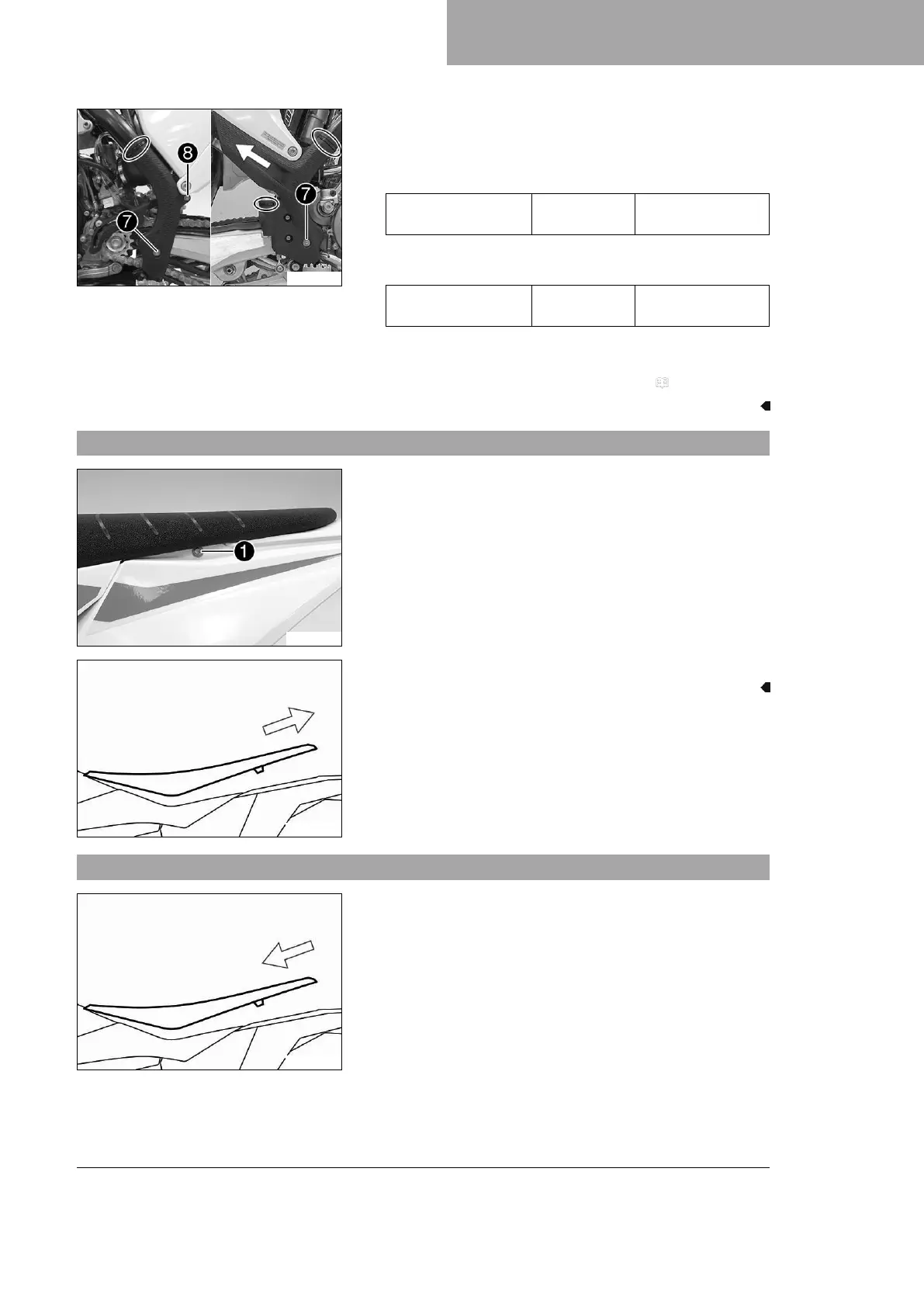

SERVICE WORK ON THE CHASSIS 11
57
V01525-11
– Position left frame protector.
– Insert right frame protector from below and push to the rear.
–
Mount and tighten screws
7
with the washers.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screw
8
.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
11.20 Removing the seat
K01133-10
–
Remove screw
1
.
H02218-10
– Raise the rear of the seat, pull the seat back, and lift it off.
11.21 Mounting the seat
H02218-11
– Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure that the seat is locked in correctly.
