13 SERVICE WORK ON THE CHASSIS 103

L01424-10

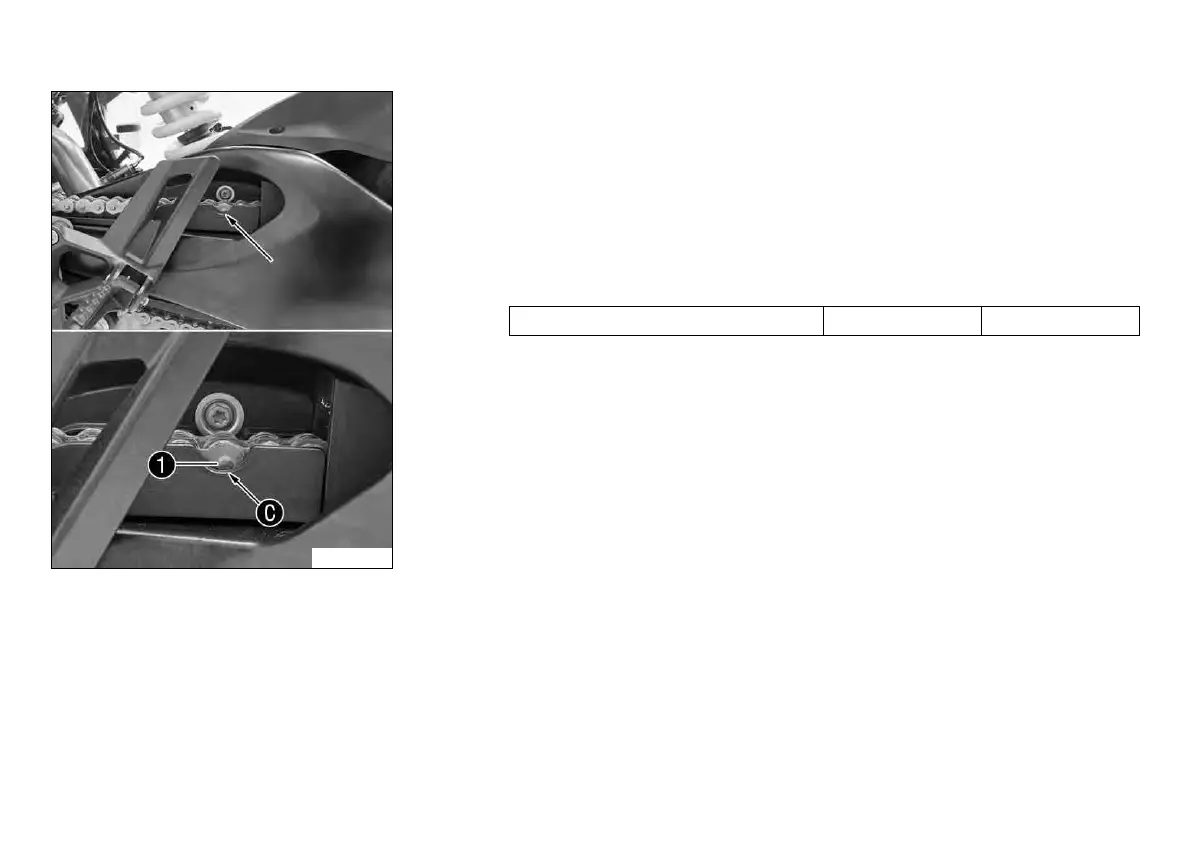

– Check the chain sliding guard for wear at the cutout.

When rivet

of the chain is no longer visible at the bottom edge

of the recess

of the chain sliding guard:

–

Change the chain sliding guard. x

– Check that the chain sliding guard is firmly seated.

» If the chain sliding guard is loose:

– Tighten the chain sliding guard.

Guideline

Screw, chain sliding guard M5 5 Nm (3.7 lbf ft)
