KTM 1290 Super Duke R User Manual

16 ELECTRICAL SYSTEM 127
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the passenger seat. ( p. 91)
– Remove the front rider's seat. ( p. 92)
L01482-10

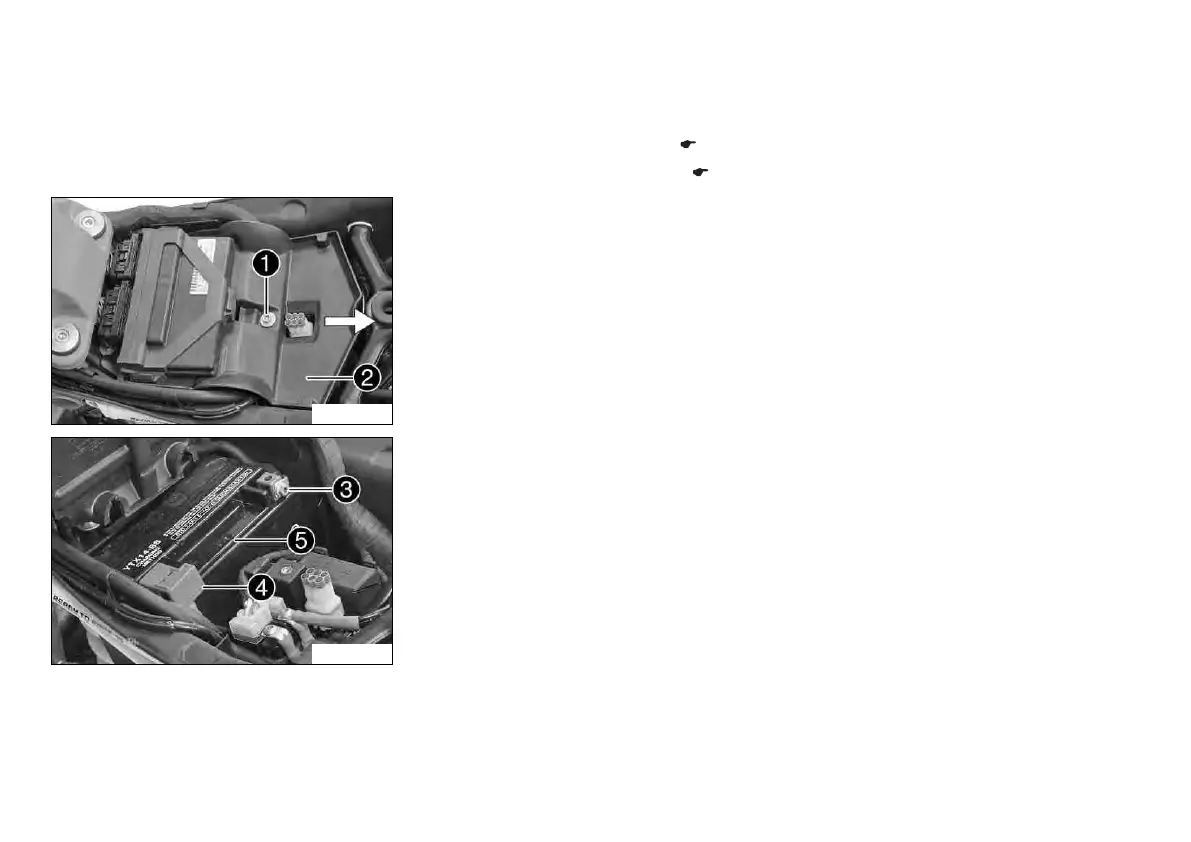

Main work
–
Remove screw
1
.
–
Lift cover
2
at the rear and pull toward the rear.
– Fold up the cover.
L01483-10
–
Disconnect negative cable
3
of the battery.
–
Remove positive terminal cover
4
and disconnect the positive cable from the battery.
–
Take the battery
5
out of the battery compartment.

KTM 1290 Super Duke R Specifications

General

Displacement	1301 cc
Transmission	6-speed
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Starter	Electric starter
Fuel System	Electronic fuel injection
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Wheelbase	1482 mm
Front Tire	120/70 ZR 17
Rear Tire	200/55 ZR 17
Engine Type	V-Twin, 4-stroke
Power	180 hp (132 kW) @ 9500 rpm
Torque	140 Nm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX monoshock
Rear Brake	Brembo two-piston caliper, 240 mm disc
Front Brake	Dual 320 mm discs, Brembo Stylema monobloc calipers
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
