KTM 1290 Super Duke R User Manual

16 ELECTRICAL SYSTEM 136
500327-11
–

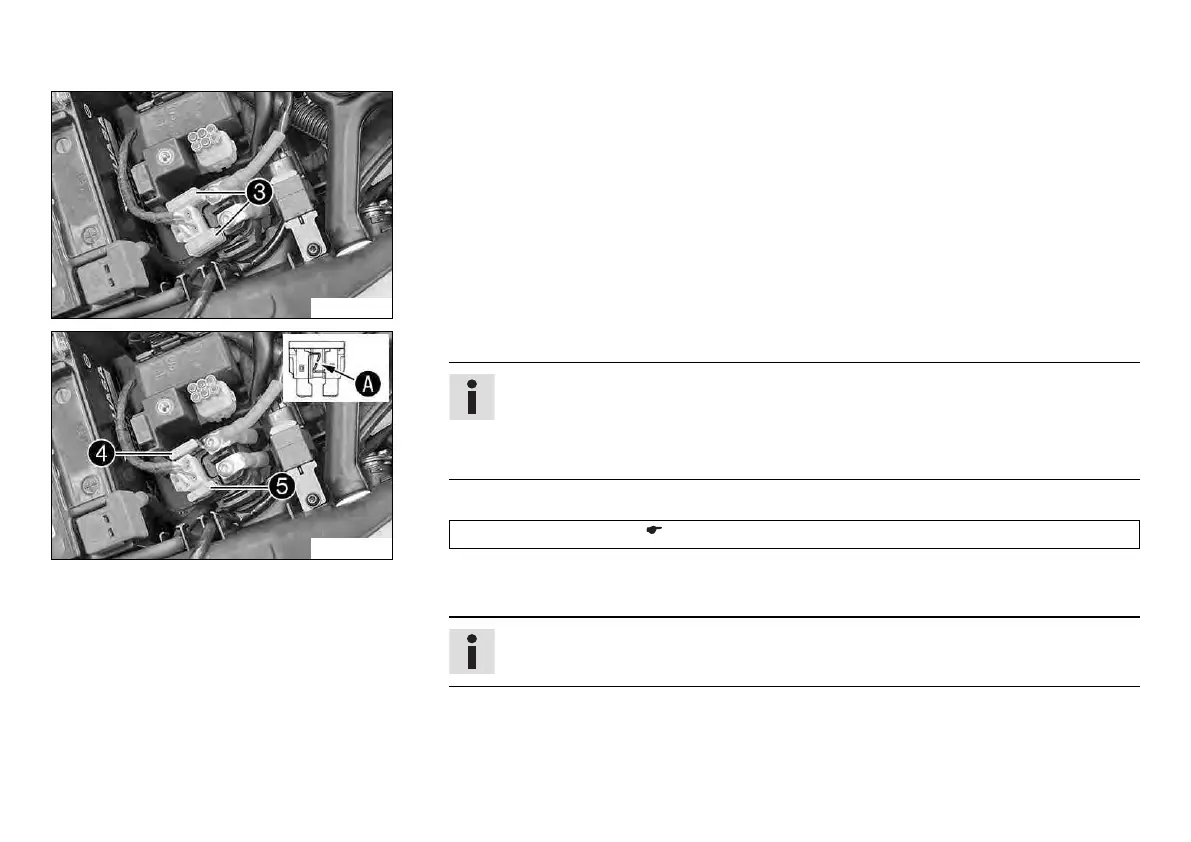

Remove protection caps
3
.
500328-11
–
Remove the faulty main fuse
4
.
Info
A defective fuse is indicated by a burned-out fuse wire
A
.
A spare fuse
5
is located in the starter relay.
The main fuse protects all power consumers of the vehicle.
– Install a new main fuse.
Fuse (58011109130) ( p. 177)
– Check that the electrical equipment is functioning properly.
– Mount the protection caps.
Tip
Insert a new spare fuse into the starter relay to have it available when needed.
