12 SUSPENSION SETTING 88

402002-10

–

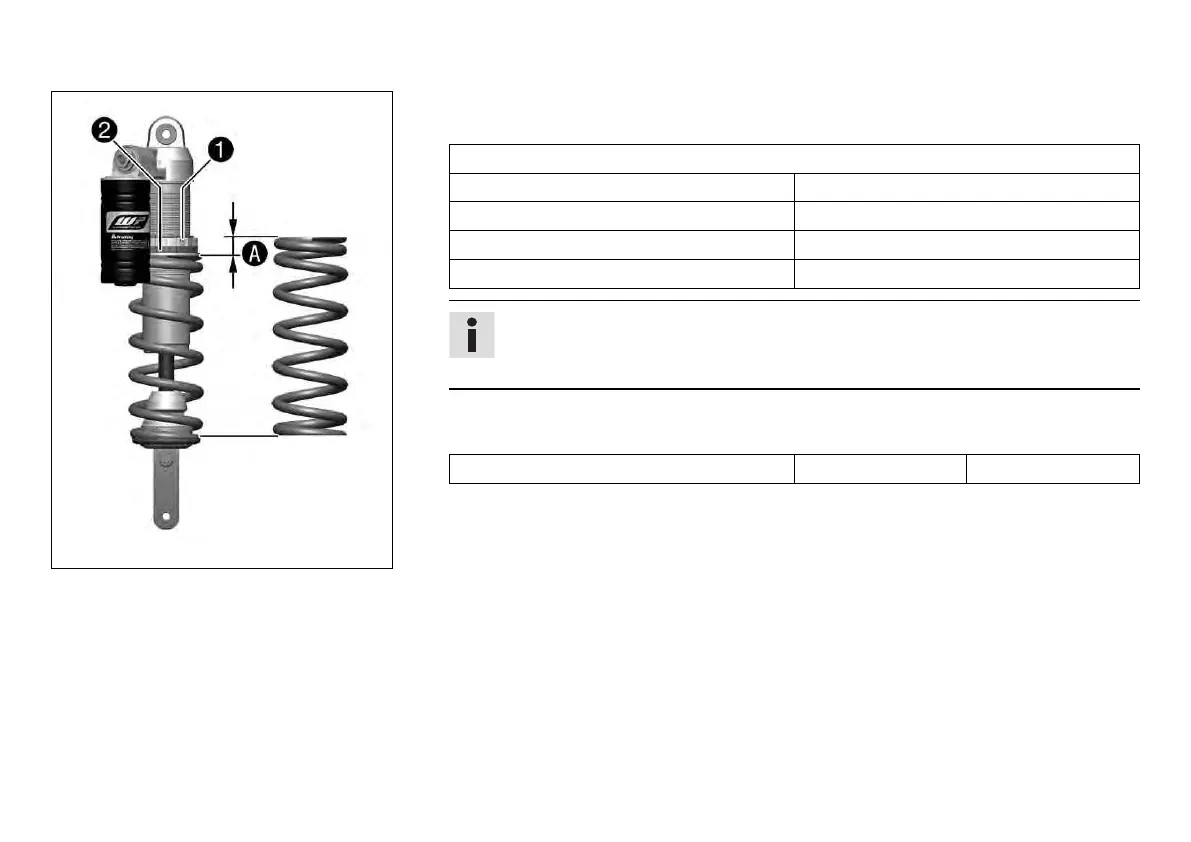

Tighten the spring by turning adjusting ring

to the specified measurement

Guideline

Spring preload

Comfort 5 mm (0.2 in)

Standard 5 mm (0.2 in)

Sport 6 mm (0.24 in)

Full payload 7 mm (0.28 in)

Info

Turn clockwise to increase the spring preload; turn counterclockwise to reduce

the spring preload.

–

Tighten screw

Guideline

Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft)
