WHEELS, TIRES 14
147
S00674-11
–

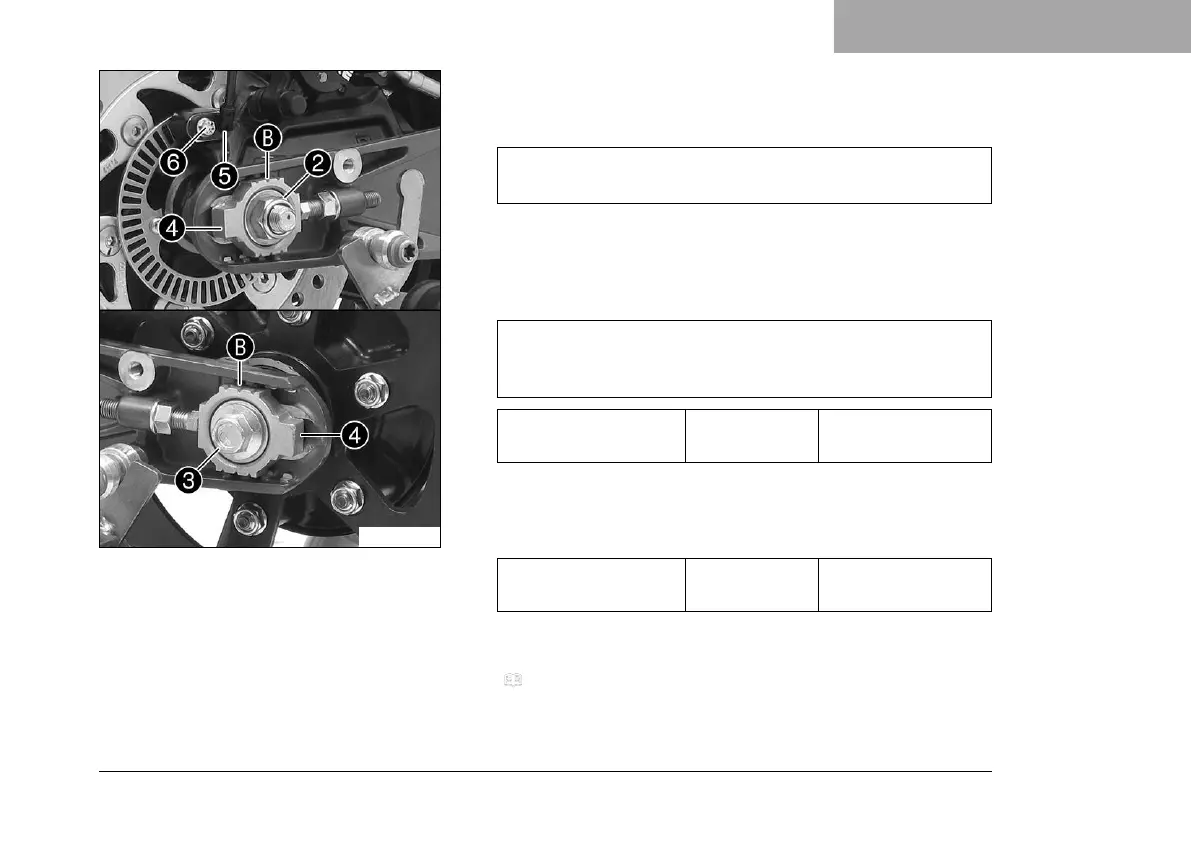

Pull the rear wheel back and mount wheel spindle
3
with the
washer and chain adjuster
4
.
Guideline
Mount left and right chain adjusters
4
in the same posi-
tion.
–
Mount nut
2
and the washer.
– Push the rear wheel forward so that the chain adjusters are in
contact with the screws, and tighten nut
2
.
Guideline
In order for the rear wheel to be correctly aligned, the mark-
ings on the left and right chain adjusters must be in the
same position relative to reference markings
B
.
Nut, rear wheel spin-
dle
M14x1.5 98 Nm (72.3 lbf ft)
–
Position wheel speed sensor
5
in the hole.
–
Mount and tighten screw
6
.
Guideline
Screw, wheel speed
sensor holder
M6 8 Nm (5.9 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the lifting gear.
( p. 103)
