SERVICE WORK ON THE ENGINE 18
193
S04241-10

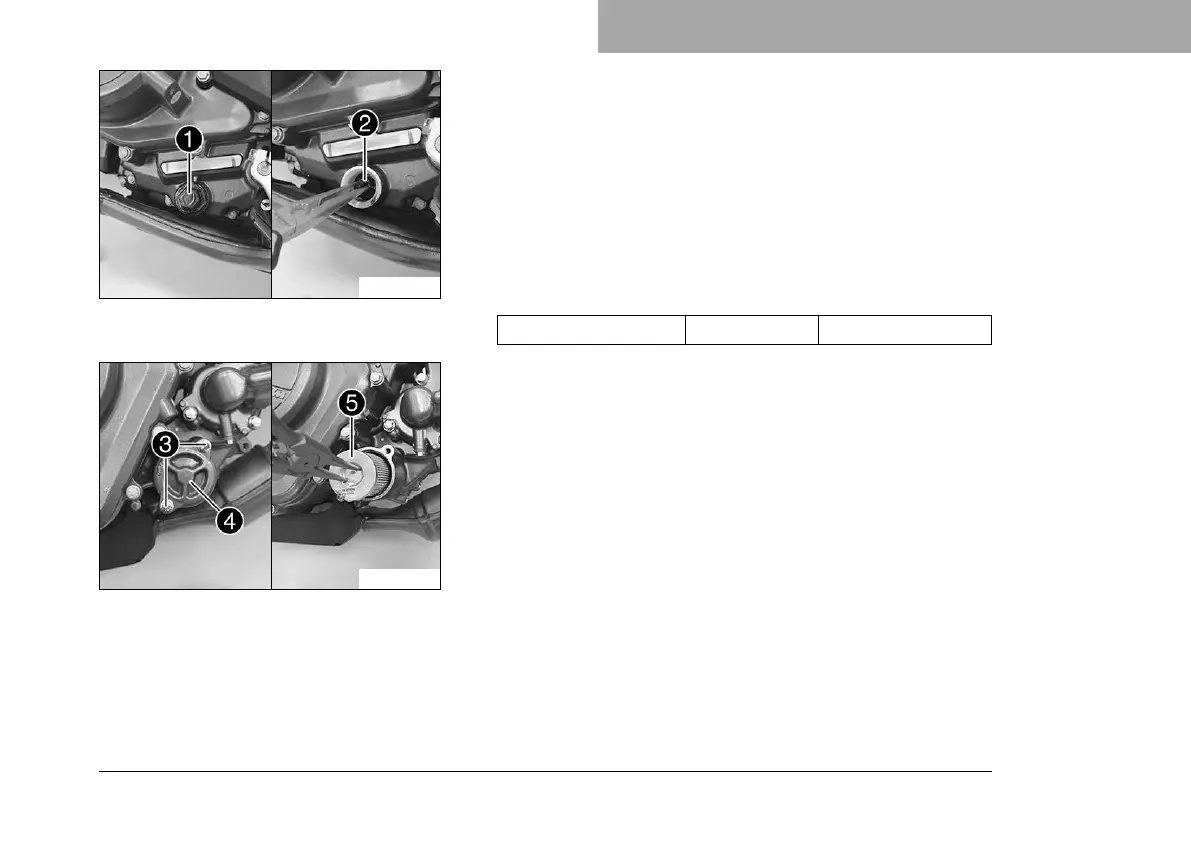

Main work
– Place an appropriate container under the engine.
–
Remove oil drain plug
1
with the O-ring.
–
Remove oil screen
2
with the O-ring.
– Allow the engine oil to drain completely.
– Clean the oil drain plug and the oil screen thoroughly.
–
Position oil screen
2
and mount and tighten oil drain
plug
1
with the O-ring.
Guideline
Oil drain plug M24x1.5 15 Nm (11.1 lbf ft)
S04242-10
–
Remove screws
3
. Take off oil filter cover
4
with the O-
ring.
–
Pull oil filter
5
out of the oil filter housing.
– Allow the engine oil to drain completely.
– Thoroughly clean the parts and the sealing surface.
