3 WORK
12

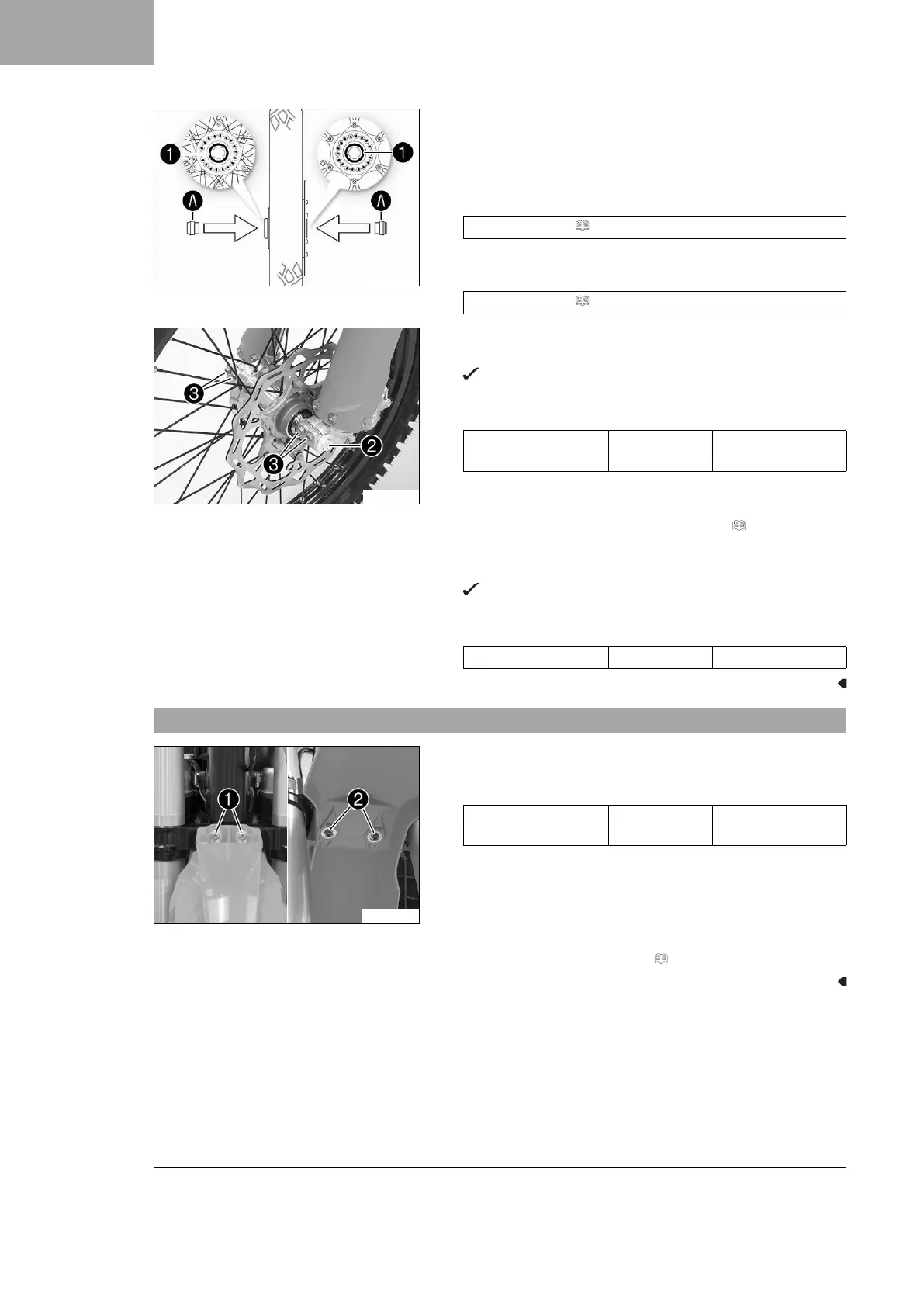

H00935-10
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change front wheel bearing.
–
Clean and grease shaft seal rings
1
and contact surface
A
of the spacers.
Long-life grease ( p. 22)
– Insert the spacers.
– Clean and grease the wheel spindle.
Long-life grease ( p. 22)
K00454-11
– Lift the front wheel into the fork, position it, and insert the
wheel spindle.
The brake linings are correctly positioned.
–
Mount and tighten screw
2
.
Guideline
Screw, front wheel
spindle
M20x1.5 35 Nm (25.8 lbf ft)
– Operate the hand brake lever several times until the brake lin-
ings are seated correctly against the brake disc.
– Remove the motorcycle from the lift stand. ( p. 10)
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
3
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
3.5 Installing front fender
M01144-10
Main work
–
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 15)
