KTM 250 XC-F User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE »
ENGLISH
33
8-10 mm / 0.3-0.4 in
A
2
3
1
4
B
2
B
3
4

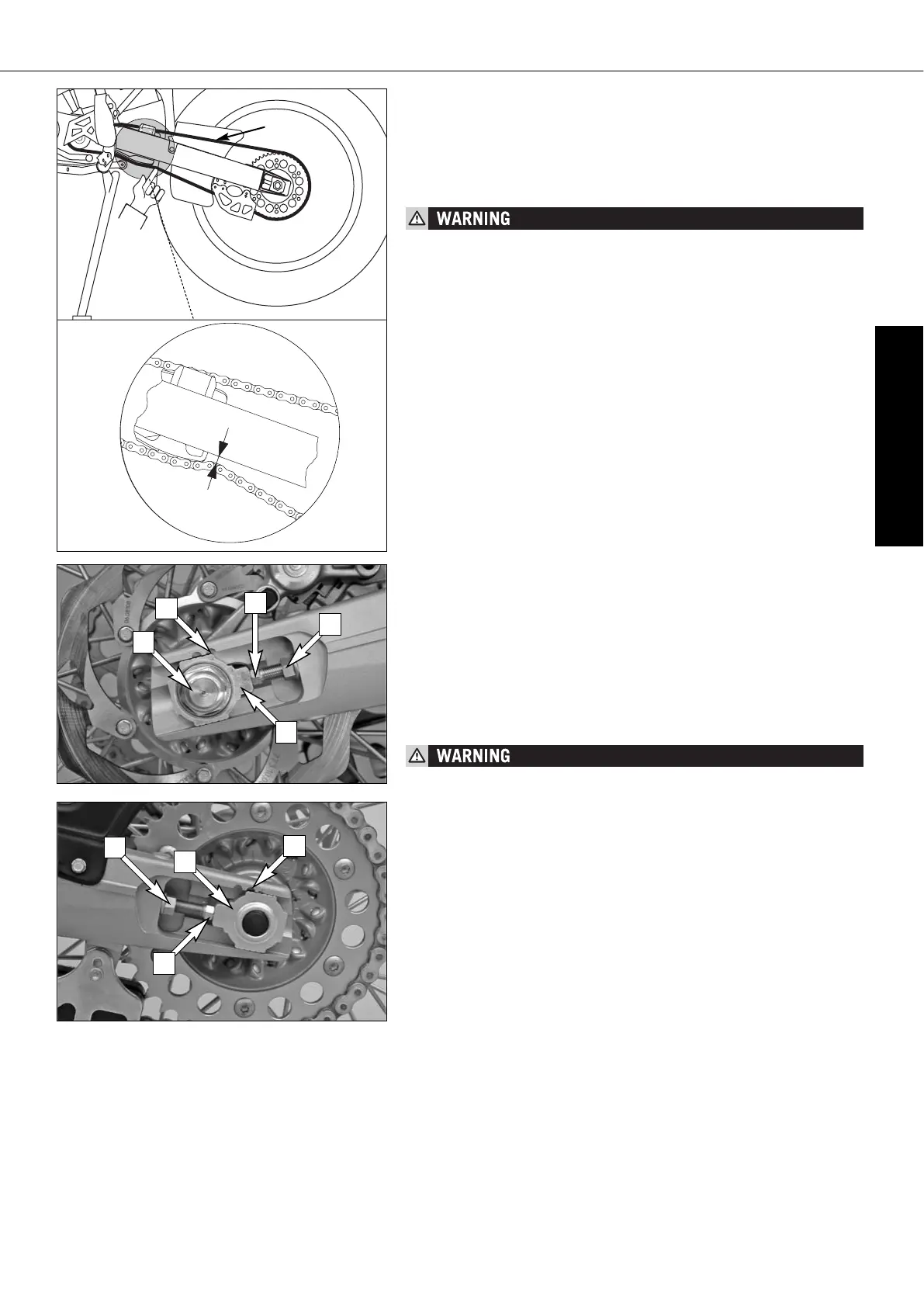

Check chain tension
Jack the motorcycle up on its frame so that the rear wheel no longer touches
the ground.
Press the chain upward at the end of the chain sliding component. The
distance between the chain and the swing arm should be approx. 8 - 10 mm
(0.31 - 0.39 in). In the course of this procedure, the upper chain portion [A]
must be taut (see drawing). If necessary, correct the chain tension.
– Excessive tensioning of the chain will put additional load on the compo-
nents of the secondary drivetrain (chain, bearings of transmission and rear
wheel). Aside from resulting premature wear, if worst comes to worst the
chain may rupture or the countershaft of the transmission may break.
– Too much slack in the chain, on the other hand, can result in the chain
jumping off the chain wheels. If this happens, the chain could also block
the rear wheel or damage the engine.
– In either case the operator is likely to lose control of the motorcycle.
Correct chain tension
Loosen collar nut [1], loosen lock nuts [2], and turn right and left adjusting
screws [3] equally far. Tighten lock nuts.
To ensure the correct alignment of the rear wheel, the marks at the left and
right chain adjusters must be positioned identically in relation to the
reference marks [B]. Tighten the counter nut of the adjusting screws.
Clean and grease the adjusting screws regularly (Motorex Long Term Grease
2000). Before tightening the collar nut, verify that the chain adjusters [4] are
sitting close to the adjusting screws and that the rear wheel has been aligned
with the front wheel.
Tighten collar nut [1] to 80 Nm.
– If you don’t happen to have a torque wrench at hand, make sure you have
the tightening torque corrected by a KTM dealer as soon as possible. A
loose axle may lead to an unstable driving behavior of your motorcycle.
– Tighten the collar nut with the required torque. A loose wheel spindle may
lead to an unstable behavior of your motorcycle.
NOTE:
The large adjusting range of the chain adjusters (32mm) allows you to use
different secondary ratios in combination with the same chain length. The
chain adjusters [4] can be rotated by 180°.

KTM 250 XC-F Specifications

General

Engine Type	Single Cylinder, 4-Stroke
Displacement	249.9 cm³
Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	950 mm
Ground Clearance	370 mm
Frame	Central double-cradle type, 25CrMo4 steel
Fuel Tank Capacity	8.5 liters
