OPERATION INSTRUMENTS »

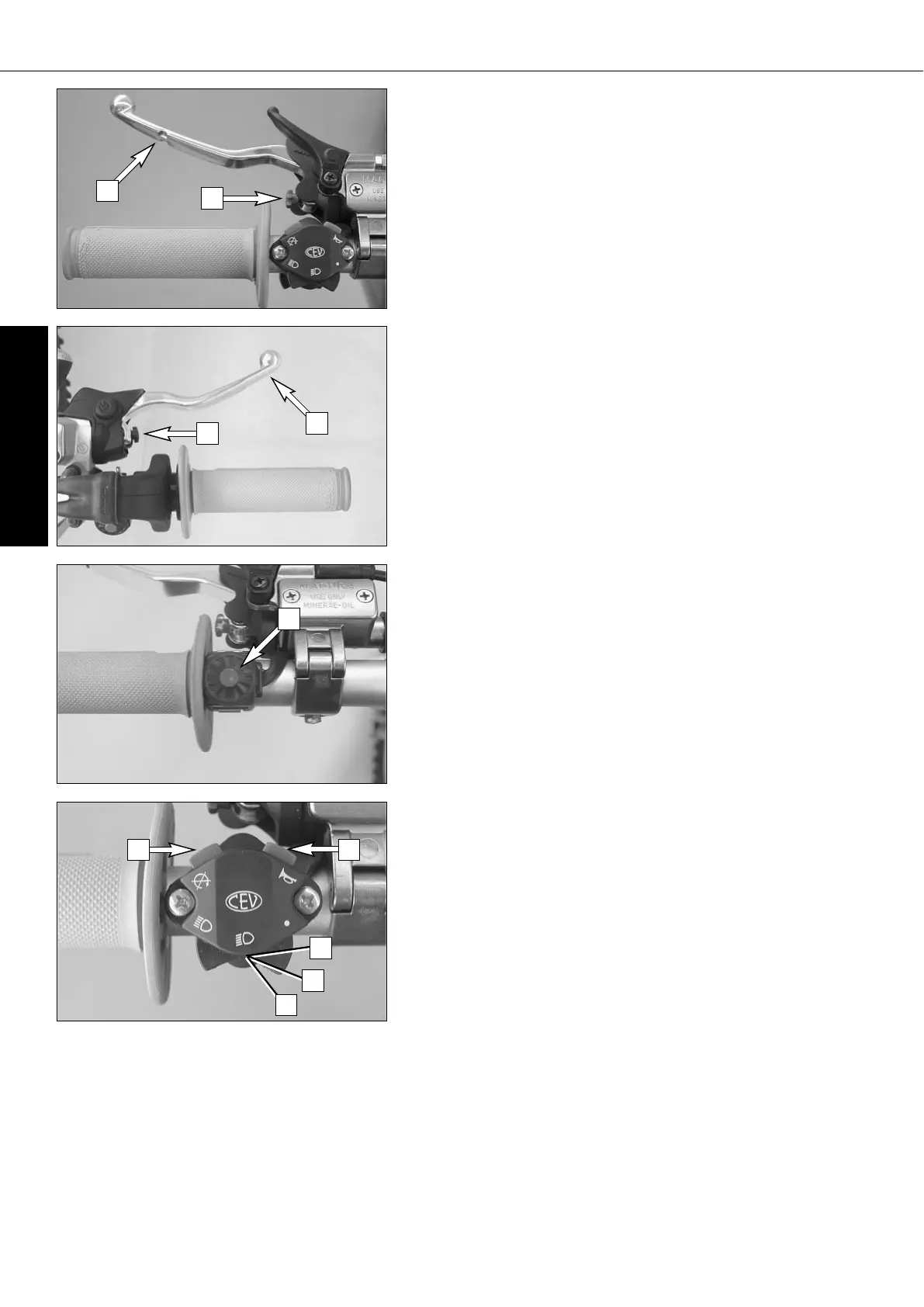

Hand brake lever
The hand brake lever [3] is mounted on the handlebars on the right and
actuates the front wheel brake. The adjusting screw [B] can be used to change
the basic position of the hand brake lever (see "Maintenance").
Combination switch (EXC)
The light switch has 2, respectively 3 switch positions.
[A] = Light off (this function is not available in all models)
[B] = Low beam on
[C] = High beam on
You may use button [5] to actuate the horn.
The red short circuit button [6] serves to switch off the engine. Leave the
switch pressed until the engine stops.
3
B
4
Short circuit button (XC)
The short circuit button [4] turns off the engine. When pressing this button,
the ignition circuit is short-circuited.
ENGLISH
6
56
Clutch lever
The clutch lever [1] is located on the left side of the handlebar. The adjust-
ing screw [A] is used to change the original position of the clutch lever (see
maintenance work on chassis and engine).
The clutch is hydraulically actuated and adjusts itself automatically.
1
A

KTM 250 XC-F Specifications

General

Engine Type	Single Cylinder, 4-Stroke
Displacement	249.9 cm³
Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	950 mm
Ground Clearance	370 mm
Frame	Central double-cradle type, 25CrMo4 steel
Fuel Tank Capacity	8.5 liters
