MAINTENANCE WORK ON CHASSIS AND ENGINE »
ENGLISH
46
1
2
4
3
6
5
7

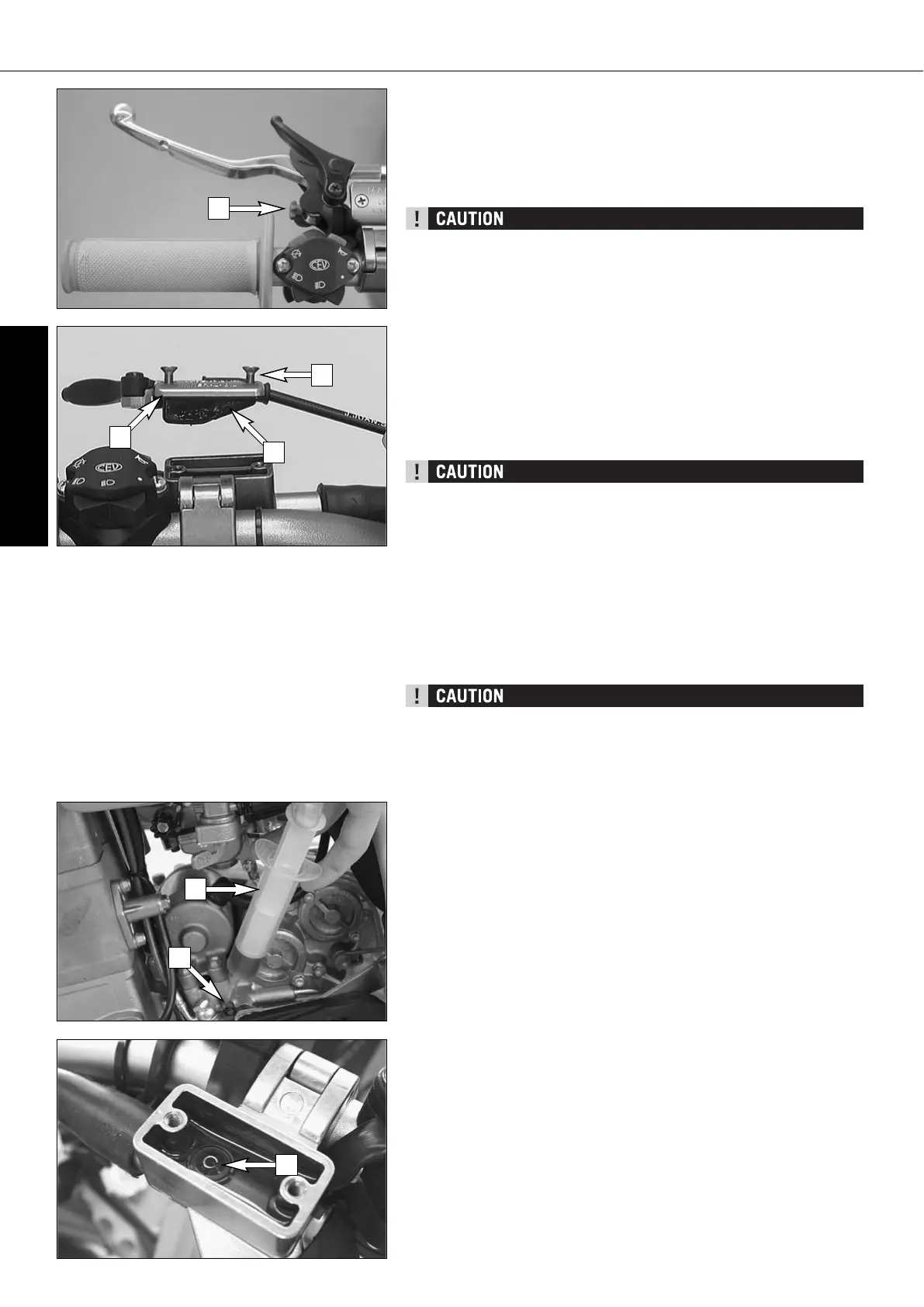

Changing the original position of the clutch lever
The adjusting screw [1] can be used for individual adjustment of the original
position of the clutch lever, thus allowing adjustment to an optimal position
for every hand size.
Turning the adjusting screw counterclockwise reduces the distance between
the clutch lever and the handlebar. Turning the adjusting screw clockwise
increases the distance between the clutch lever and the handlebar.
Adjustment of the clutch lever position is only possible within certain limits.
Only turn the adjusting screw manually and never apply excessive force.
Checking the oil level of the hydraulic clutch (400/450/525)
To check the oil level in the master cylinder of the clutch remove the cover.
For this purpose, remove screws [2] and cover [3] together with the rubber
boot [4]. The oil level in the horizontal-standing master cylinder should be 4
mm below the upper edge.
If necessary, fill up with biodegradable hydraulic oil SAE 10 (e.g. Motorex
Kupplungs-Fluid 75).Biodegradable hydraulic oil is available from your KTM
dealer (50ml).
KTM uses biodegradable, hydraulic mineral oil to actuate the hydraulic
clutch. Do not mix this oil with any other hydraulic oil. Always use
original KTM hydraulic oil (available from your authorized KTM workshop) to
make sure your clutch operates smoothly.
Never refill with brake fluid.
Bleeding of the hydraulic clutch *
If the clutch lever starts to feel unresponsive, the clutch control system needs
to be bled. You will need to use a bleeding syringe (special tool). Please note
that Motorex 75 clutch fluid must be used for the 400/450/525 models and
Motorex DOT. 5.1 brake fluid for the 250-F models.
Turn the handlebar until the master cylinder is in a horizontal position, remove
the screws [2], the cover [3] and the rubber boot [4].
Fill the bleeder syringe [6] with a suitable fluid (see Technical Specifications
- Engine). Remove the bleeder screw [5] from the slave cylinder and mount
the bleeder syringe.
Press oil into the system until the oil runs out of the hole [7] in the master
cylinder without bubbles. Occasionally extract the oil from the master cylin-
der reservoir to keep it from overflowing.
After you finish bleeding, remove the bleeder syringe, mount the bleeder screw,
correct the oil level in the reservoir and mount the cover (see above).
Checking the oil level of the hydraulic clutch (250-F)
To check the oil level in the master cylinder of the clutch remove the cover.
For this purpose, remove screws [2] and cover [3] together with the rubber
boot [4]. The oil level in the horizontal-standing master cylinder should be 4
mm below the upper edge.
If necessary, add DOT 5.1 brake fluid (Motorex Brake Fluid 5.1).
Brembo clutch fittings are installed in the 250-F models and filled with DOT
5.1 brake fluid. To make sure the clutch operates smoothly, never add hydraulic
oil to these systems.
