TUNING THE CHASSIS 11
55
M00993-11
–

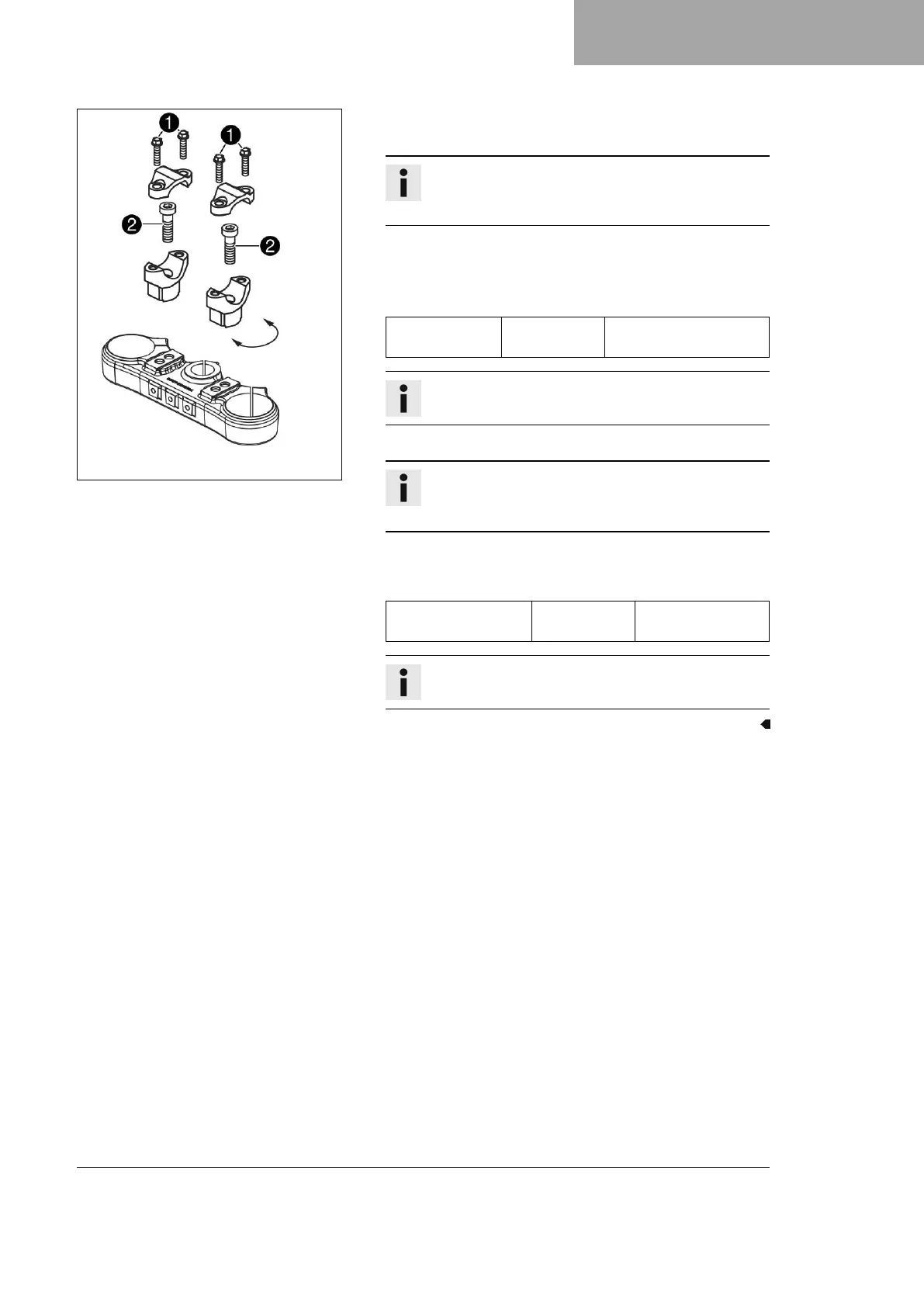

Remove screws
1
. Take off the handlebar clamps. Remove
the handlebar and lay it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
2
. Take off the handlebar supports.
– Place the handlebar supports in the required position. Mount
and tighten screws
2
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position the handlebar clamps. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
Make sure the gap widths are even.

KTM 300 EXC Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	2-stroke
Rear Suspension	WP Xplor PDS
Frame	Central double-cradle type 25CrMo4 steel
Fuel Tank Capacity	Approx. 9 l
