13 BRAKE SYSTEM
94
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.

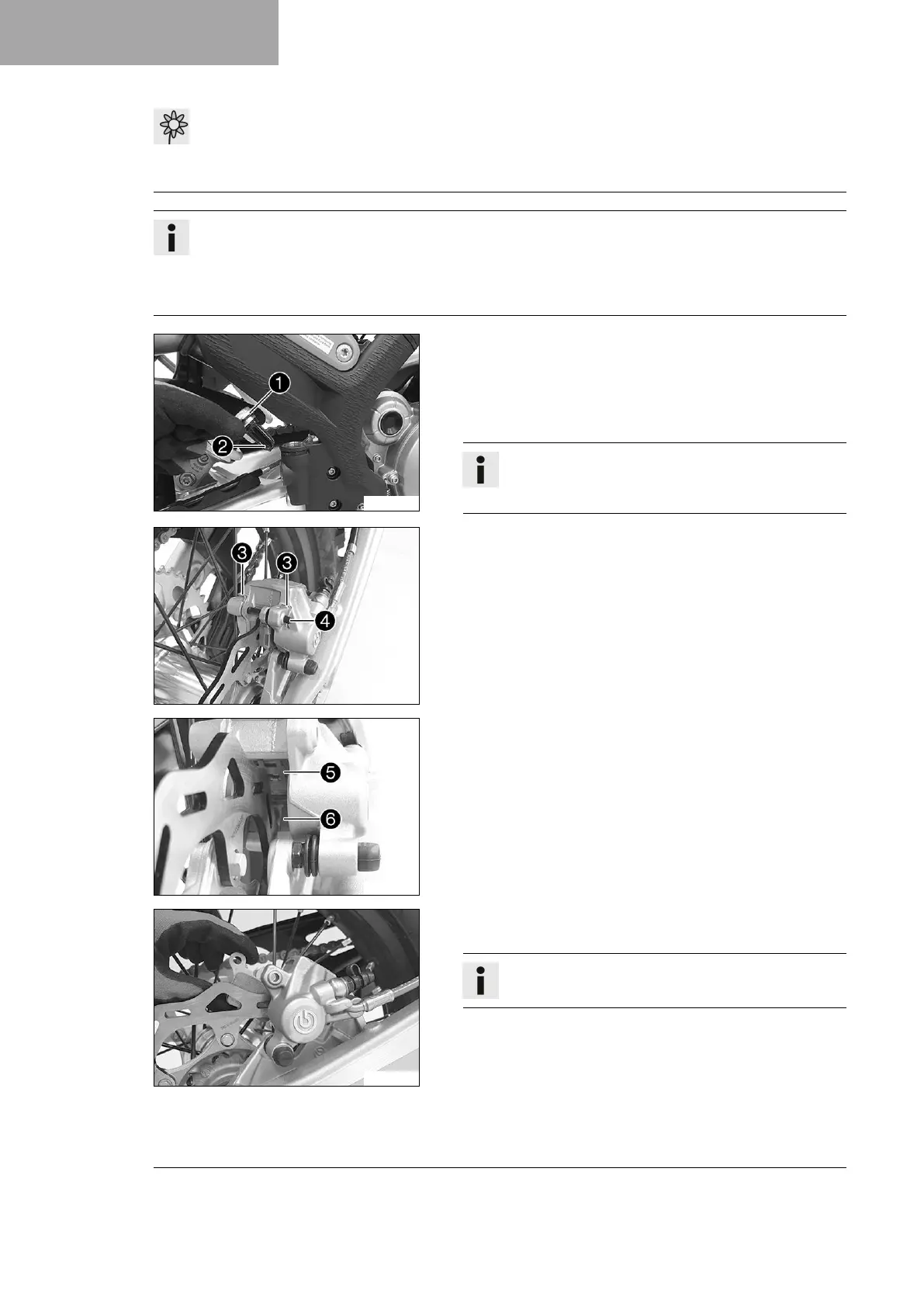

S03488-10
– Position the vehicle vertically.
–
Remove screw cap
1
with membrane
2
and the O-ring.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir;
extract some if necessary.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake piston.
E00351-10
–
Remove cotter pin
3
, pull out pin
4
, and remove the brake
linings.
– Clean the brake caliper and the brake caliper bracket.
E00352-10
–
Check that spring plate
5
in the brake caliper and sliding
plate
6
in the brake caliper bracket are seated correctly.
E00353-01
– Insert the new brake linings, insert the pin, and mount the cot-
ter pins.
Info
Always change the brake linings in pairs.
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
