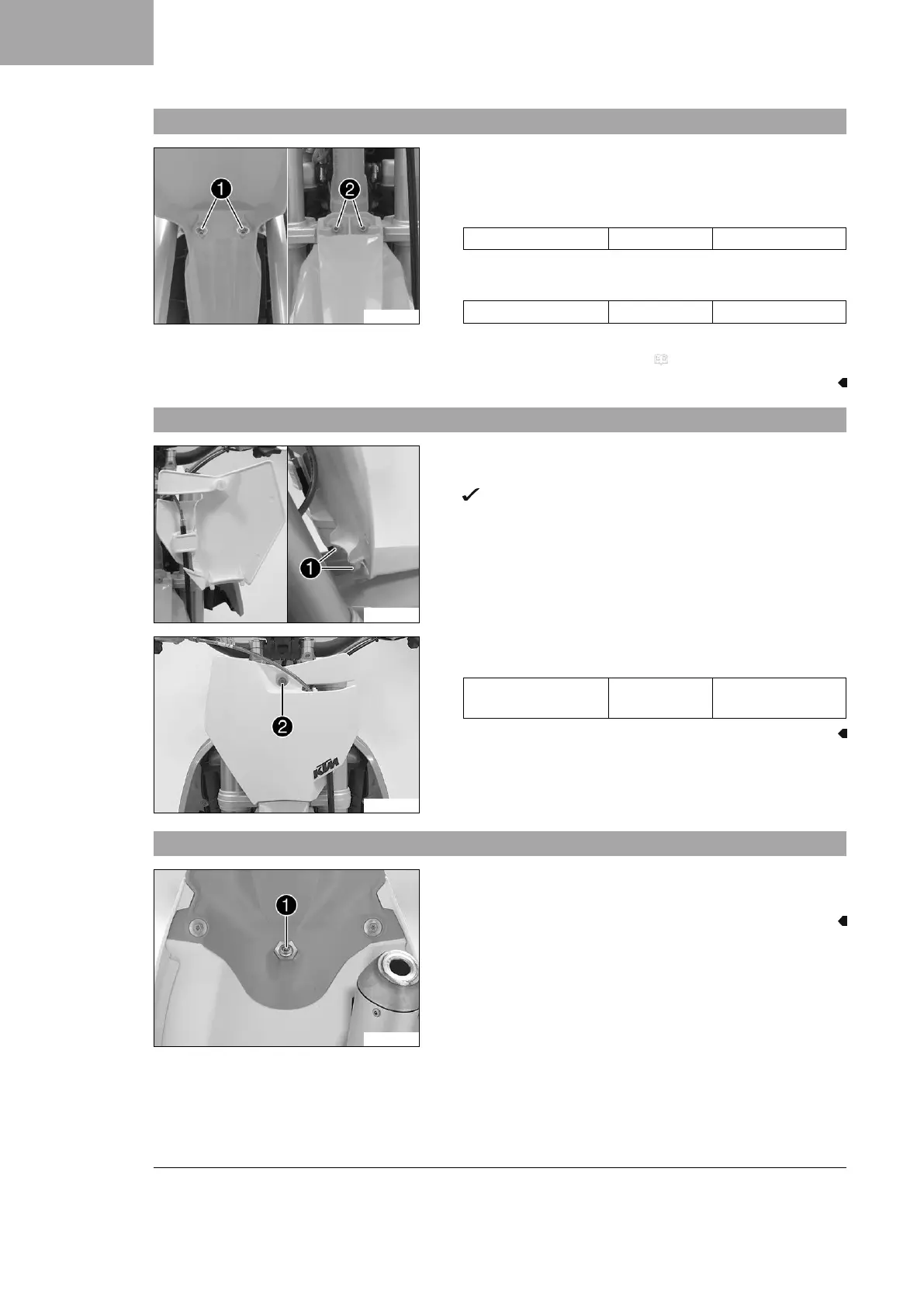

3.4 Installing front fender
V00831-10
Main work
– Position front fender.
–
Mount and tighten screws
1
.
Guideline
Screw, front fender M6 6 Nm (4.4 lbf ft)
–
Mount and tighten screws
2
.
Guideline
Screw, front fender M6 6 Nm (4.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 8)
3.5 Installing the start number plate
V00829-10
– Attach the start number plate to the brake line.
– Position the start number plate.
Holding lugs
1
engage in the fender.
V00828-10
–
Mount and tighten screw
2
.
Guideline
Start number plate
screw
M6 4 Nm (3 lbf ft)
3.6 Removing the seat
V00836-10
–
Remove screw
1
.
– Raise the rear of the seat, pull the seat back, and lift it off.
