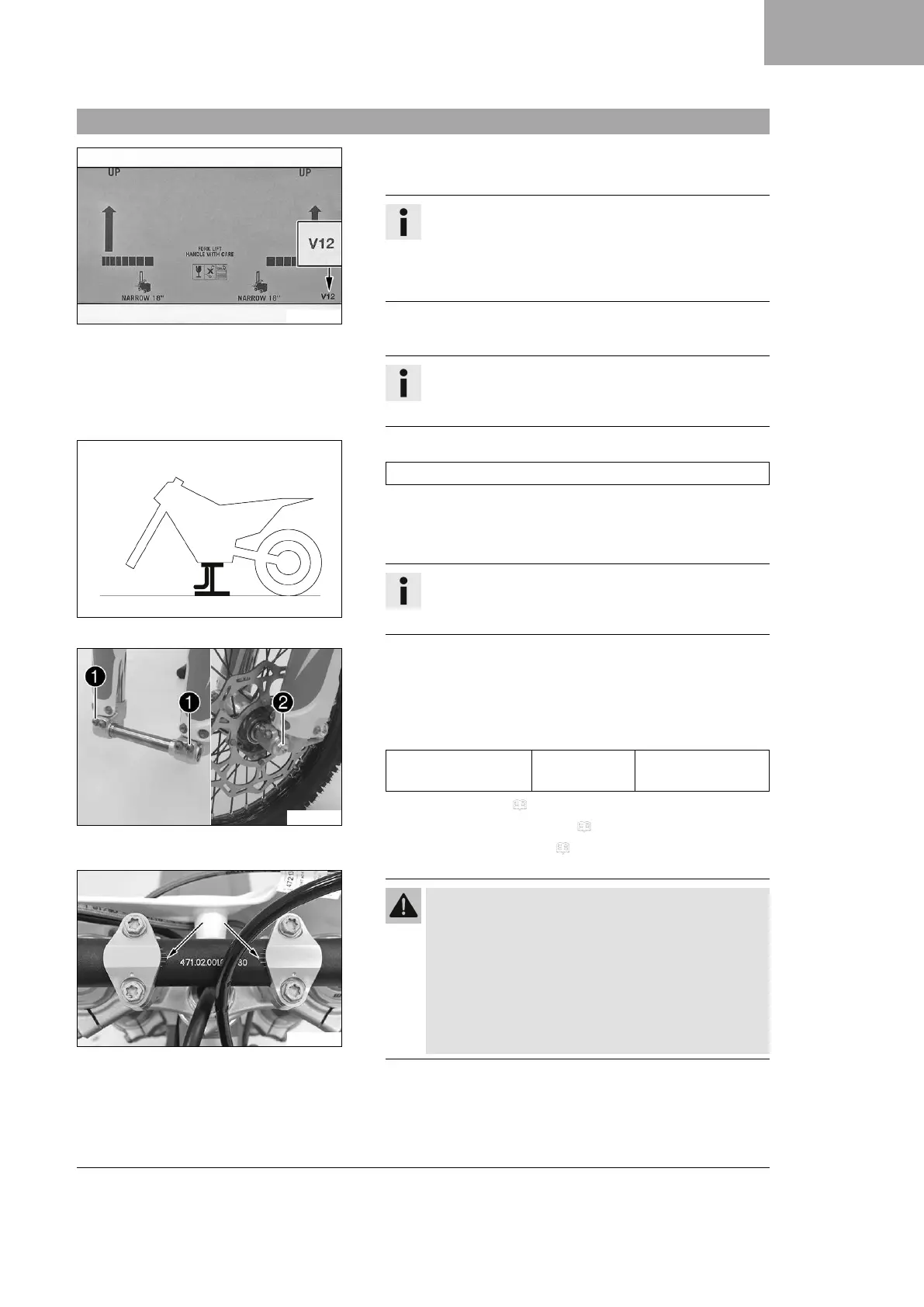

2.1 Unpacking and setting up the vehicle
E00850-10
– Open the box.
– Remove the cable tie and wooden frame.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup,
leave the protective film on the vehicle until you have
finished.
– Remove the separate enclosure and unpack it. Check the sepa-
rate enclosure for completeness.
Info
The procedure for missing components is described in
the Customer Service Manual.
402050-01
– Have a lift stand available.
Lift stand (78929955100)
– Together with an assistant, take the vehicle off the pallet.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.
Info
The procedure in the event of transport damage is
described in the Customer Service Manual.
V01038-10
–
Loosen screws
1
and remove wheel spindle. Jack up the
front wheel into the fork, position it, and insert the wheel spin-
dle.
–
Mount and tighten the screw of wheel spindle
2
.
Guideline
Screw, front wheel
spindle
M20x1.5 35 Nm (25.8 lbf ft)
– Install front fender. ( p. 8)
– Install the start number plate. ( p. 8)
– Install the shock absorber. ( p. 7)
F02439-10
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged
or bent.
– Position the handlebar.
