14 BRAKE SYSTEM
176
A00708-10
–

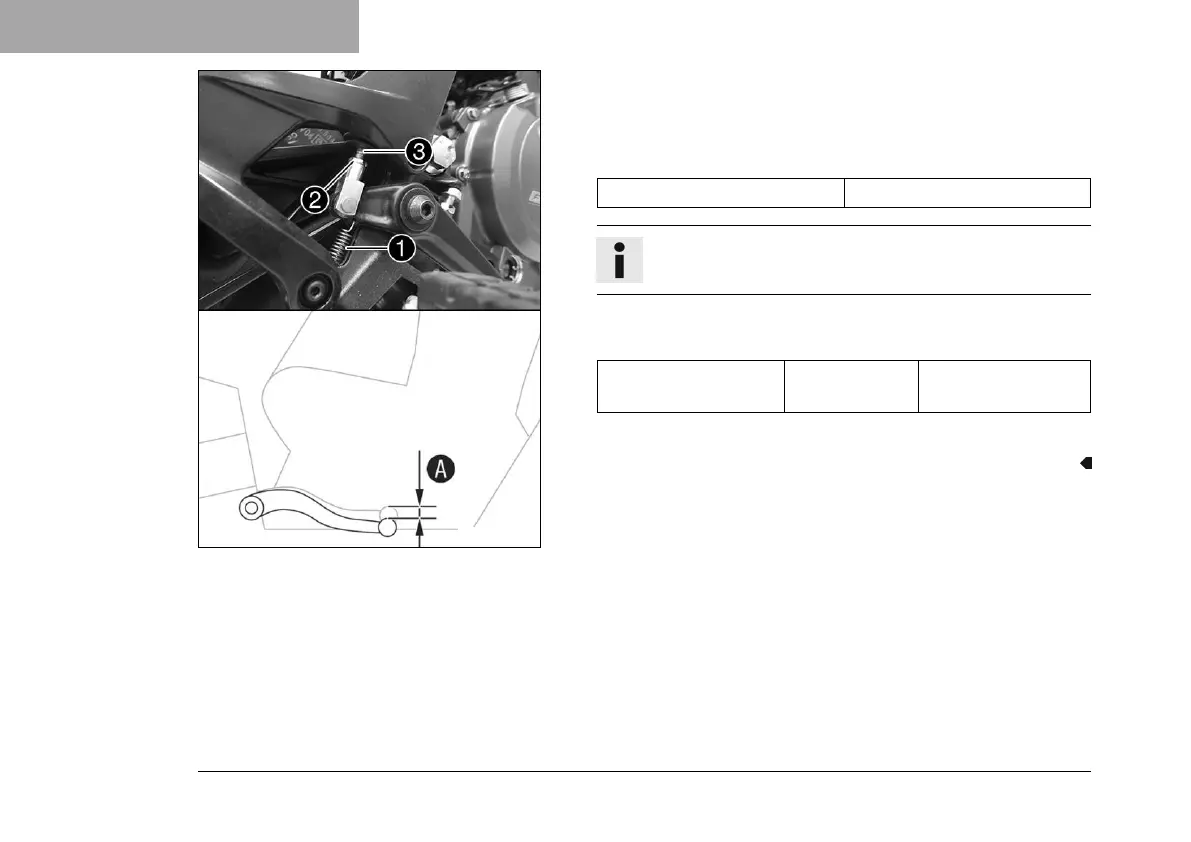

Detach spring
1
.
–
Release nut
2
and use screw
3
to adjust the specified free
travel
A
.
Guideline
Free travel at foot brake lever 3 … 5 mm (0.12 … 0.2 in)
Info
The range of adjustment is limited.
–
Hold screw
3
and tighten nut
2
.
Guideline
Remaining screws,
chassis
M6 9 Nm (6.6 lbf ft)
–
Attach spring
1
.

KTM 390 Adventure 2020 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Power	43 hp (32 kW) @ 9, 000 rpm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Cooling	Liquid cooled
Rear Brake	230 mm Disc, Single-Piston Caliper
Front Tire	100/90-19
Rear Tire	130/80-17
Seat Height	855 mm
Ground Clearance	200 mm
Fuel Capacity	14.5 liters
Weight (Dry)	158 kg
Weight (Wet)	172 kg
Fuel System	Electronic Fuel Injection (EFI)
Frame	Steel trellis
Front Suspension	WP APEX 43 mm USD forks
Rear Suspension	WP APEX monoshock
Front Brake	320 mm disc, 4-piston caliper
Wheelbase	1, 430 mm
