KTM 390 Adventure 2020 User Manual

ELECTRICAL SYSTEM 16
211
A00699-10

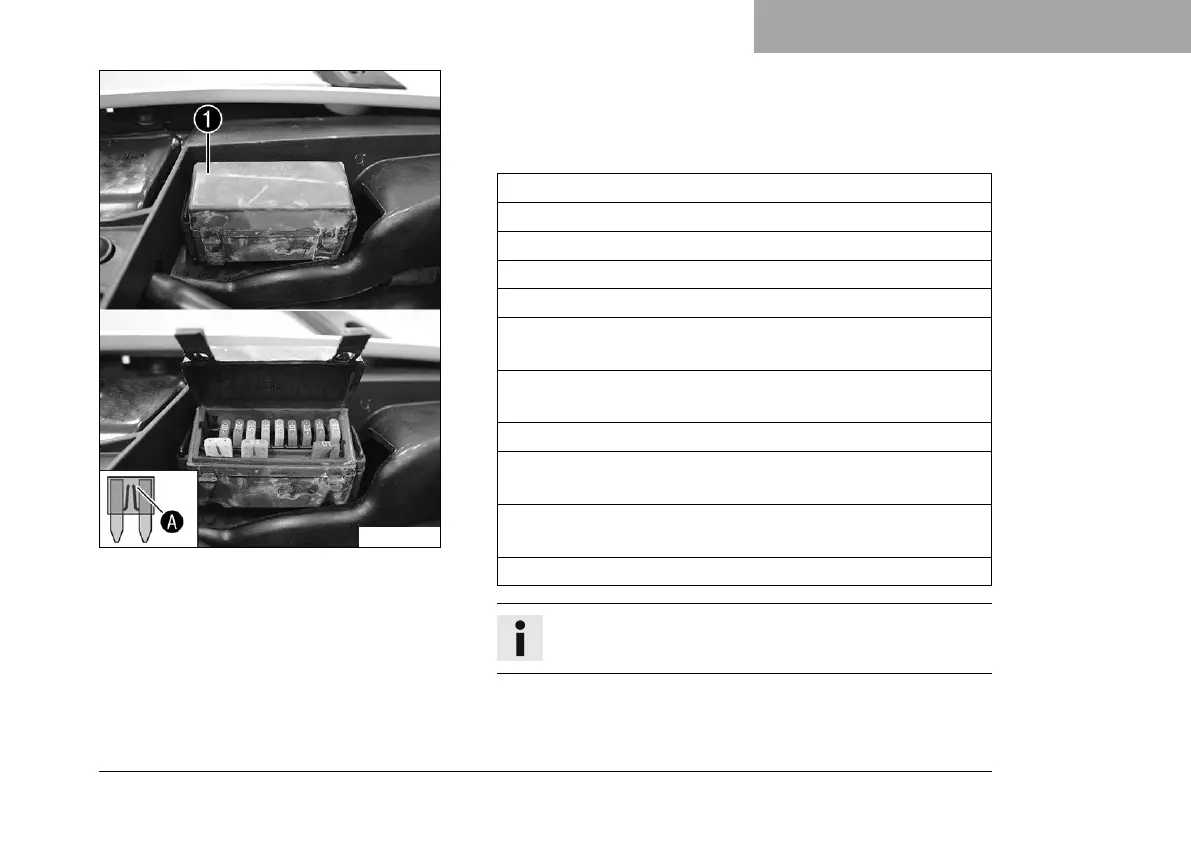

Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
Fuse 1 - not assigned
Fuse 2 - 10 A - combination instrument, fuel pump
Fuse 3 - 10 A - power relay
Fuse 4 - 15 A - ignition coil, start auxiliary relay
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - brake light, turn signal, high beam, low
beam, position light, tail light, license plate lamp
Fuse 7 - 10 A - engine electronics control unit, ABS control
unit
Fuse 8 - 10 A - emergency off
Fuse 9 - 10 A - permanent positive for auxiliary equipment
(ACC1 front)
Fuse 10 - 15 A - ignition positive for auxiliary equipment
(ACC2 front)
Fuse SPARE - 10 A/15 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.

KTM 390 Adventure 2020 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Power	43 hp (32 kW) @ 9, 000 rpm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Cooling	Liquid cooled
Rear Brake	230 mm Disc, Single-Piston Caliper
Front Tire	100/90-19
Rear Tire	130/80-17
Seat Height	855 mm
Ground Clearance	200 mm
Fuel Capacity	14.5 liters
Weight (Dry)	158 kg
Weight (Wet)	172 kg
Fuel System	Electronic Fuel Injection (EFI)
Frame	Steel trellis
Front Suspension	WP APEX 43 mm USD forks
Rear Suspension	WP APEX monoshock
Front Brake	320 mm disc, 4-piston caliper
Wheelbase	1, 430 mm
