SET‑UP 3

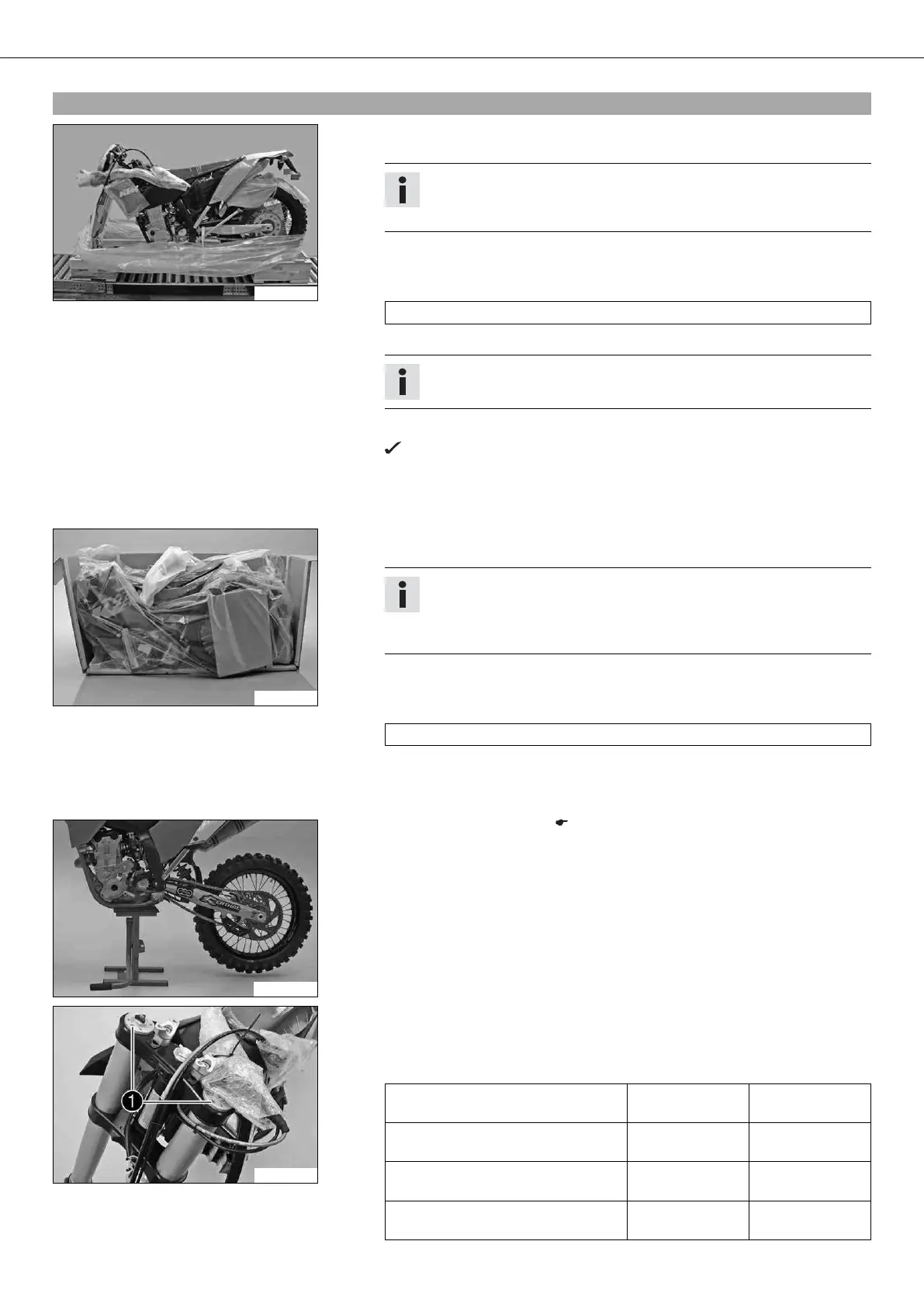

2.1Unpacking and setting up the vehicle
800030-10
Packaging 2
– Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
– Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
– Have a lift stand available.
Lift stand (54829055000)
– Carefully loosen and remove the tensioning belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tensioning belts around the lower triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off of the palette.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.
600811-10
Package 12
– Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
– Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
– Have a lift stand available.
Lift stand (54829055000)
– Together with an assistant, take the vehicle off of the palette.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.
B00148-01
– Install the shock absorber. ( p. 10)
600814-10
– Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
– Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp (EXC USA,
all SIX DAYS models)
M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp
(EXC USA, all SIX DAYS models)
M8 12 Nm
(8.9 lbf ft)
Screw, top triple clamp
(EXC EU/AUS)
M8 20 Nm
(14.8 lbf ft)
Screw, bottom triple clamp
(EXC EU/AUS)
M8 15 Nm
(11.1 lbf ft)
