WORK 7

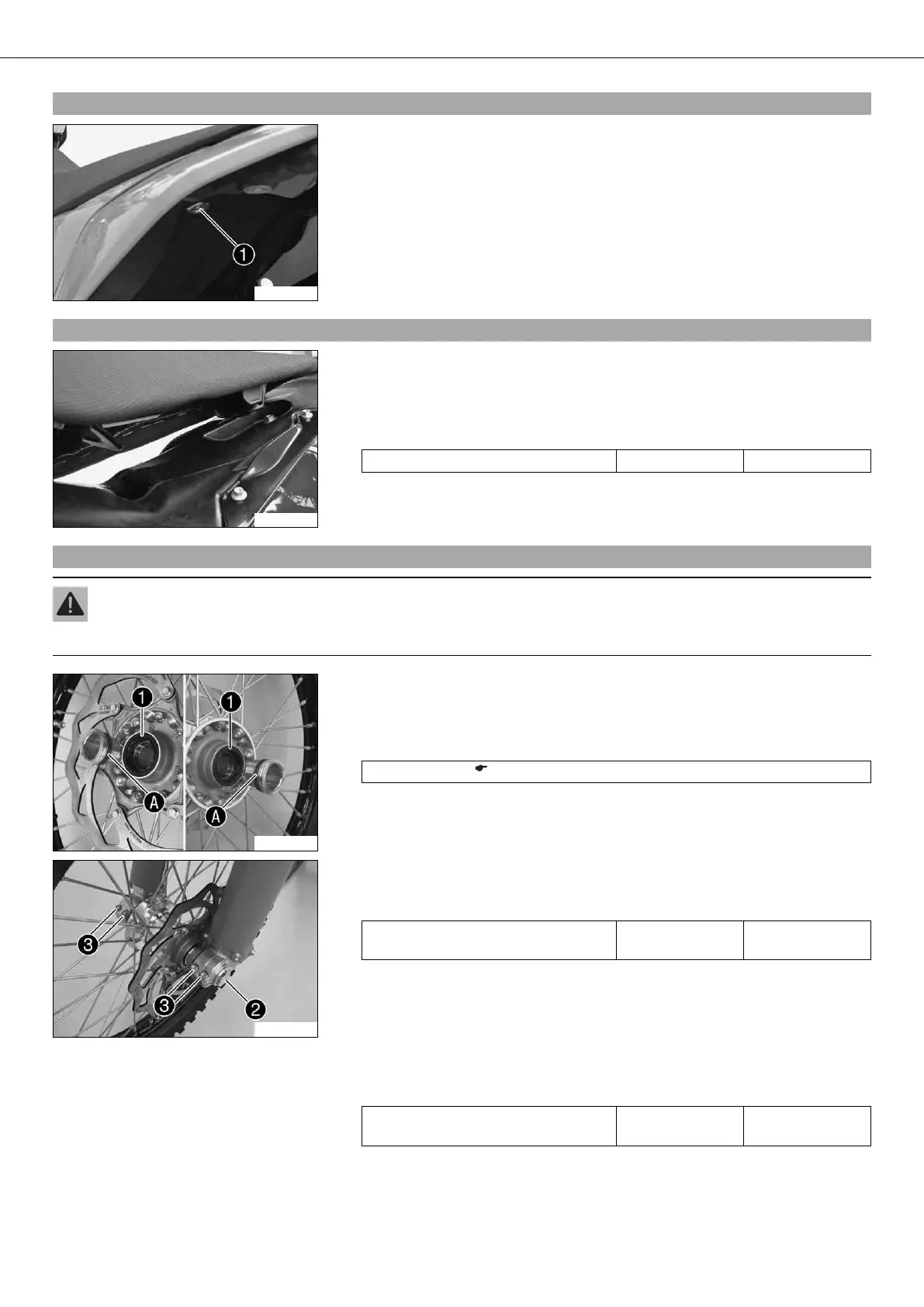

3.1Removing the seat
500080-10
– Remove screw .
– Lift up the seat at the rear, pull it back and then remove it from above.
3.2Mounting the seat
500068-01
– Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear
and simultaneously push it forward.
– Make sure that the seat is correctly locked in.
– Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.3Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
500086-11
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the wheel bearing.
– Clean and grease shaft seal rings and bearing surface of the spacers.
Long-life grease ( p. 13)
– Insert the spacers.
500084-11
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
– Mount and tighten screw .
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
– Activate the hand brake lever multiple times until the brake linings are in contact
with the brake disc.
– Remove the motorcycle from the lift stand.
– Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
– Fully tighten screw .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
