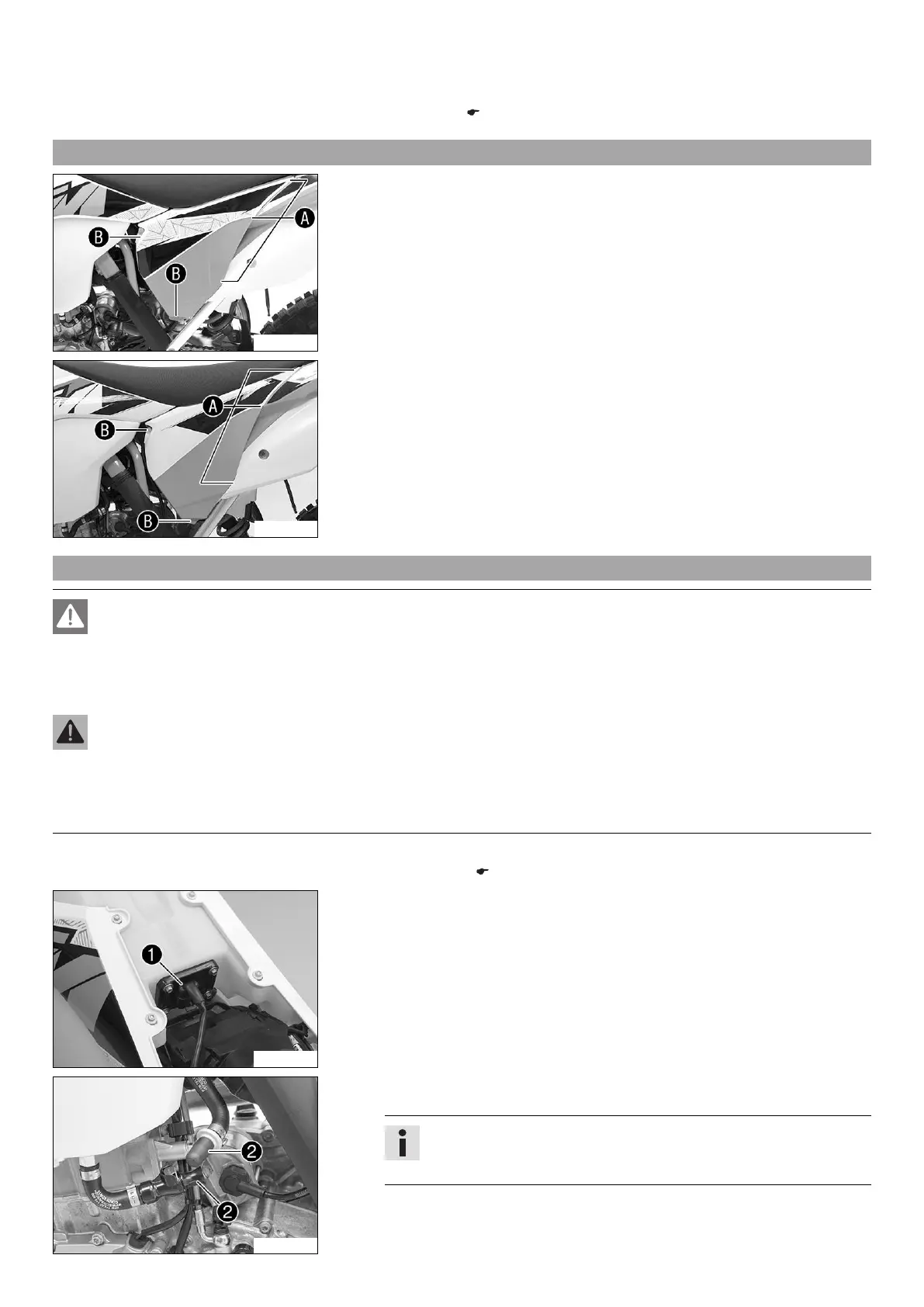

Finishing work
– Mount the seat. ( p. 15)
3.16 Installing the air filter box cover
K00076-11
(EXC AU, EXC EU, EXC SIX DAYS, XC-W)
–
Insert the air filter box cover into rear area
and clip it into front area
.
S00467-11
(500 EXC US)
–
Insert the air filter box cover into rear area
and clip it into front area
.
3.17 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that has been contaminated with
fuel. Store fuel properly in a suitable canister and keep away from children.
Preparatory work
– Remove the seat. ( p. 15)
K00100-10
Main work
–
Detach connector
of the fuel pump.
– Remove the tube from the fuel tank breather.
K00102-10
(EXC AU, EXC EU, EXC SIX DAYS, XC-W)
– Thoroughly clean the plug-in connection of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the
fuel line clogs the injection valve.
– Disconnect the plug-in connection of the fuel line.
