17 CARBURETOR
112

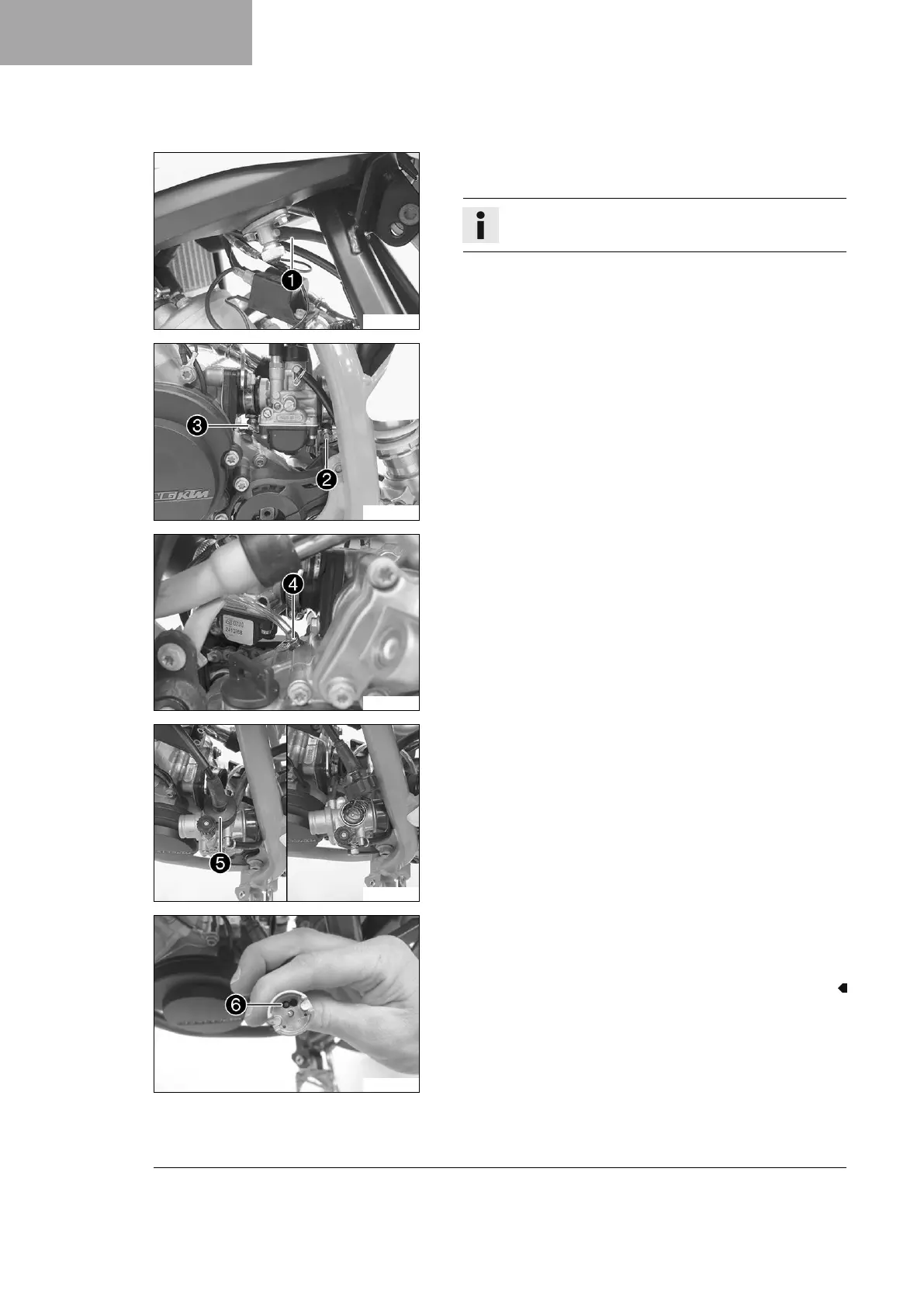

Preparatory work
– Turn the knurled screw on the fuel tap all the way clockwise.
R00564-10
Main work
–
Pull off fuel hose
1
.
Info
Remaining fuel may flow out of the fuel hose.
R04489-10
–
Loosen hose clip
2
.
–
Loosen hose clip
3
.
R00566-10
–
Push back hose clamp
4
and pull off the vent hose.
– Pull the carburetor out of the intake flange.
– Pull the carburetor forward out of the inlet sleeve.
R04490-10
–
Remove throttle slide cover
5
.
– Pull the throttle slide out of the carburetor.
– Drain the remaining fuel.
G01287-10
– Pull back the spring retainer and throttle slide spring.
–
Detach throttle cable wire
6
.
– Take off the throttle slide.
