KTM 50 SX 2020 User Manual

11 SERVICE WORK ON THE CHASSIS
64

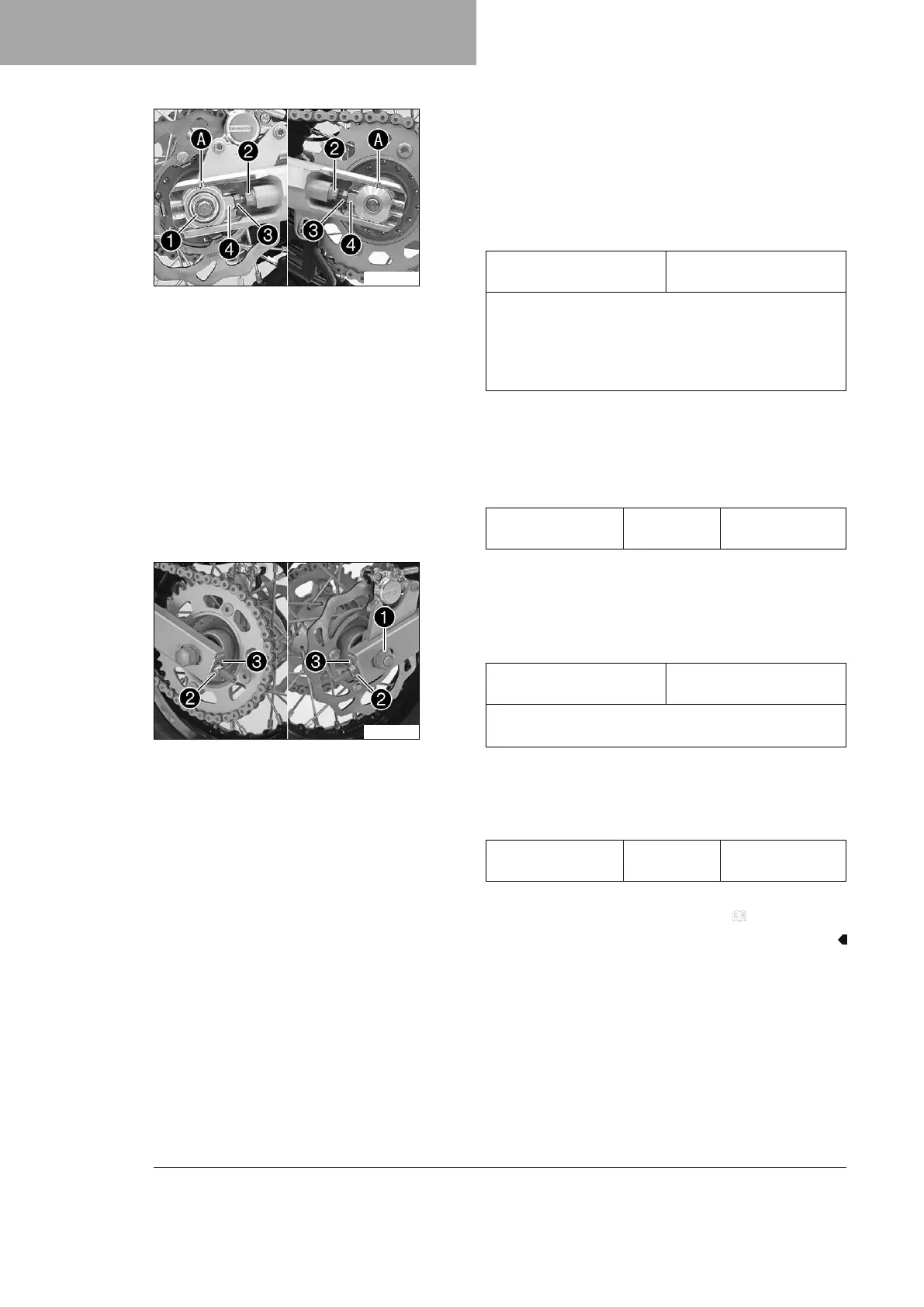

F02198-10
Main work
(50 SX)
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left and right.
Guideline
Chain tension 5 … 8 mm (0.2 …
0.31 in)
Turn the adjusting screws
3
on the left and right
so that the markings on the left and right chain
adjusters
4
are in the same position relative to the
reference marks
A
. The rear wheel is then correctly
aligned.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel
spindle
M12x1 40 Nm
(29.5 lbf ft)
101947-10
(50 SX Mini)
–
Loosen nut
1
.
–
Adjust the chain tension by turning adjusting nuts
2
left
and right.
Guideline
Chain tension 5 … 8 mm (0.2 …
0.31 in)
Turn adjusting nuts
2
equally on the left and right.
The rear wheel must be aligned with the front wheel.
–
Make sure that the chain adjuster support plates
3
are in
contact with adjusting nuts
2
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel
spindle
M12x1 40 Nm
(29.5 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)
