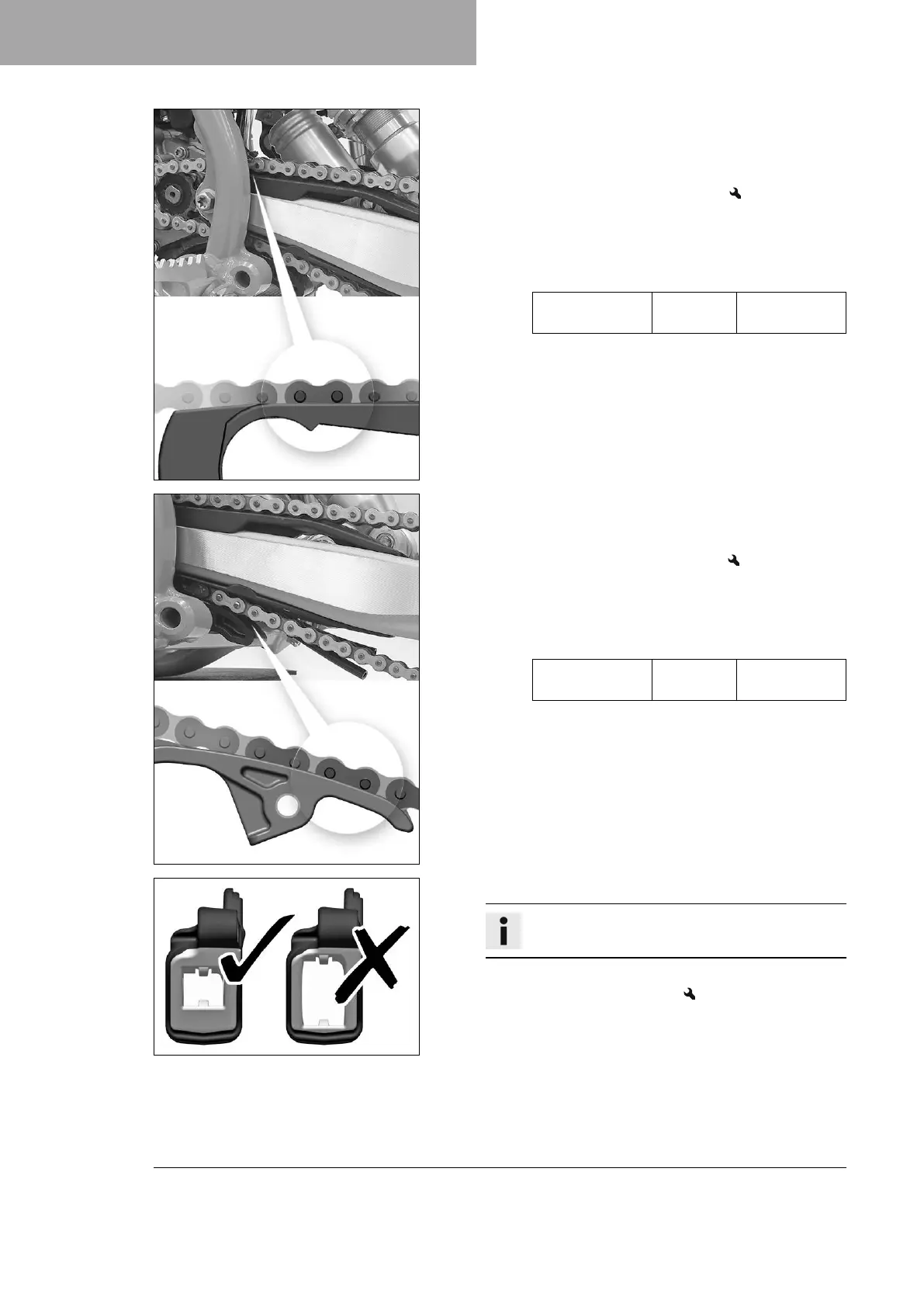

11 SERVICE WORK ON THE CHASSIS
66
F02199-10
(50 SX)
– Check the chain sliding guard for wear.
» If the ridge is worn down to the level of the main cor-
pus:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the screw of the chain sliding guard.
Guideline
Screw, chain
sliding piece
M6 3 Nm
(2.2 lbf ft)
F02200-10
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or
below the chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten screw on the chain sliding piece.
Guideline
Screw, chain
sliding piece
M8 15 Nm
(11.1 lbf ft)
400985-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
