6 CONTROLS 12
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
601934-10

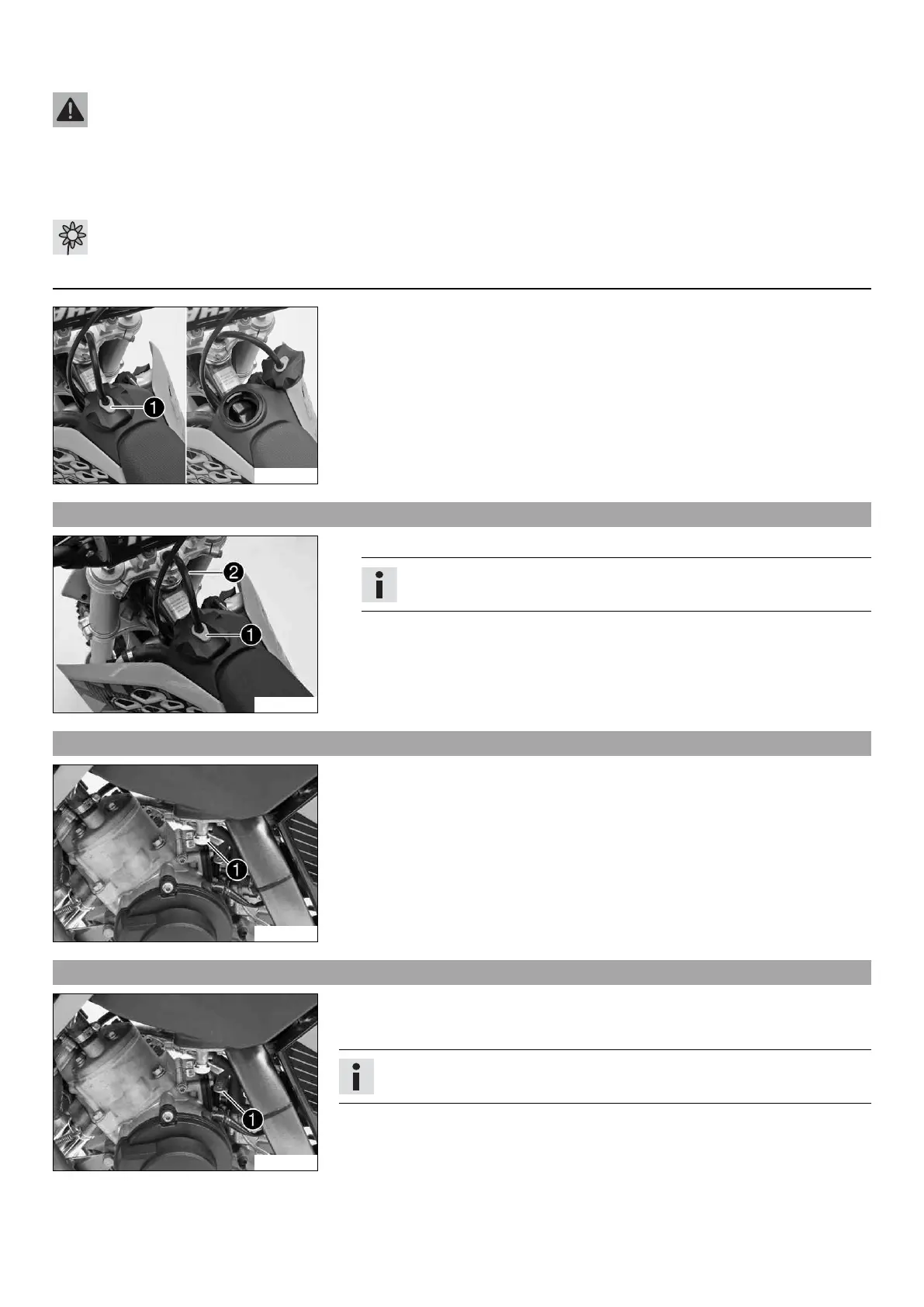

– Press release button 1, turn the filler cap counterclockwise, and lift it free.
6.6 Closing the filler cap
601935-10
– Replace the filler cap and turn clockwise until the release button 1 locks in place.
Info
Run the fuel tank breather hose 2 without kinks.
6.7 Fuel tap
601937-11
Fuel tap 1 is on the left of the fuel tank.
Possible states
• Fuel tap is closed – The knurled screw is turned all the way clockwise. Fuel cannot
flow out of the fuel tank.
• Fuel tap is open – The knurled screw is turned all the way counterclockwise. Fuel
can flow out of the fuel tank.
6.8 Choke
601937-10
Choke lever 1 is fitted on the left side of the carburetor.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This results in a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated – The choke lever is pushed down all the way.
• Choke function deactivated – The choke lever is pushed up all the way.
