KTM 690 SMC R User Manual

14 ELECTRICAL SYSTEM 122
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 75)
– Remove the battery cover.
– Pull the EFI control unit off of the holder and set it to one side.
B01979-10

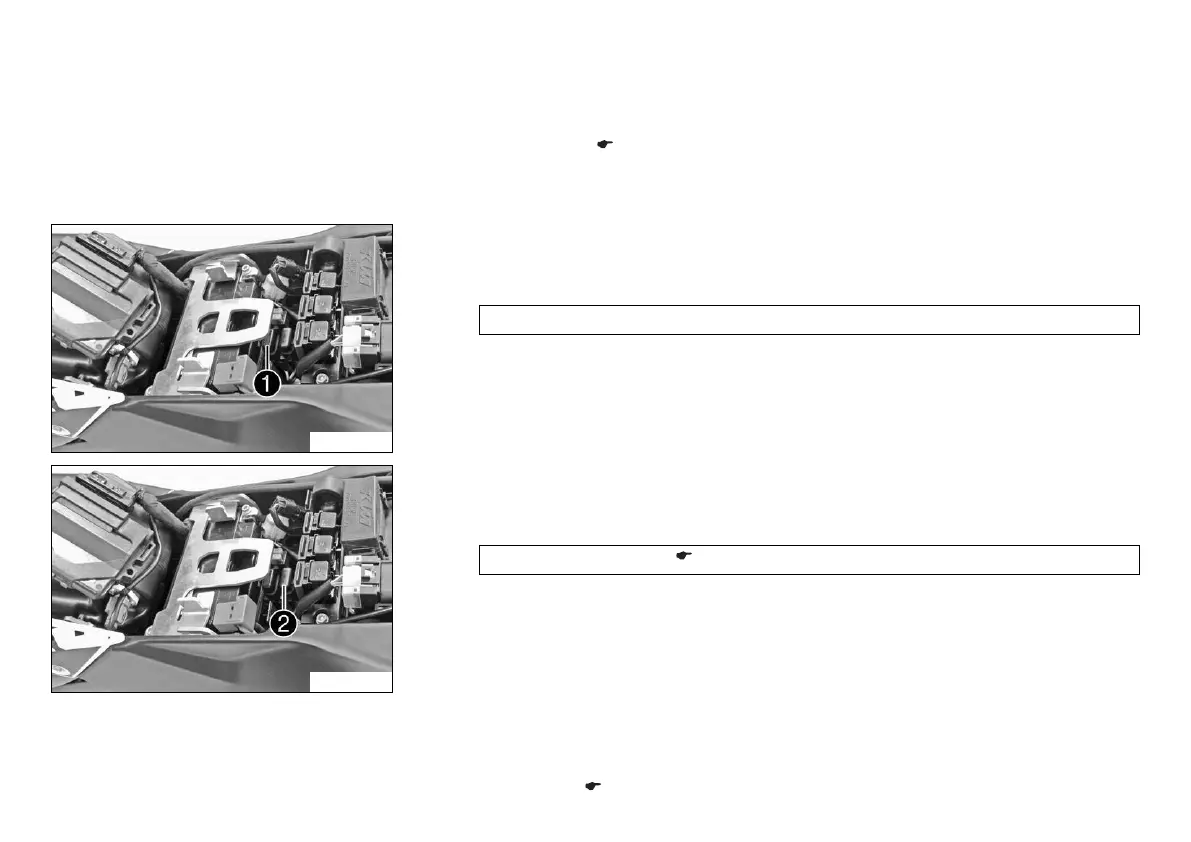

To change the fuse of the ABS hydraulic unit:
–
Take off protection cap

and remove the fuse.
– Insert a new fuse.
Fuse (58011109115)
– Mount the protection cap.
B01979-11
To change the fuse of the ABS return pump:
–
Take off protection cap

and remove the fuse.
– Insert a new fuse.
Fuse (58011109125) ( p. 175)
– Mount the protection cap.
Finishing work
– Position the EFI control unit.
– Mount the battery cover.
– Mount the seat. ( p. 75)
