12 BRAKE SYSTEM
74
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
Warning
Danger of accidents Brake linings which have not been approved alter the braking efficiency.
Not all brake linings are tested and approved for KTM motorcycles. The structure and friction coefficient
of the brake linings, and thus their brake power, may vary greatly from that of original brake linings.
If brake linings are used that differ from the original equipment, compliance with the original homologa-
tion is not guaranteed. In this case, the vehicle no longer corresponds to its condition at delivery and the
warranty shall be void.
– Only use brake linings approved and recommended by KTM.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
V00865-11

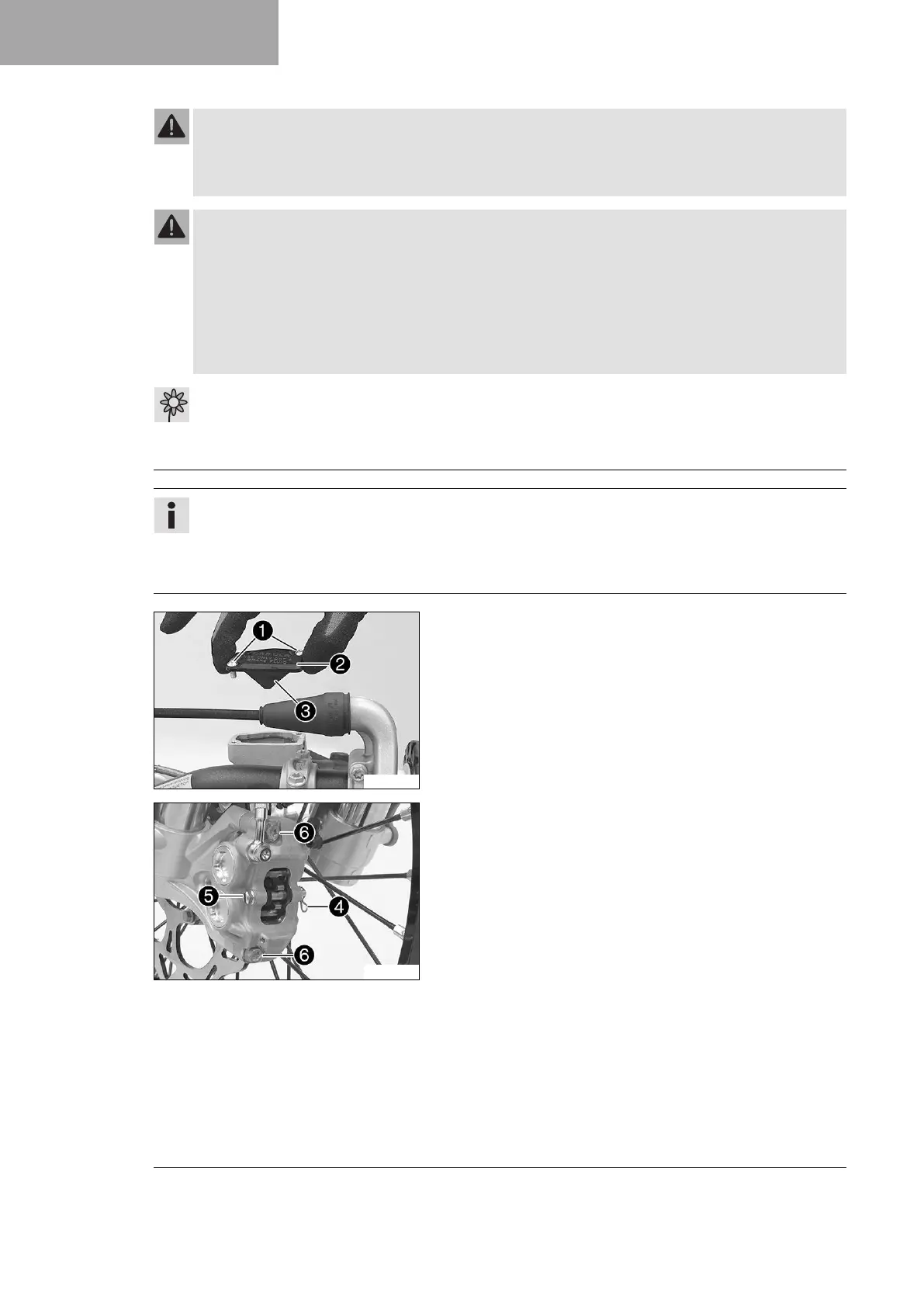

– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Remove screws
1
.
–
Remove cover
2
with membrane
3
.
S01168-10
–
Remove cotter pin
4
.
–
Loosen pin
5
.
–
Remove screws
6
and spacers.
– Press back the brake linings with a light lateral tilting of the
brake caliper on the brake disc. Carefully pull the brake caliper
backward from the brake disc.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir; if
necessary, draw some off.
