KTM 890 DUKE R User Manual

SERVICE WORK ON THE CHASSIS 13
69

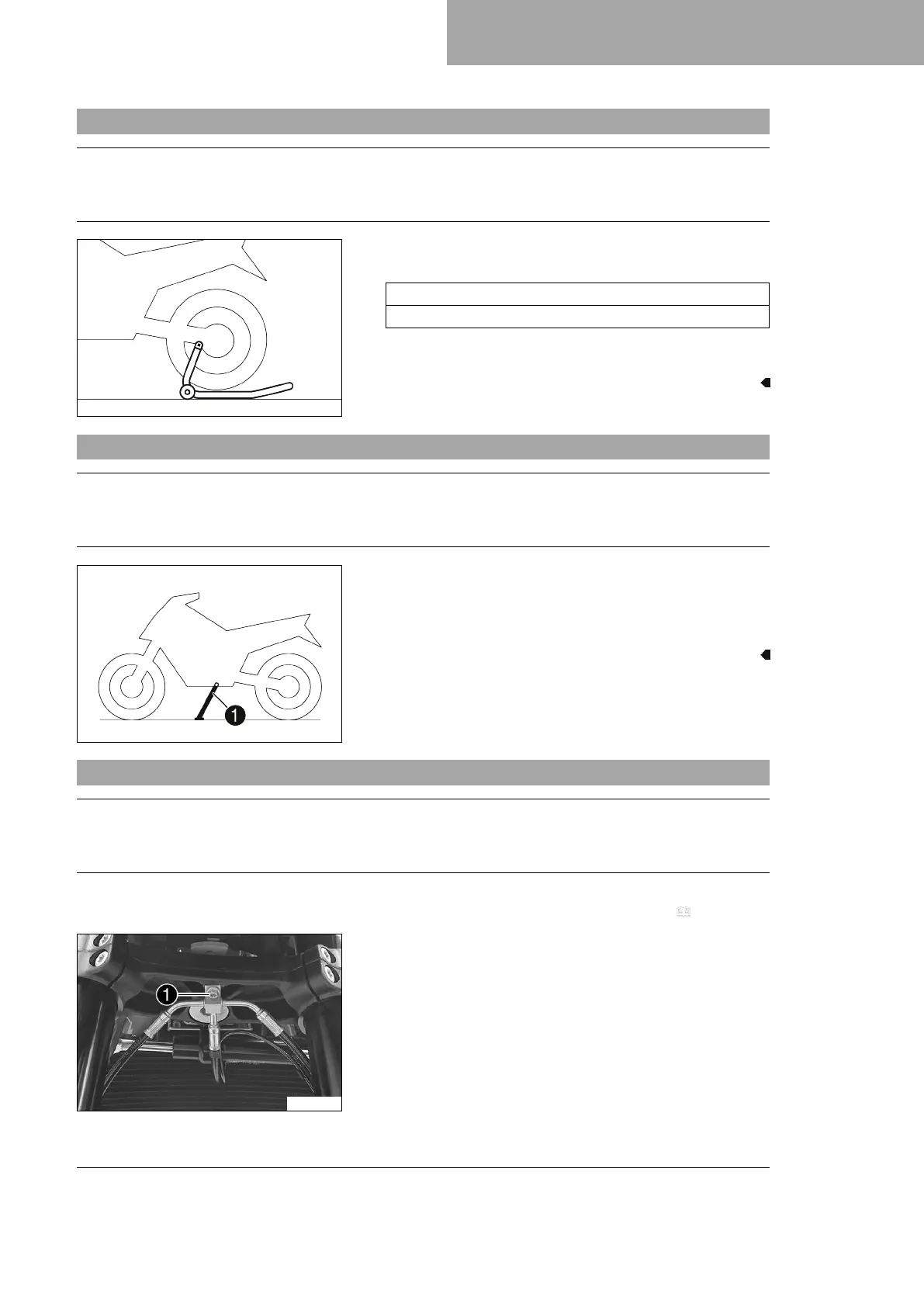

13.1 Raising the motorcycle with the rear lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402346-01
– Mount the supports of the lifting gear.
– Insert the adapter in the rear lifting gear.
Retaining adapter (63529955000)
Rear wheel work stand (69329955000)
– Stand the motorcycle upright, align the lifting gear to the
swingarm and the adapters, and raise the motorcycle.
13.2 Removing the rear of the motorcycle from the lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402029-10
– Secure the motorcycle against falling over.
– Remove the rear lifting gear and lean the vehicle on side
stand
1
.
– Remove the retaining adapter from the link fork.
13.3 Lifting the motorcycle with the front lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 69)
F02736-10
Main work
–
Remove screw
1
.
