KTM 990 SUPER DUKE User Manual

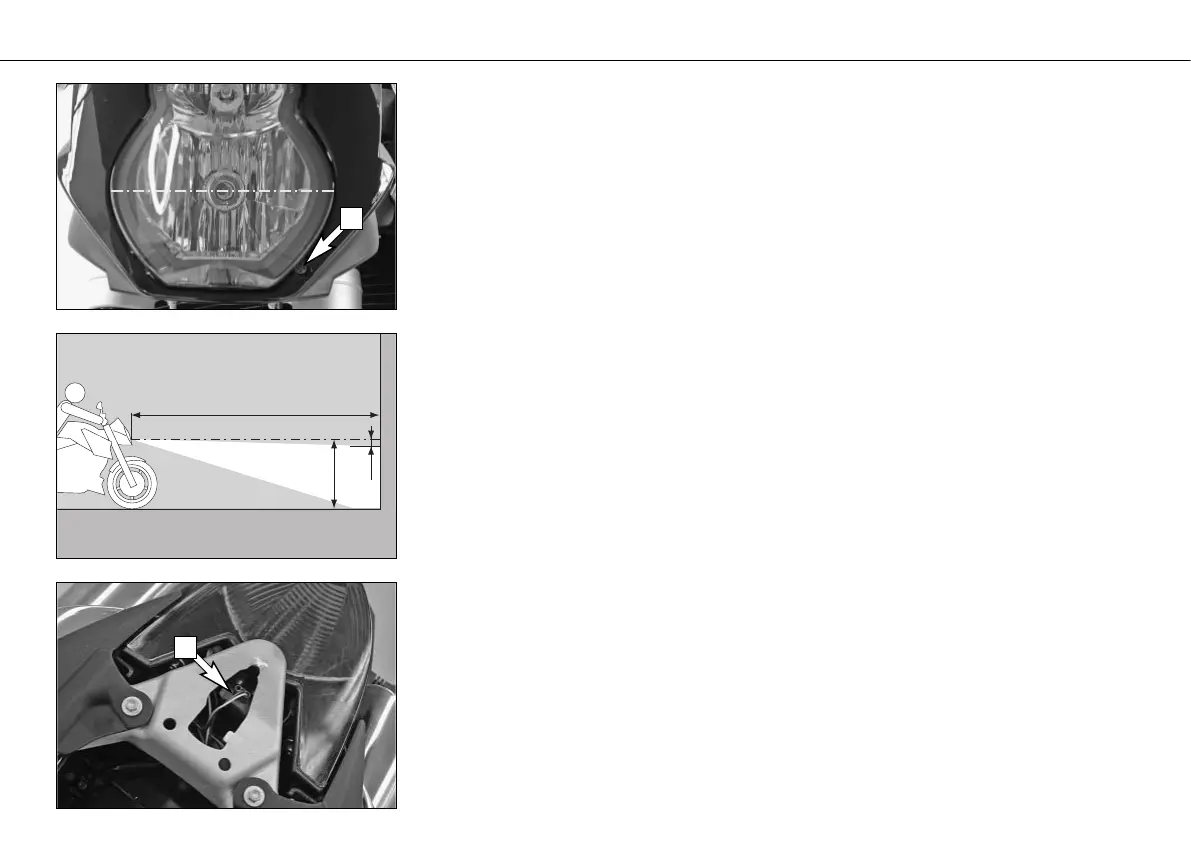

Adjusting the headlight range
The payload can make it necessary to correct the headlight range.
The headlight range can be adjusted with the adjusting screw [1]. Turning in a clockwise
direction will increase the headlight range, turning in a counterclockwise direction will
reduce the headlight range.
CONTROL:
Make a mark on a light colored wall behind a horizontal surface, at the height correspon-
ding to the center of the headlight. Position your motorcycle 5 meters (16.4 ft) from the
wall in a fully loaded condition (baggage, driver, passenger) and switch on the low beam.
The light/dark cut-off should be 5 cm (2 in) under the mark (see drawing).
Replacing the brake light and taillight bulbs
Remove the seat.
BULB FOR BRAKE LIGHT:
Turn the bulb socket [2] approx. 30° in a counterclockwise direction and pull it out of the
taillight housing. Slightly press in the bulb, turn approx. 30° in a counterclockwise direc-
tion and remove it from the socket.
Proceed in the reverse order to mount a new bulb.
MAINTENANCE WORK ON CHASSIS AND ENGINE »
58
5 m
x
5 cm
1
2

KTM 990 SUPER DUKE Specifications

General

Engine Type	V-Twin, 4-stroke
Displacement	999 cc
Bore x Stroke	101 mm x 62.4 mm
Compression Ratio	11.5:1
Fuel System	Electronic fuel injection
Transmission	6-speed
Front Suspension	WP USD 48 mm
Rear Suspension	WP monoshock
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	186 kg
Fuel Capacity	15 liters
Power	120 hp @ 9, 000 rpm
Torque	100 Nm @ 7000 rpm
Cooling System	Liquid cooled
Frame	Chromium-molybdenum trellis frame
Front Brake	2 x 320 mm discs, 4-piston calipers
Rear Brake	240 mm disc, 2-piston caliper
