3 WORK 9
F00697-10
–
Close the cover
4
and push down slightly.
The cover engages with an audible click.
Finishing work
– Mount the seat. ( p. 6)
– Set the time and date.

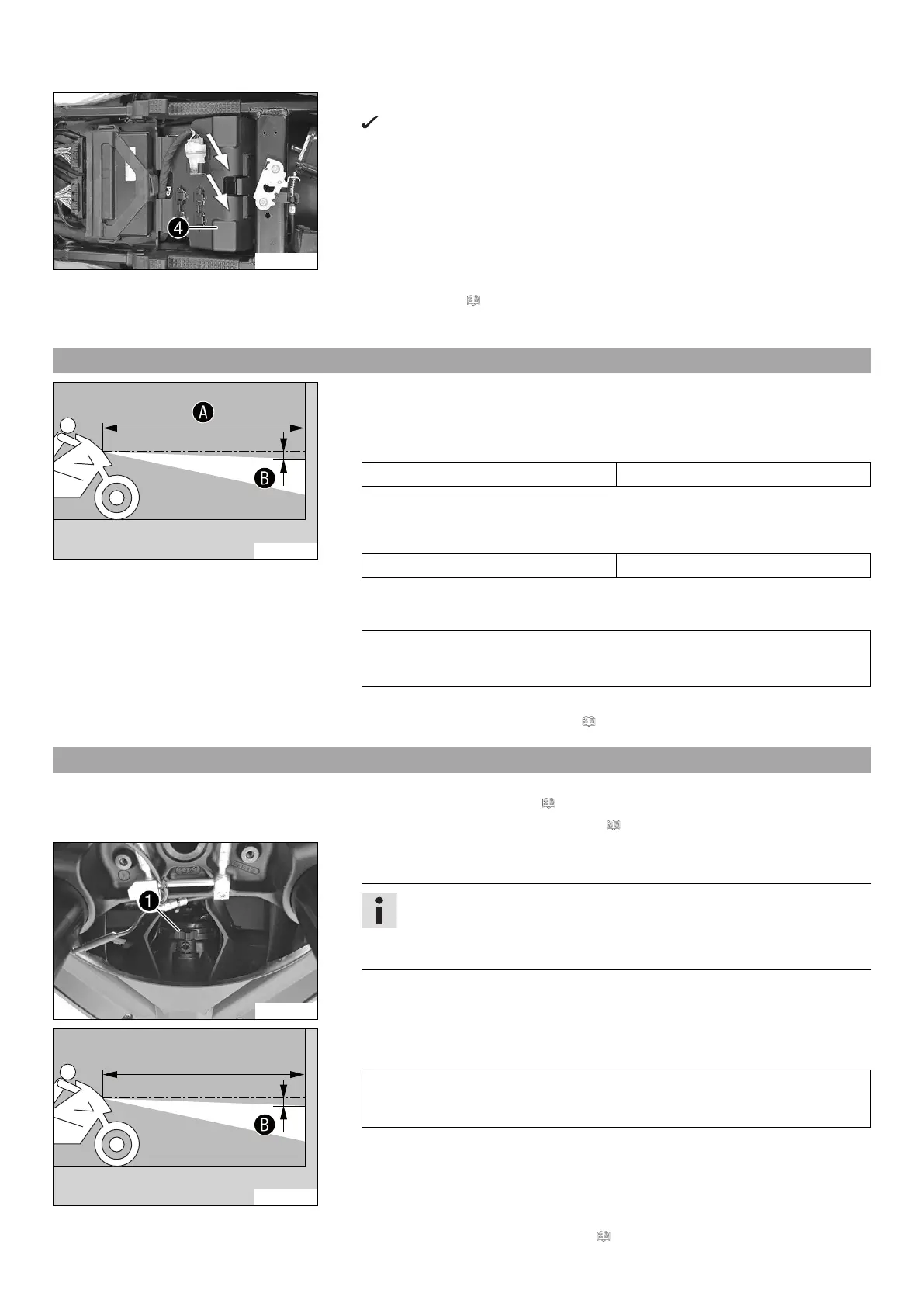

3.7 Checking the headlight setting
400726-10
– Park the vehicle on a horizontal surface in front of a light-colored wall and make a
mark at the height of the center of the low beam headlight.
–
Make another mark at a distance
B
under the first mark.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
A
from the wall and
switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the headlight setting.
The light-dark boundary must lie exactly on the lower mark when the motorcycle
is ready to operate with the rider mounted along with any luggage and a passen-
ger if applicable.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 9)
3.8 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 9)
– Remove the bottom triple clamp cover. ( p. 10)
F00693-10
Main work
–
Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn counterclockwise to
reduce the headlight range.
If you have a payload, you may have to correct the headlight range.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on the lower mark
B
when the motor-
cycle is ready to operate with the rider mounted along with any luggage and a
passenger if applicable.
Finishing work
– Install the bottom triple clamp cover. ( p. 10)
