ENGLISH
26

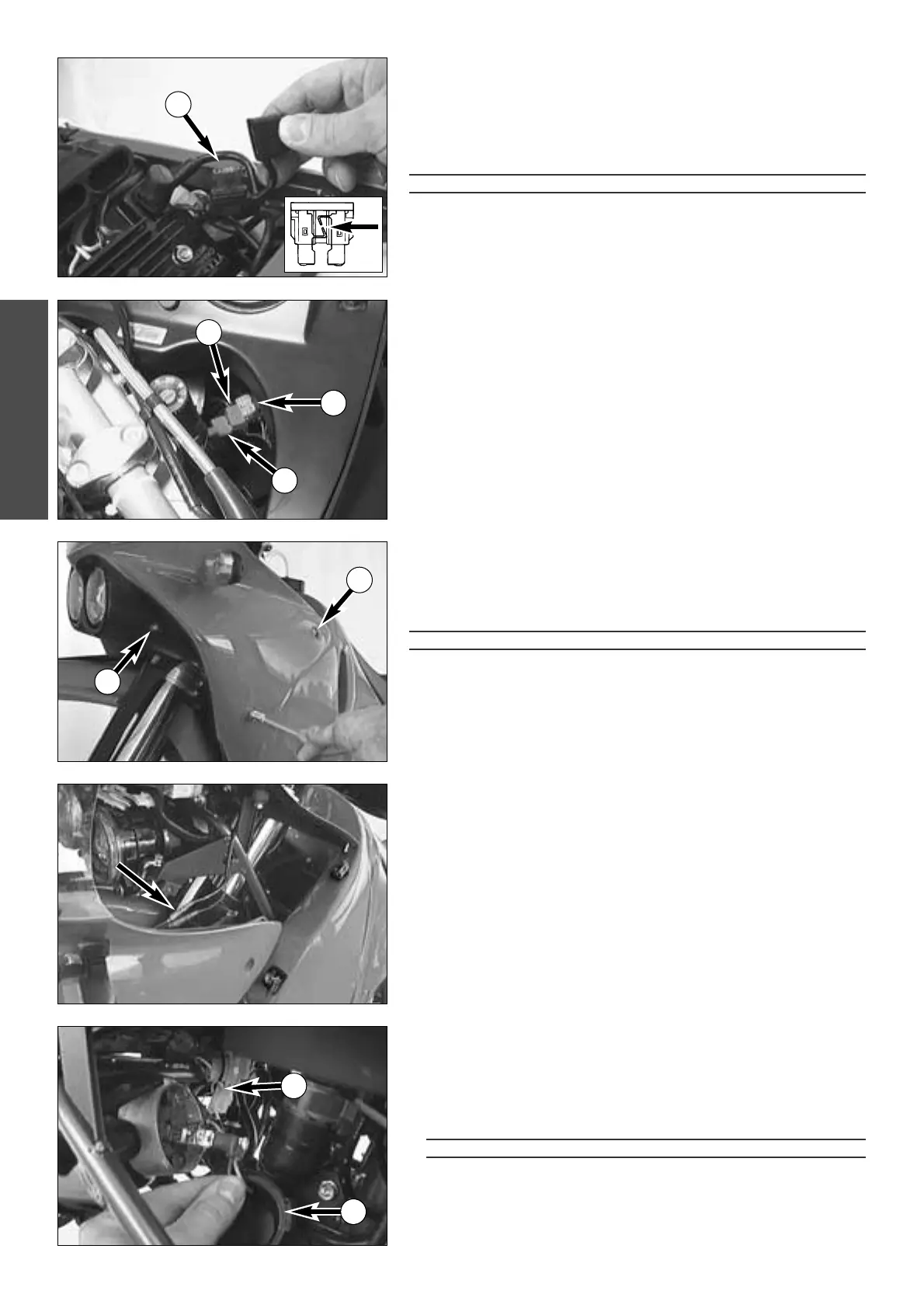

Main fuse
Located near the battery under the seat, the main fuse 1 protects all power
consumers.
Replace a blown fuse only with an equivalent one. If a new fuse that has
just been set in gets blown again, you are strongly advised to have it ins-
pected by a KTM dealer.
The fuse capacity is 10 Ampere.
!
CAUTION
!
U
NDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE
ALLOWED TO BE
“REPAIRED”. AN INEXPERT TREATMENT COULD DAMAGE THE WHOLE
ELECTRICAL INSTALLATION
!
Fuses for individual power-consuming units
Additional fuses separately protecting different power-consuming units are
mounted under the cockpit cover.
The fuses can be pulled out underneath the cockpit cover for replacement.
Fuse
2
(10 Ampere) protects the following power-consuming units:
– headlight
– parking light
– tripmaster
Fuse
3
(10 Ampere) protects the following power-consuming units:
– flasher lights
– brake light - foot brake lever
– horn
– radiator fan
Fuse
4
(10 Ampere) protects the following power-consuming units:
– ignition
– starter system
– brake light - hand brake lever
Replace a blown fuse only with an equivalent one. If a new fuse that has
just been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
!
CAUTION
!
U
NDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE
ALLOWED TO BE
“REPAIRED”. AN INEXPERT TREATMENT COULD DAMAGE THE WHOLE
ELECTRICAL INSTALLATION
!
Removing and mounting the headlight mask *
The headlight mask must be removed to replace the headlight lamps, the
indicator lamps or the tachometer lamps.
REMOVING THE HEADLIGHT MASK
– Use the wrench from the tool kit to remove the 6 screws
5 of the head-
light mask.
– Swing the headlight mask forward, disconnect the flasher cables and
remove the mask.
MOUNTING THE HEADLIGHT MASK
– Hold the headlight mask and connect the flasher cables.
– Position the headlight mask and replace the screws without tightening
them yet.
– Tighten all 6 screws at once with 5 Nm (4 ft.Ibs).
Replacing the headlight bulb *
The headlights are accessible after you have removed the headlight mask.
– Turn the cover
6 counterclockwise, and remove it.
– Detach the spring bar
7, and remove the lamp from the headlight
– insert and connect a new H1 lamp (12 V 55 W)
!
CAUTION
!
T
HE GLASS OF THE BULB MUST BE FREE OF OIL AND GREASE. THE HEAT CAUSES THE
OIL TO VAPORIZE
. THE RESULTING VAPOR ON THE REFLECTOR DECREASES THE
BRIGHTNESS OF THE HEADLIGHT
.
– Start the engine and check the headlight for proper functioning.
– Place the cover in position, and turn it clockwise.
5
5
1
6
7
2
3
4
