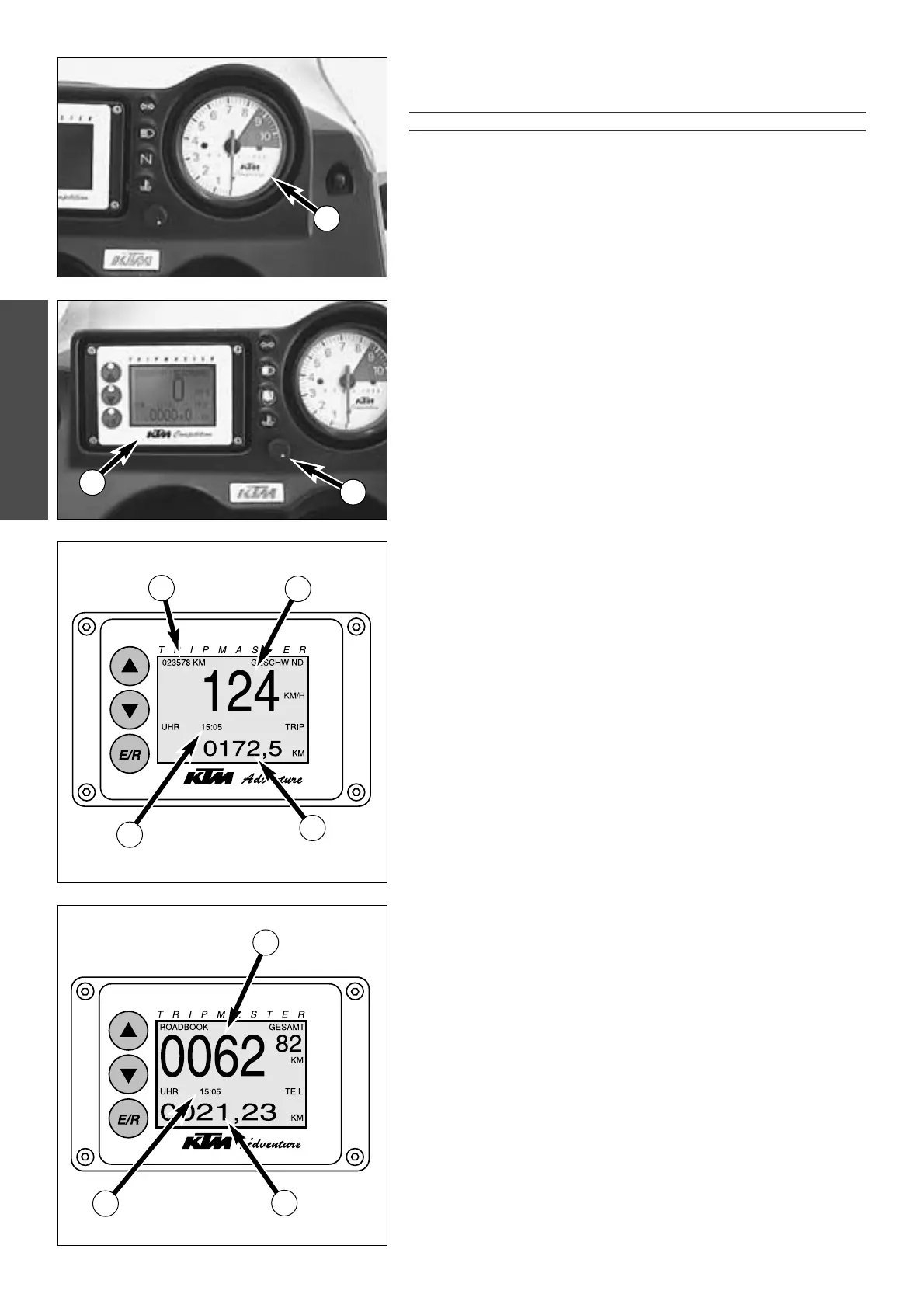

Tachometer
The tachometer 1 shows the engine speed in revolutions per minute (rpm).
Do not push the engine into the red zone, which begins at 8500 rpm.
!
CAUTION
!
–M
AXIMUM RECOMMENDED ROTATION RATE IS 8500 RPM. ROTATION RATES EXCEE-
DING 8500
RPM WILL SHORTEN YOUR ENGINE
’S LIFE. REFER ALSO TO THE SECTION
ON RUNNING IN
YOUR MOTORCYCLE TO BE FOUND IN THE
“D
RIVING
I
NSTRUCTIONS
”
CHAPTER
.
–THE TACHOMETER IS NOT SUPPOSED TO GET IN CONTACT WITH FUEL. WHIPE OFF
SPLASHED FUEL ON THE PLASTIC PARTS IMMEDIATELY
, OTHERWISE THE PLASTIC PARTS
MIGHT GET DAMAGED VERY SOON
.
Tripmaster
The tripmaster 2 is a complete electronic device with a clock and different
mileage counters that are helpful during roadbook tours.
The display is switched on and off together with the ignition.
The contrast of the display can be adjusted with the contrast potentiometer
3.
Turn it clockwise to increase and counterclockwise to reduce the contrast.
Display BASIC FUNCTION
A indicates the total number of kilometers that you have covered so far
with your motorcycle.
B indicates the speed.
C is the day mileage counter.
Press the
key to reset the day mileage counter to 0.
D indicates the time.
NOTE:
If you have pressed the
E/R key by mistake, i.e. if you have switched to
the parametrization function but do not wish to change the basic settings,
simply press the
E/R button until DATA SAVING appears in the display.
Display ROADBOOK
D indicates the time.
E indicates the total distance* (e.g. the total distance covered in one day).
The total distance display is useful for roadbook tours. It is recommended
to reset the display to 0 at the beginning of every stage. Thus you can
simply compare the distance covered with the values of the roadbook.
If the displayed value is found to deviate from the roadbook value at a
checking point, it is possible to correct the value (see chapter Tripmaster
display value, Changing the total distance value).
F indicates the stretch*.
The stretch display is also very useful for roadbook tours. The stretch
value can, for example, be reset to 0 after refuelling, thus allowing easy
estimation of the fuel reserve.
To reset the stretch value to 0 depress the
button for more than 2
seconds.
To return to the basic function display press the
button.
Instructions for the changing of the basic settings can be found in the chapter
Tripmaster parametrization.
* Display values B and E can be exchanged, depending on the basic setting.
ENGLISH
6
D
D
F
E
1
2
3
A
B
C
