PARTS
OM 0377SB-A
29

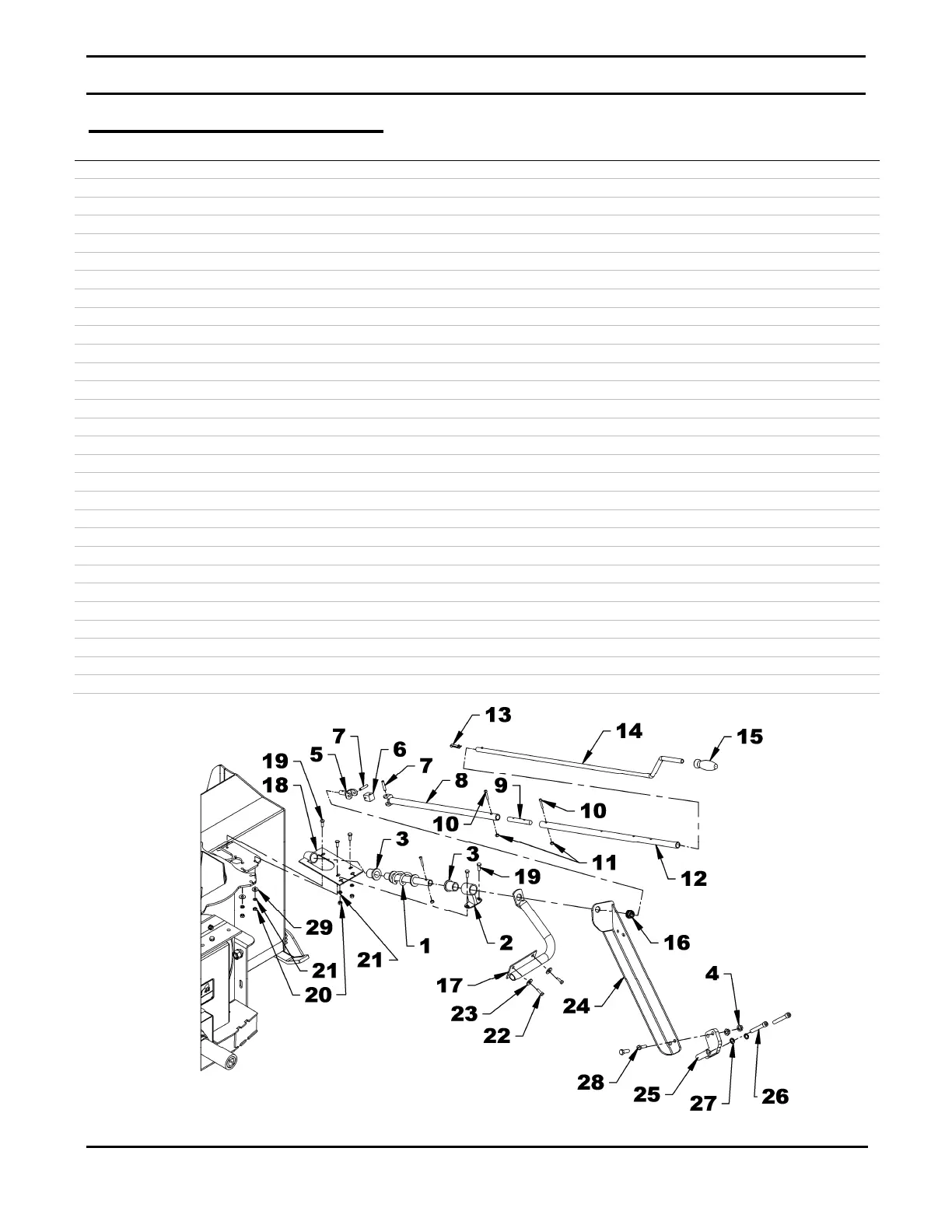

MANUAL CHUTE ROTATION
REF. DESCRIPTION QTY PART # CODE
1 Rotation worm 1 70060-00694 665953
2 Rotation bracket 1 70060-00693 665952
3 Plastic bushing short 1 5/16" 2 70060-01350 657335
4 Serrated flange nut 3/8" NC, PTD 2 70060-00791 0900035
5 Rotation yoke 1 70060-03416 659595
6 Universal block 1 70060-03417 658193
7 Spring pin 1/4" x 1 1/4" 2 77700-02237 1600015
8 Rotation tube 1 70060-03498 659594
9 Coupling rod 1 70060-03228 659597
10
llen socket head cap screw 10-24 x 1" 3 70060-02583 0800009
11 Nylon insert locknut 10-24 3 77700-00991 1000002
12 Rotation tube 1 70060-02297 667227
13 Snap button 1 70001-00568 663600
14 Rotation handle including item 13 1 70060-02292 664007
15 Plastic handle 1 70060-01318 656797
16 Grommet 1 70060-01352 657390
17 Handle support-
ll Tractors - except B2320, B2620 & B2920 1 70060-02280 667223
18 Rotation handle support 1 70060-00692 665951
19 Bolt hex. 1/4"NC x 1" gr.5 PTD 5 75599-01120 0100004
20 Nut hex. 1/4" NC PTD 5 75599-31011 0900001
21 Lockwasher 1/4" PTD 5 75599-33011 1200002
22 Bolt hex. 6mm x 1.00 x 20mm lg PTD 2 70060-02110 0200090
23 Flat washer 1/4" (5/16" hole) PTD 4 75599-32011 1400002
24 Handle support
B2320, B2620 & B2920 Tractors 1 77700-00618 668385
25 Handle support bracket 1 77700-00619 668386
26
llen socket head cap screw 10mm x 1.25 x 80mm lg Gr. 8.8 PTD 2 77700-07144 0800058
27 Lockwasher Ø10 mm, PTD 2 70060-00792 1200019
28 Bolt hex. 3/8" NC x 1 1/4" lg, PTD 2 75599-01325 0100039
29 Flat washer 1/4" PTD 5 75599-32011 1400002
