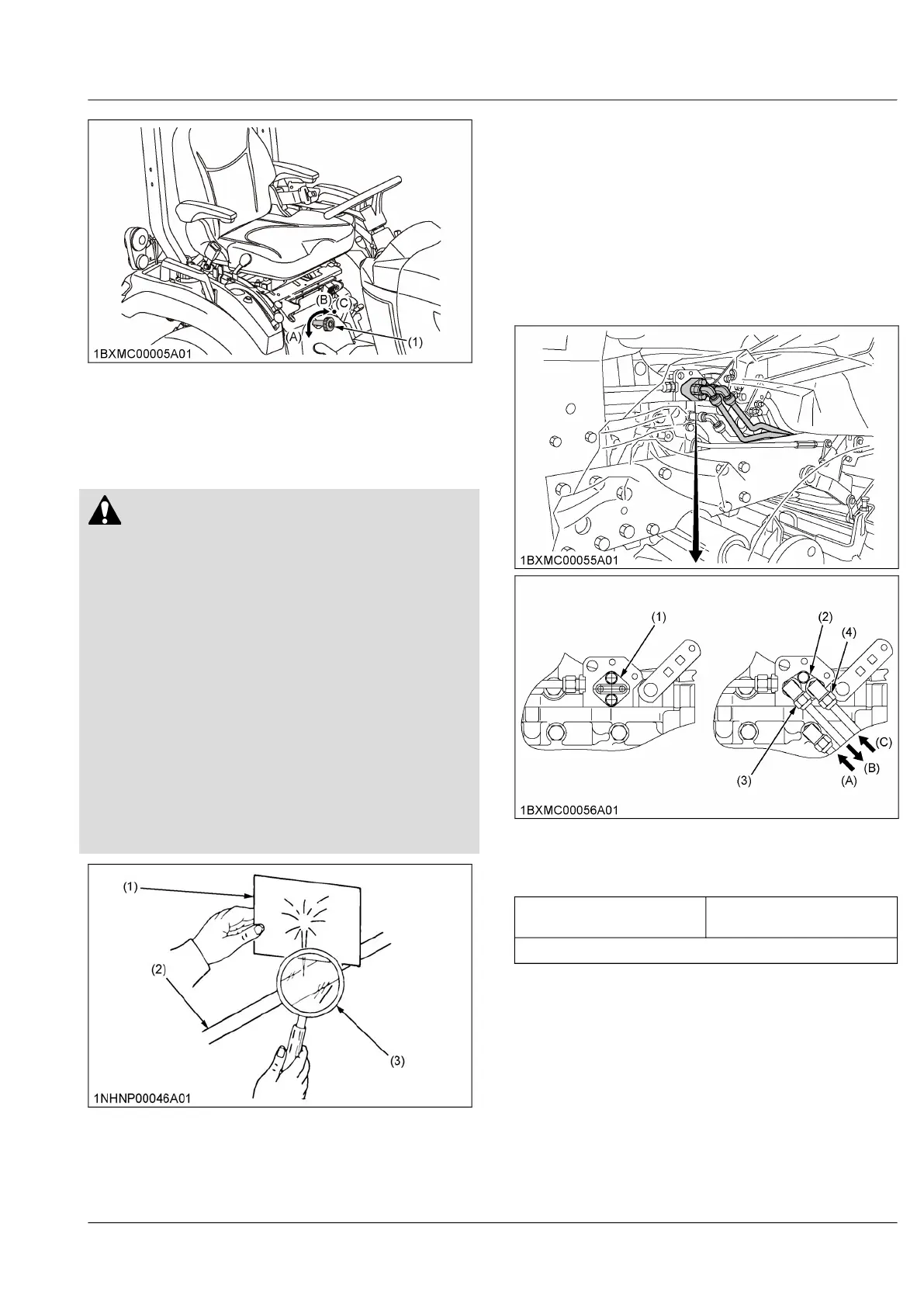

(1) 3-point hitch lowering speed
knob
(A) Fast
(B) Slow
(C) Lock
AUXILIARY HYDRAULICS
A hydraulic outlet attaches to the tractor.
WARNING
To avoid serious injury or death:
• Escaping hydraulic fluid under pressure can
have sufficient force to penetrate skin, which
cause serious personal injury.
Before disconnecting lines, be sure to relieve all
pressure.
• Before applying pressure to the hydraulic
system, be sure all connections are tight, and
that lines, tubes, and hoses are not damaged.
• Fluid escaping from a very small hole can be
almost invisible. Use a piece of cardboard or
wood, rather than hands to search for
suspected leaks.
• If someone gets injured by escaping fluid, see a
doctor at once. Serious infection or allergic
reaction will develop if proper medical
treatment is not administered immediately.
(1) Cardboard
(2) Hydraulic line
(3) Magnifying glass
1. Hydraulic outlet
Hydraulic outlet is useful when adding the hydraulically
operated equipment such as front end loader, front
blade, and so on.
IMPORTANT :
• For the hydraulic outlet, be sure to use the
control valve of the power-beyond-type with the
relief valve. The third line returns to tank for the
operation of the hydraulic block.
(1) Block cover
(2) Block outlet cover (option)
(3) Outlet
(4) Inlet
(A) Return port
(B) To implement (outlet)
(C) From implement (inlet)
Max. flow of outlet
14 L/min
(3.7 U.S.gals./min)
No relief valve in the hydraulic block.
When implement is attached, follow the following
procedure.
1. Remove the block cover.
2. Attach the block outlet cover (option).
The block outlet cover is standard part for KUBOTA
Implements
3. Route the implement inlet, outlet, and return pipes
as shown in the figures.
AUXILIARY HYDRAULICS HYDRAULIC UNIT
