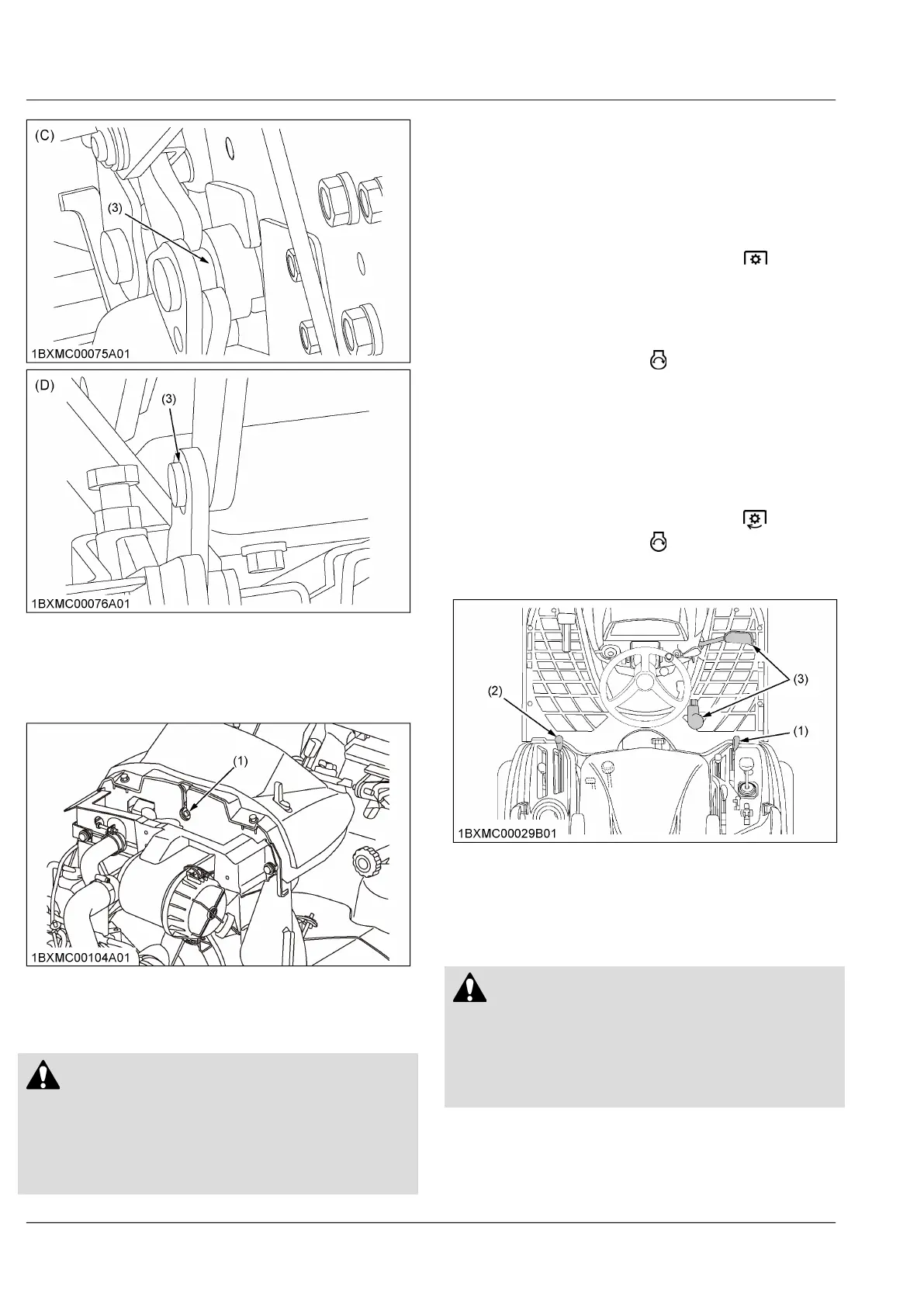

(1) Grease fitting for the speed
control pedal
(2) Battery terminals
(3) Rear link
[A] Figure (A)
[B] Figure (B)
[C] Figure (C)
[D] Figure (D)
Apply grease between stays.
(1) Bonnet lock
2. Checking the engine start system
WARNING
To avoid serious injury or death:
• Do not allow anyone near the tractor while
testing.
• If the tractor does not pass the test, do not
operate the tractor.
Preparation before testing
1. Sit on the operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range-gear-shift-lever to the neutral
“N” position.
4. Check whether the speed-control-pedal is in the
neutral position.
5. Shift the PTO-clutch-lever to the off
position.
[Test 1] Switch for the speed control pedal
1. Make sure that the range-gear-shift-lever is set in
the neutral “N” position.
2. Depress the speed-control-pedal.
3. Turn the key to the start
position.
The engine must not crank. If the engine cranks,
consult your local KUBOTA Dealer.
[Test 2] Switch for the PTO clutch lever
1. Make sure that the range-gear-shift-lever is set in
the neutral “N” position.
2. Make sure that the speed-control-pedal is set in the
neutral position.
3. Shift the PTO-clutch-lever to the on
position.
4. Turn the key to the start
position.
The engine must not crank. If the engine cranks,
consult your local KUBOTA Dealer.
(1) Range gear shift lever (Hi-
Lo)
(2) PTO clutch lever
(3) Speed control pedal
3. Checking the OPC (operator
presence control) system
WARNING
To avoid serious injury or death:
• Do not allow anyone near the tractor while
testing.
• If the tractor does not pass the test, do not
operate the tractor.
Preparation before testing
1. Sit on the operator's seat.
2. Set the parking brake and stop the engine.
PERIODIC SERVICE SERVICE EVERY 50 HOURS
