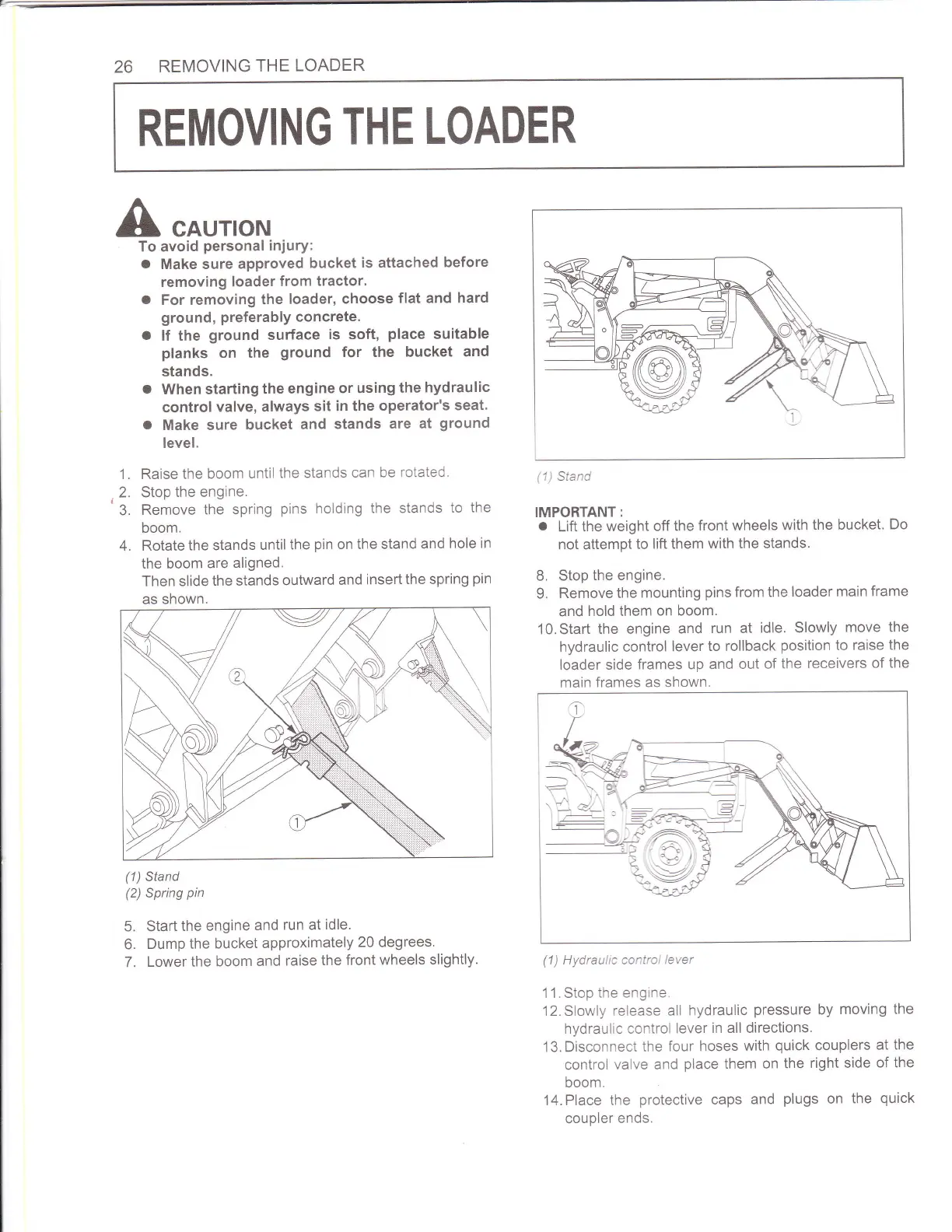

Kubota LA853 User Manual

26
REMOVING
THE
LOADER
REMOVING
THE
LOADER
1.
2.
I
4.
8.
9.
A
cAUtoN
To avoid
personal
injury:
a
Make sure
approved
bucket
is
attached
before
removing
loader
from
tractor.
I
For removing
the
loader, choose
flat and hard
ground,
preferably concrete.
o
lf the
ground
surface
is
soft,
place
suitable
planks
on the
ground for the bucket
and
stands.
o
When starting
the
engine
or using
the
hydraulic
control
valve, always
sit in the
operator's
seat'
a
Make sure
bucket
and
stands
are
at
ground
level.
Raise
the boom
until
the stands
can
be rotated.
Qfnn lha onnine
Remove
the sprrng
pins
holding
the stands
to the
boom.
Rotate
the stands
until
the
pin
on the
stand and
hole
in
the boom
are
aligned.
Then slide
the stands
outward
and
insert
the spring
pin
as
snown.
(1)
Stand
(2)
Spring
pin
5.
Start
the engine
and
run at
idle.
6.
Dump the
bucket
approximately
20 degrees.
7.
Lower the
boom
and
raise
the front
wheels
slightly.
(1)
Stand
IMPORTANT:
o
Lift the
weight off
the
front wheels
with the
bucket.
Do
not attempt
to
lift them
with the stands.
Stop
the engine.
Remove the
mounting
pins
from the
loader
main frame
and
hold them
on boom.
10,Start
the engine
and
run at
idle. Slowly
move the
hydraulic control
lever
to rollback
position
to
raise the
loader side
frames up and
out of
the
receivers
of the
main
frames as shown.
(1)
Hydraulic contral
lever
1 1. Stop
the engine.
12.Slowly
release all
hydraulic
pressure
by
moving
the
hydraulic control
lever
in all directions.
13. Disconnect
the
four hoses
with
quick
couplers
at the
control
valve and
place
them on
the
right side
of the
DOOm.
14.Place the
protective
caps
and
plugs
on
the
quick
couoler
ends.

Kubota LA853 Specifications

General

Bucket Width	1.83 m (72")
Maximum Lift Height	132.3 in
Breakout Force	5445 lbs
Maximum Lift Height to Pivot Pin	132.3 in
Breakout Force at Pivot	5445 lbs
Breakout Force (at pivot pin)	5445 lbs
Hydraulic Pressure	2842 psi
